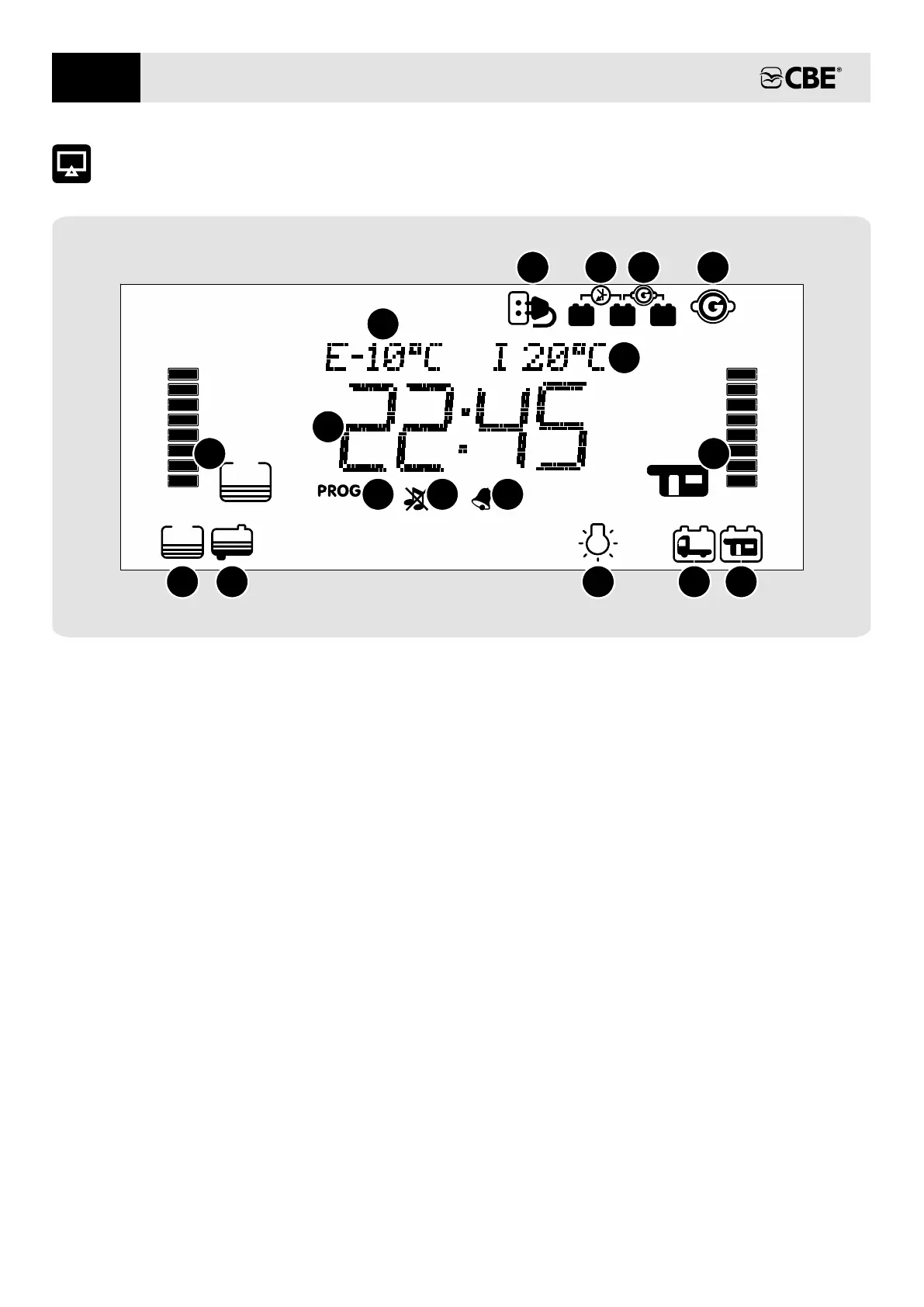

MAIN VISUALIZATIONS
7) Clock digital display.
8) It displays the setting menu.
9) It displays that the tones are off.
3) It displays the battery parallel is on when
engine is on
that
.
4) .It indicates that the engine is on
5) External temperature digital indicator.
2) It displays that the car battery recharging unit
is on.
6) Internal temperature digital indicator.
1) It indicates that the 230V net is connected.
16) It displays that the car battery has run
down.
(B1)
1 )3 It displays that the water tank is empty.fresh
14) It displays that the waste water tank is full.
17) It displays that the leisure battery has run
down.
(B2)
15) It displays the minimum voltage device is on.
10) It displays that alarm clock is set.
1 )1 Fresh water tank status display.
1 )2 “ ”B2 leisure battery status display.
