CBE PC320-ST - Distribution Box Ds300-St; Protection Fuses

4) 20A fuse to give power to the lights group “A”.
3) 10A fuse to give power to the heating/boiler.
5) 20A fuse to give power to the lights group “B”.
6) 30A fuse to give power to 12V AES or 3-way
function fridge. The 3-way function fridge
switches automatically off when the engine is
off.
1) 5A fuse to give power to the awning light.
2) 10A fuse to give power to the water pump.
7) 20A fuse for the auxiliary power supply (solar
regulator), which is directly connected to the
leisure (B2) battery.
AUX
B
1
3 5 7 9
2
4 6 8
-B2 +B2 +B1
1 2 3 4
1 2
1
9
8
16
19
17
11
18
14
15
13
222120
12
10
1 A6
1 B6

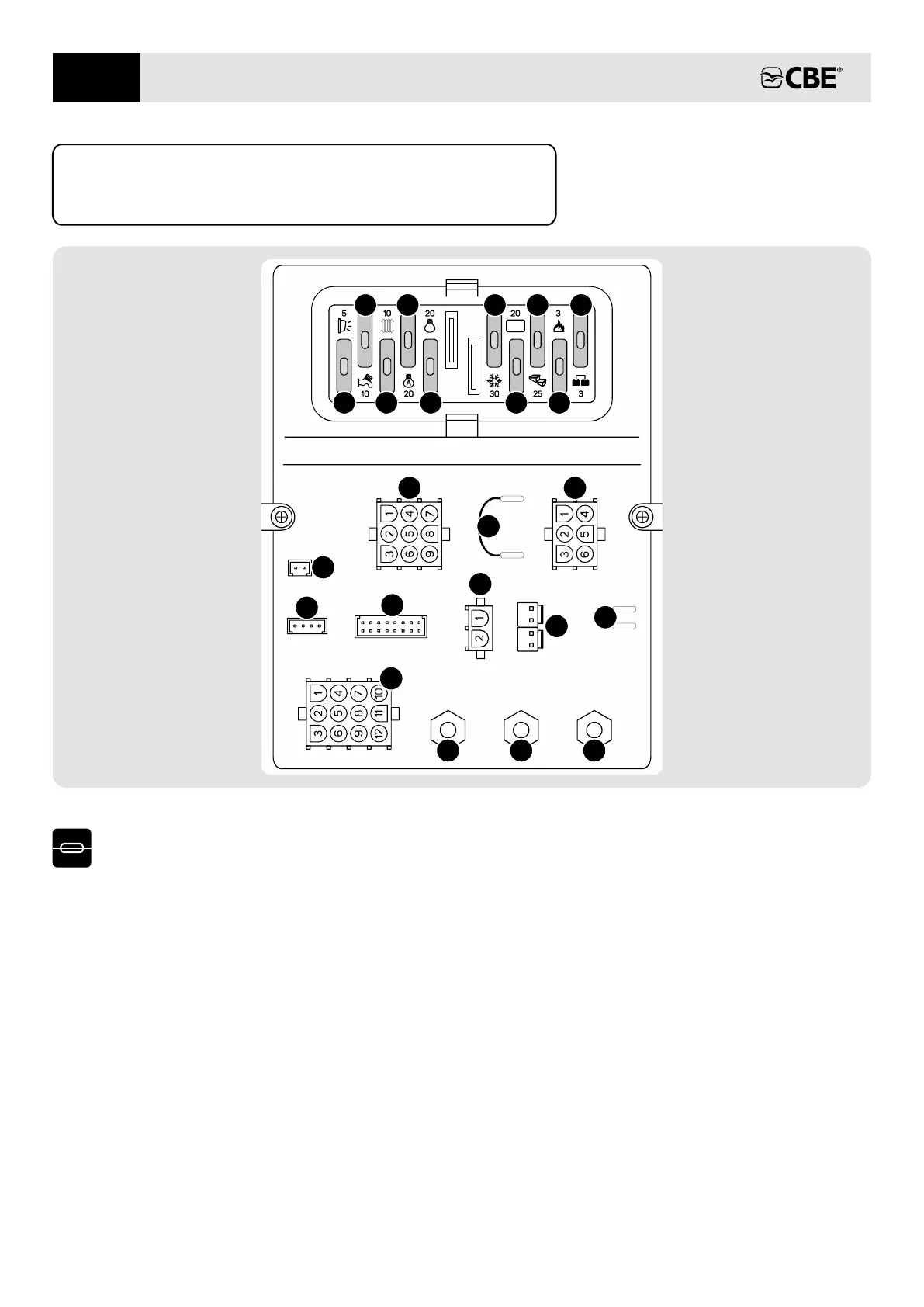

DISTRIBUTION BOX “DS300-ST”
PROTECTION FUSES
12)
etc.)
Simulated output D+ alternator to control the
electrical step, AES refrigerator, electrical
draining valve, coming-back of the electrical
antenna.
8) 25A fuse for the electrical step power supply,
connected directly to the leisure (B2) battery.
9) 3A fuse for the gas power supply (fridge,
kitchen, boiler valve, etc.), connected directly to
the leisure (B2) battery.
10) 3A fuse for OUT D+ simulated exit protection.
11) AES fridge connection; It is a bridge, which
excludes the 3 way function fridge and is used to
connect the AES fridge directly to the B2.
EN
24
