NOTICE TECHNIQUE V2 LIMPIDO-PRO
CCEI
page 9
Top view
Flow
detector
Cell
Discharge
Intake
Side view
Cell
Flow
detector

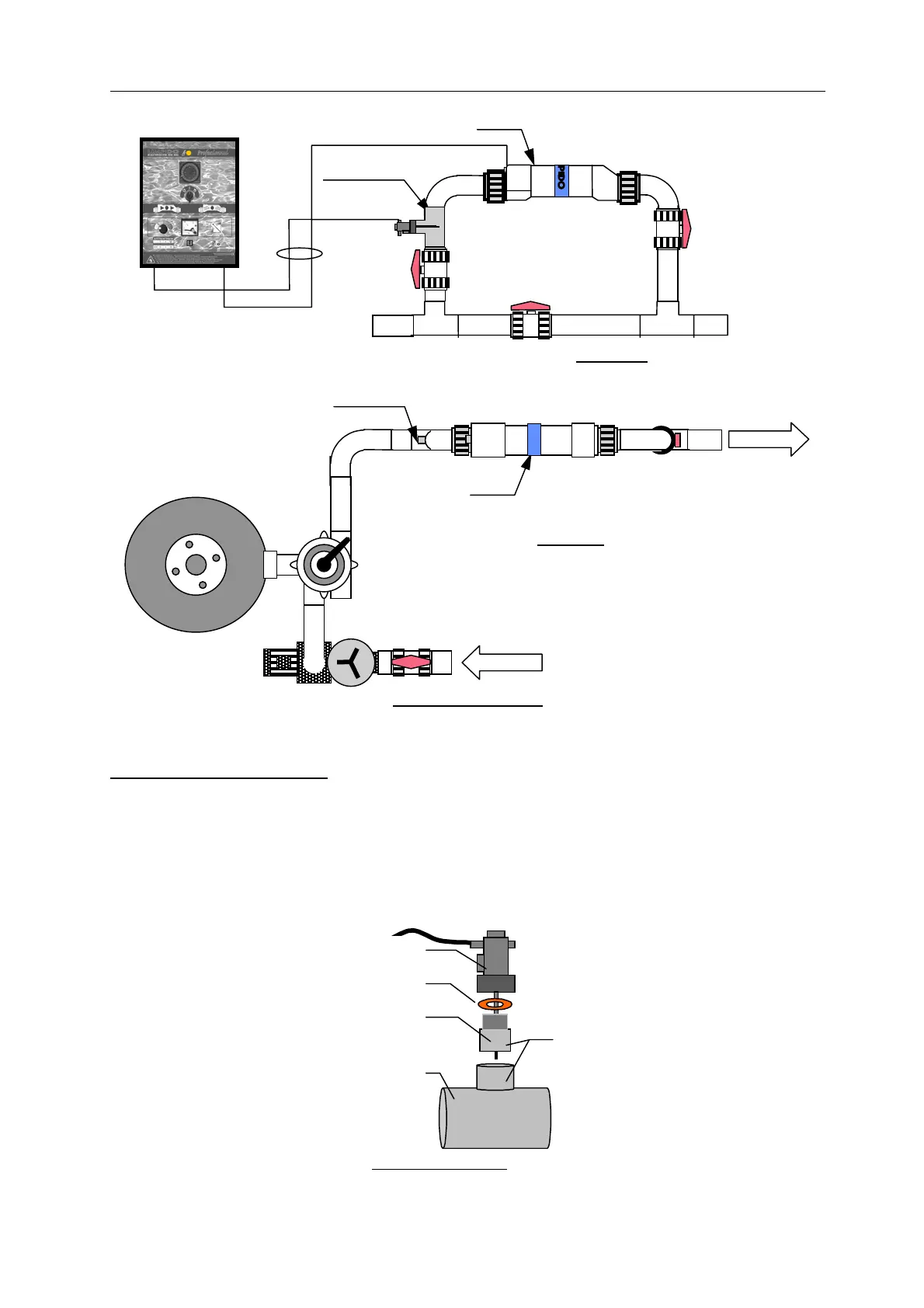

Bypass installation
Installing the flow detector
Glue (PVC glue) the 25/¾" nipple into the 50/50/25 Tee, before installing the flow
detector.
Wait until it is completely dry, and then screw in the detector, fitting the supplied 20/27
seal onto it.
Do not overtighten the detector.
FLOW DETECTOR ASSEMBLY
Flow detector
Seal
25 / ¾" nipple
50/50/25 Tee
To be
glued
