CEBORA S.p.A. 25
5.5
- Power board (20) code 5.602.156.

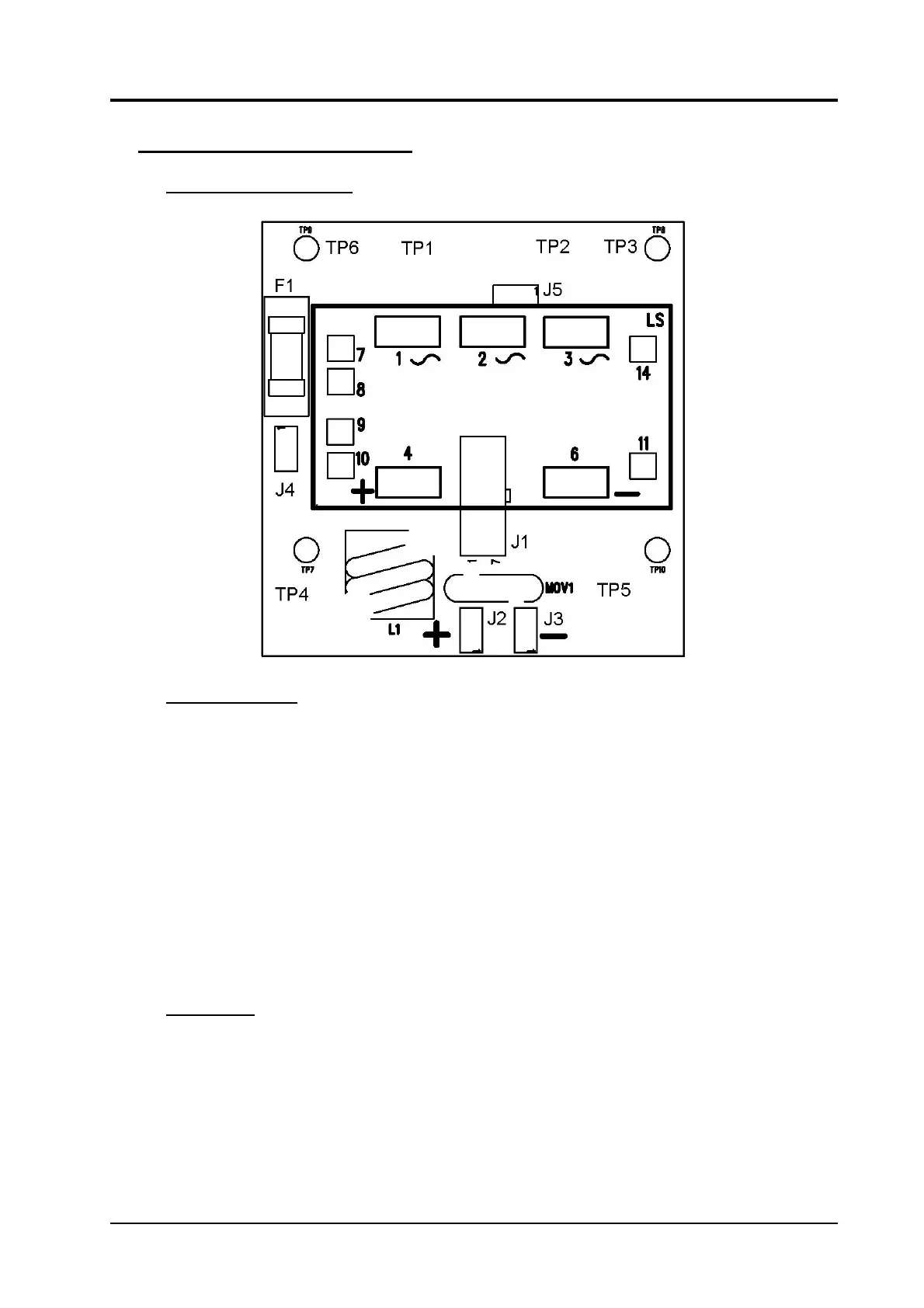

5.5.1 - Topographical drawing.
5.5.2 - Connector table.
Connector Terminals Function
J1 1(G) - 2(K) scr 11 gate command input.
J1 3(G) - 4(K) scr 10 gate command input.
J1 5(G) - 6(K) scr 9 gate command input.
J1 7(G) - 8(K) scr 14 gate command input.
J1 9(G) - 10(K) scr 7 gate command input.
J1 11(G) - 12(K) scr 8 gate command input.
- J2 nozzle potential and resistor (39) (-) power output.
- J3 output for resistor (39).
- J4 - J5 HF board (25) power supply output.
- TP1-TP2-TP3 power supply input.
- TP4 earth potential (+) power output.
- TP5 electrode potential (-) power output.
- TP6 power supply input for HF board (25).
5.5.3 - Fuse table.
Fuse Value Function
F1 2 A power supply for HF board (25).
3.302.167 25/06/04
