5.6
- Setting board (19) code 5.602.159/C.

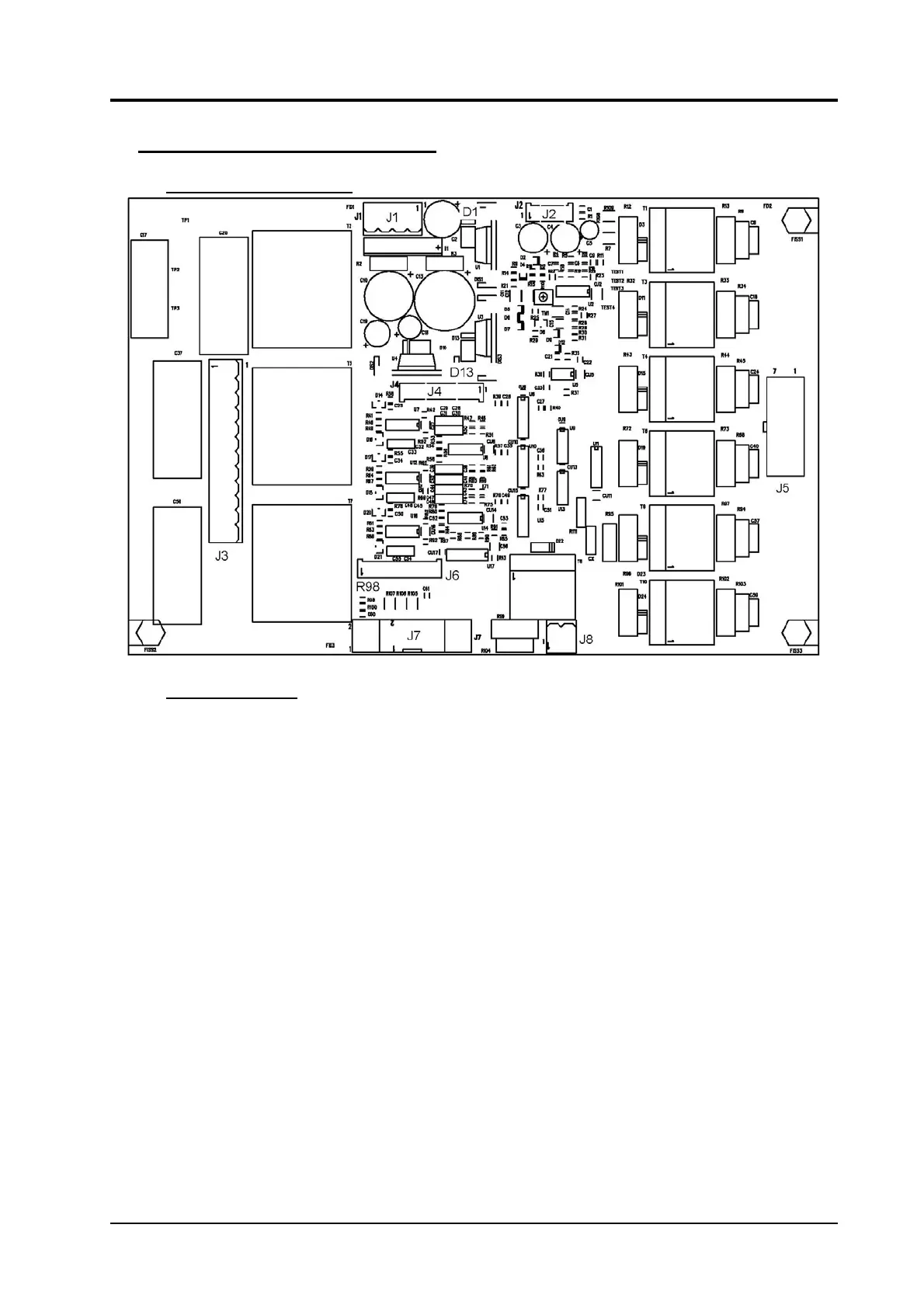

5.6.1 - Topographical drawing.
5.6.2 - Connector table.
Connector Terminals Function
J1 2 - 3 setting board (19) 16 Vac power supply input.
J1 3 - 4 setting board (19) 16 Vac power supply input.
J2 1 current transducer (34) -15 Vdc power supply output.
J2 2 current transducer (34) 0 Vdc power supply output.
J2 3 current transducer (34) +15 Vdc power supply output.
J2 4 power source output current signal input.
J3 1 - 3 mains synchronism (phase 1) signal input.
J3 6 - 8 mains synchronism (phase 2) signal input.
J3 10 - 12 mains synchronism (phase 3) signal input.
J4 - NU.
J5 1(G) - 2(K) scr 11 gate command output.
J5 3(G) - 4(K) scr 10 gate command output.
J5 5(G) - 6(K) scr 9 gate command output.
J5 7(G) - 8(K) scr 14 gate command output.
J5 9(G) - 10(K) scr 7 gate command output.
J5 11(G) - 12(K) scr 8 gate command output.
J6 - NU.
J7 1-2 control board (9) 0 Vdc power supply output.
J7 3 control board (9) +22 Vdc power supply output.
J7 4 control board (9) +5 Vdc power supply output.
J7 5 output current reference signal input.
J7 6 input power supply for scr pulse generator on setting board (19).
J7 7 NU.
J7 8 output current signal output.
J7 9 scr driver enable signal input.
J7 10 HF enable signal input.
J8 A-B HF board (25) command output.
