Cebora PLASMA PROF 80 - Control Board (9) Details

CEBORA S.p.A. 28
5.8
- HF board (25) code 5.602.155.

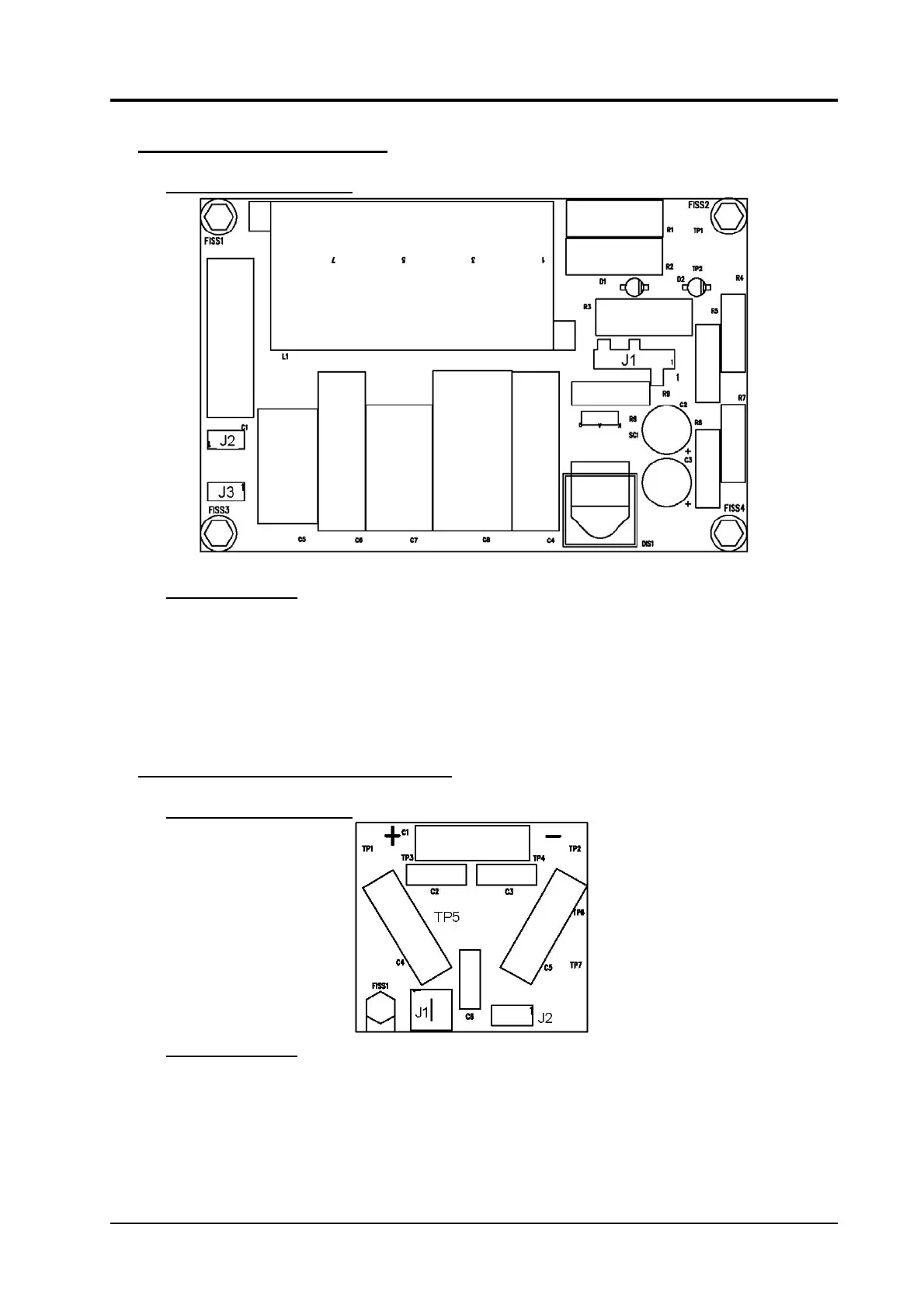

5.8.1 - Topographical drawing.
5.8.2 - Connector table.
Connector Terminals Function
J1 1 - 2 HF board (25) power supply input.
J1 4 - 5 HF board (25) command input.
- J2 - J3 output for HF transformer (23).
5.9
- HF-filter board (22) code 5.602.165/D.
5.9.1 - Topographical drawing.
5.9.2 - Connector table.
Connector Terminals Function
J1 A - B torch nozzle voltage output.
- J2 torch nozzle voltage input.
- TP3 connection to earth potential (workpiece).
- TP4 connection to electrode potential (upstream from the HF transformer (23)).
- TP5 connection to earth.
