ENGLISH
22
Installation and control elements
• CEDIMA
®
• Technical Documentation • All rights reserved as per ISO 16016 • Subject to modications due to progressive development •

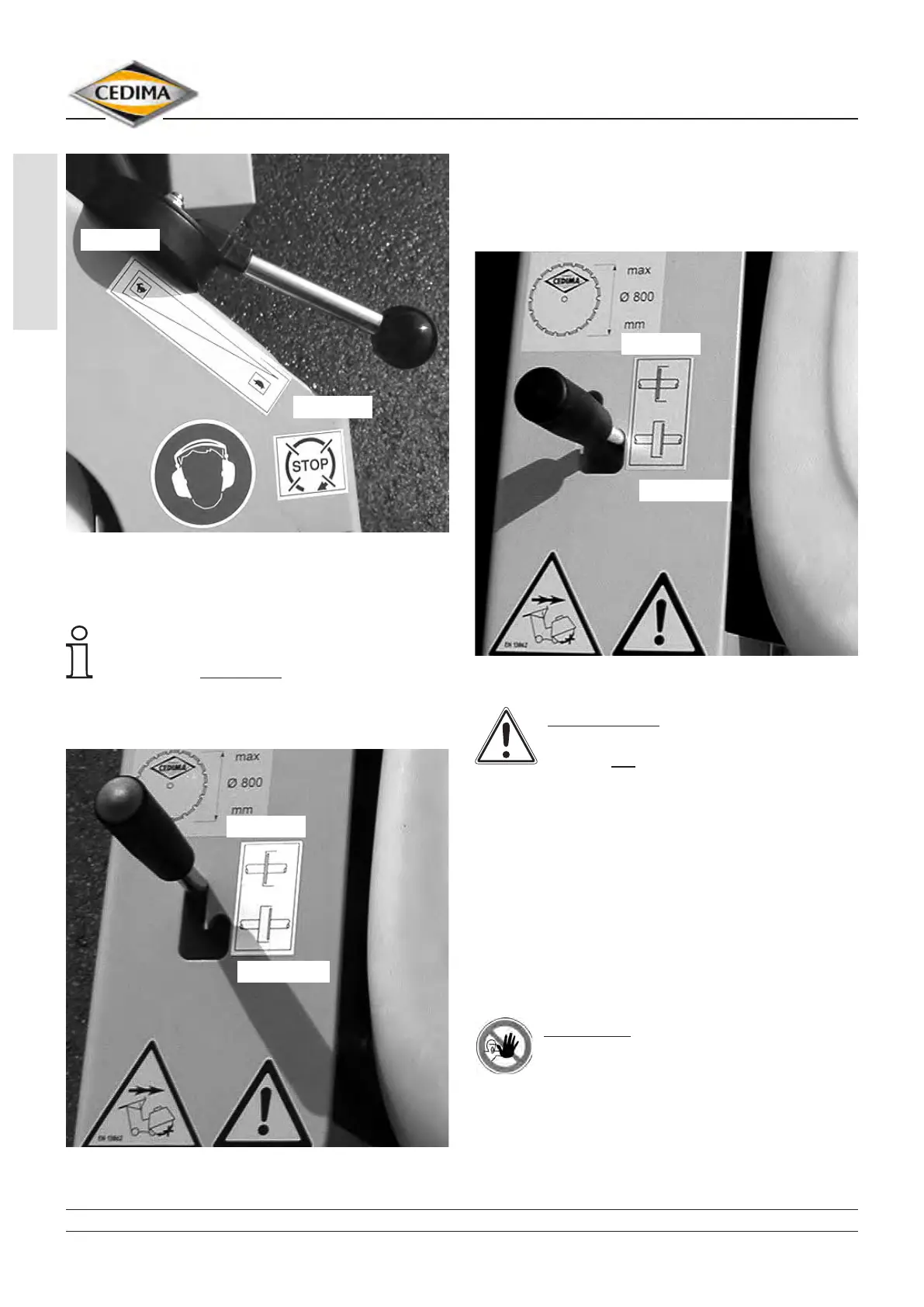

Motor speed lever (in idle/OFF-position) Fig. 4.12
idle, OFF
full load
5. Throw in feed gear by means of the feed clutch lever
(position ON/Engaged) (g. 4.8 and 4.13).
With the clutch lever in position “Engaged” the
feed gear serves also as a parking brake with joint
cutter’s motor switched off!
6. Adjust the feed direction and speed with the feed
lever (g. 4.11).
Feed clutch lever “Engaged” Fig. 4.13
engaged
disengaged
7. For stopping the feed drive move the feed lever in
the centre / neutral position (g. 4.11).
8. Disengage the feed gear by means of the feed clutch
lever (position OFF/disengaged) (g. 4.8 and 4.14).
disengaged
engaged
Feed clutch lever “Disengaged” Fig. 4.14
ATTENTION!
With disengaged feed the joint cutter’s
brake is not applied.
Disengage the clutch lever (position OFF/disengaged)
in order to move the joint cutter by its push rods.
4.3.4 CF-2116 D cutting depth indicator
On the right side of the CF-2116 D there is in front of
the rear wheel the adjustable cutting depth indicator
with cutting depth graduation (g. 4.15).
DANGER!
Danger of injury! Adjust the cutting depth
indicator only when the joint cutter’s
motor is shut down and the saw blade does not
rotate!
