4.1 To be checked on delivery
Please check rst the completeness and intactness of
your CEDIMA
®
joint cutter CF-2116 D. You will nd the
scope of the delivery in the chapter 1.3

.
The CEDIMA
®
joint cutter CF-2116 can put into opera-
tion without any special effort and without any extra
installation procedures! However, when setting up and
operating the machine, it is important to observe the fol-
lowing notes as well as the general safety regulations
and instructions for operating the engine!
4.2 To be strictly observed before
the rst use
ATTENTION!
Read the operational manual carefully !
Read and pay attention to the operating
manual and safety notes before using the joint cutter!
Read and pay attention to the delivered operating
manual of the engine manufacturer! All information
necessary for operating the engine can be found in the
original engine operating manual!
DANGER!
There is a risk of injury by maintenance
and installation work on the joint cutter!
Switch off the engine of the joint cutter, secure the
joint cutter against unintentional start and rolling
away!
ATTENTION!
The joint cutter is delivered without fuel
(diesel) but with engine oil, hydraulic oil,
feed gear oil and a full battery!
Before starting the operation, ll up the fuel tank!
Check the level of the engine oil, hydraulic oil, feed
gear oil (hydrostatic, mechanical part) and also the
battery according to the operating manual of the joint
cutter, the engine and the battery documentation!
4.2.1 Checking the engine oil level
of the drive motor
1. Put the CF-2116 D motor frame (without saw blade)
by means of the lifting/lowering lever (as per section
4.3) in a horizontal position. Pull the oil dipstick (g.
4.1) at the switched-off motor!
Check the engine oil level if possible while still
cold (before work) or at maximum 3 min. after
warm-up!

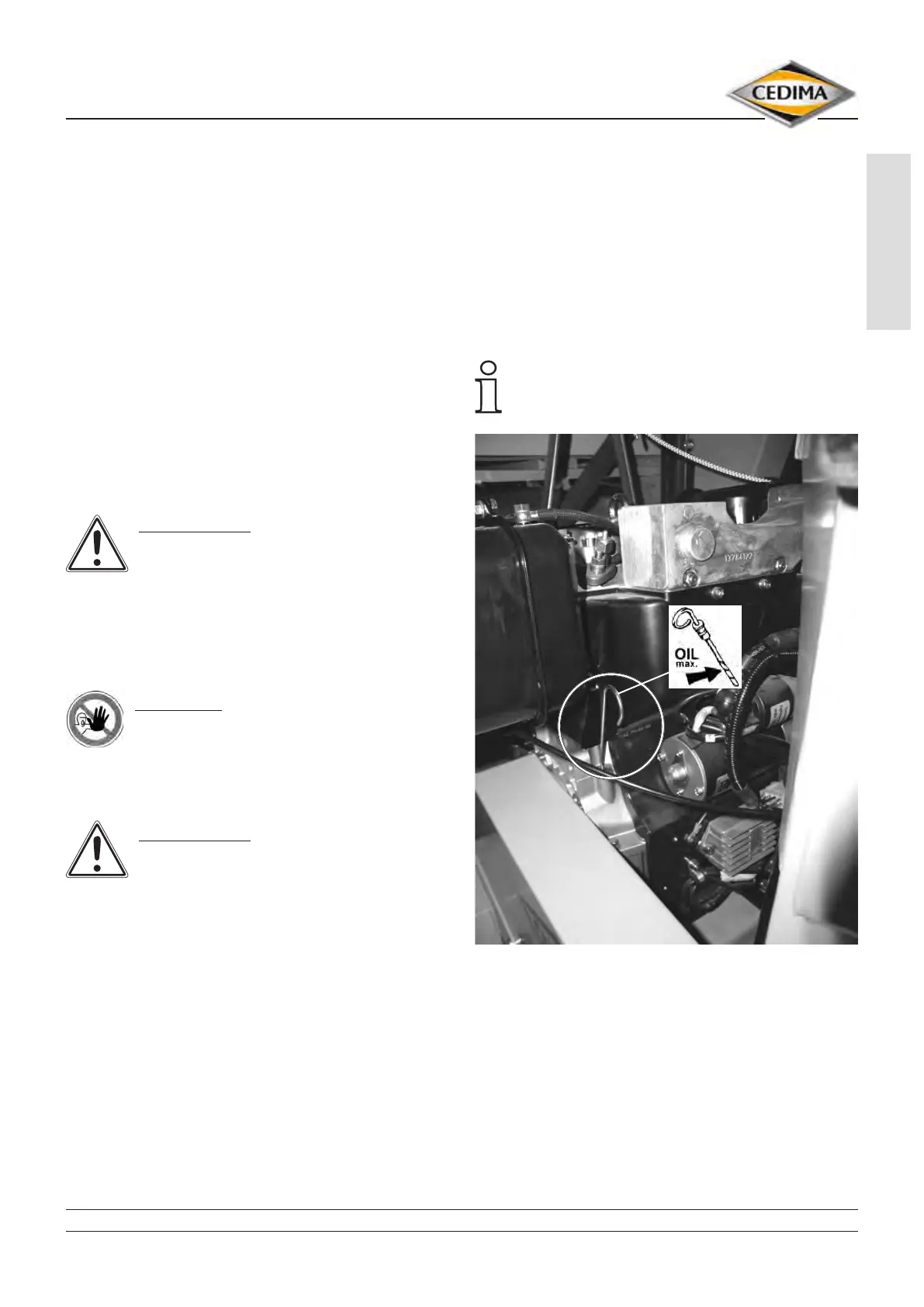

CF-2216 D, motor oil dipstick Fig. 4.1
2. If the oil level is too low ll in recommended oil (refer
to motor operating manual and chapter 1 or section
6.7) via the ller plug up to the mark of the oil dipstick
(g. 4.2).
