Cedima CF-2116 D - CF-2116 D Control Elements, Control Panel in Front; CF-2116 D Motor Control Box; CF-2116 D Feed Control Elements

ENGLISH
21
Installation and control elements
• CEDIMA
®
• Technical Documentation • All rights reserved as per ISO 16016 • Subject to modications due to progressive development •

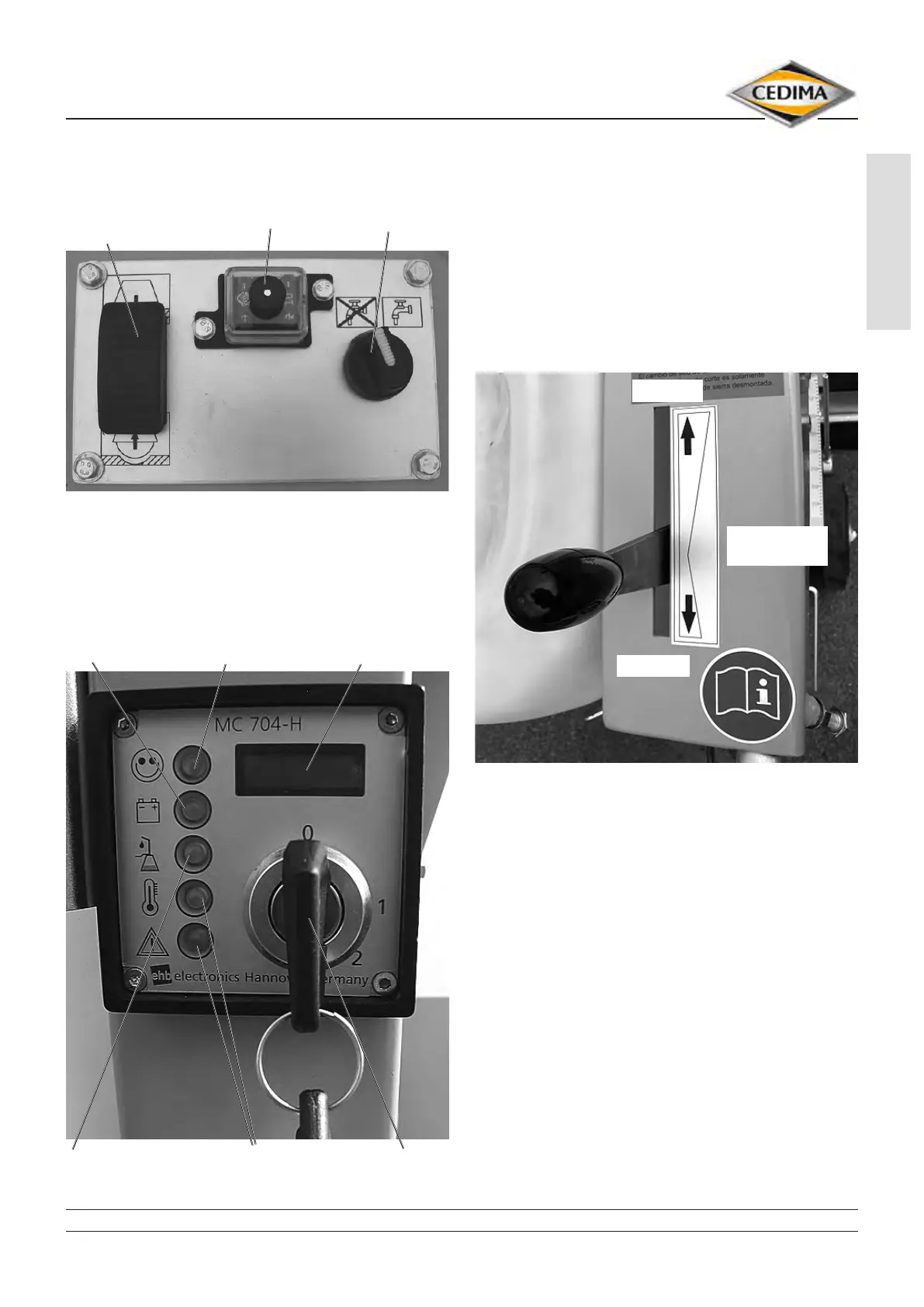

4.3.1 CF-2116 D control elements,
control panel in front
Hydraulic cutting depth adjustment and water pump Fig. 4.9
lowering / lifting fuse box water pump
of cutting shaft ON / OFF
4.3.2 CF-2116 D motor control box
Motor control box with operating hour meter Fig. 4.10
battery operation operating hour meter
oil pressure without function key switch
4.3.3 CF-2116 D feed control elements
The CF-2116 D is equipped with a hydrostatic travel /
feed drive, enabling to displace the joint cutter freely
and also during cutting. Especially for long and/or deep
cuts the feed drive provides a steady feed and eases
the operator.
Operate the feed drive as follows:
1. Start the CF-2116 D motor (as per section 4.4.1).
2. Move the feed lever in the centre/neutral position (g.
4.8 and 4.11).
Feed lever in centre/neutral position Fig. 4.11
forward
backward
centre/neutral
position
3. Bring the CF-2116 D motor with the motor speed
level to rated speed (g. 4.12).
4a. For cutting lower the saw blade to the required
cutting depth (refer to section 4.3.1).
4b. For travelling raise the saw blade completely out of
the cut (refer to section 4.3.1).
