Hold the screw of the tensioning roll (with a
suitable wrench) and loosen the clamping screw
only until you can move the tensioning roll of the
feed V-belt.
3. For tensioning the feed V-belt push the tensioning roll
downwards against the V-belt (gs. 6.7 and 6.8).
4. Re-tighten the clamping nut at the tensioning roll of
the feed V-belt (g. 6.8).
5. Check the V-belt tension as described in section
4.2.6.
6. Mount the V-belt protective cover (section 6.6.3).
7. Re-tighten all loosened screws.
6.6.5 Replacing the feed V-belt
The feed V-belt should or has to be replaced when fur-
ther tensioning is not possible any more and when the
V-belt is damaged (frayed, porous, …).
For replacing feed V-belt proceed as follows:
1. Remove the V-belt protective cover (section 6.6.3
and g. 6.7).
2. Loosen the clamping nut from the V-belt tensioning
roll and release tension from the feed V-belt (g. 6.8).
Before removing and applying the feed V-belt you
have to remove rst the cutting shaft V-belts from
the motor V-belt pulleys (refer to section 6.6.3).
3. Remove the old feed V-belt from the motor and feed
gear pulley (g. 6.7).
First remove the feed V-belt from the motor pulley
to avoid damages to the feed gear ventilator.
DANGER!
Danger of squeezing! Take care of your
hands and ngers when changing the
V-belts.
ATTENTION!
Do not use any sharp or pointed objects
for mounting the V-belts.
Thus you prevent damages that might destroy the
V-belts.
4. Apply the new feed V-belt.
Apply the feed V-belt rst on the feed gear pulley
to avoid damage to the feed gear ventilator.
5. Re-mount the cutting shaft V-belts (as per section
6.6.3).
6. Tension the new feed V-belt (as per section 6.6.4).
ATTENTION!
Do not overstretch the V-belts (1.5 %
wear limit). This might destroy the gear
bearings and motor bearings.
7. Check the tension of the feed V-belt (refer to section
4.2.6).
8. Mount the V-belt protective cover (section 6.6.3).
9. Re-tighten all loosened screws.
ATTENTION!
Check the tension of the V-belt after
10 operating hours!
After commissioning the machine or after replacing the
V-belt, it has to be checked after 10 operating hours
and, if necessary, to be re-tensioned.
6.6.6 Checking/changing of oil lling
of hydrostatic feed gear
DANGER!
Maintenance works must only be carried
out after the joint cutter has been shut
down.
Check the lling level and change the feed gear oil as
per maintenance table 6.5. The hydrostatic feed gear is
built in the lower left part of the superstructure box and
accessible after removal of the water tank (g. 6.9).

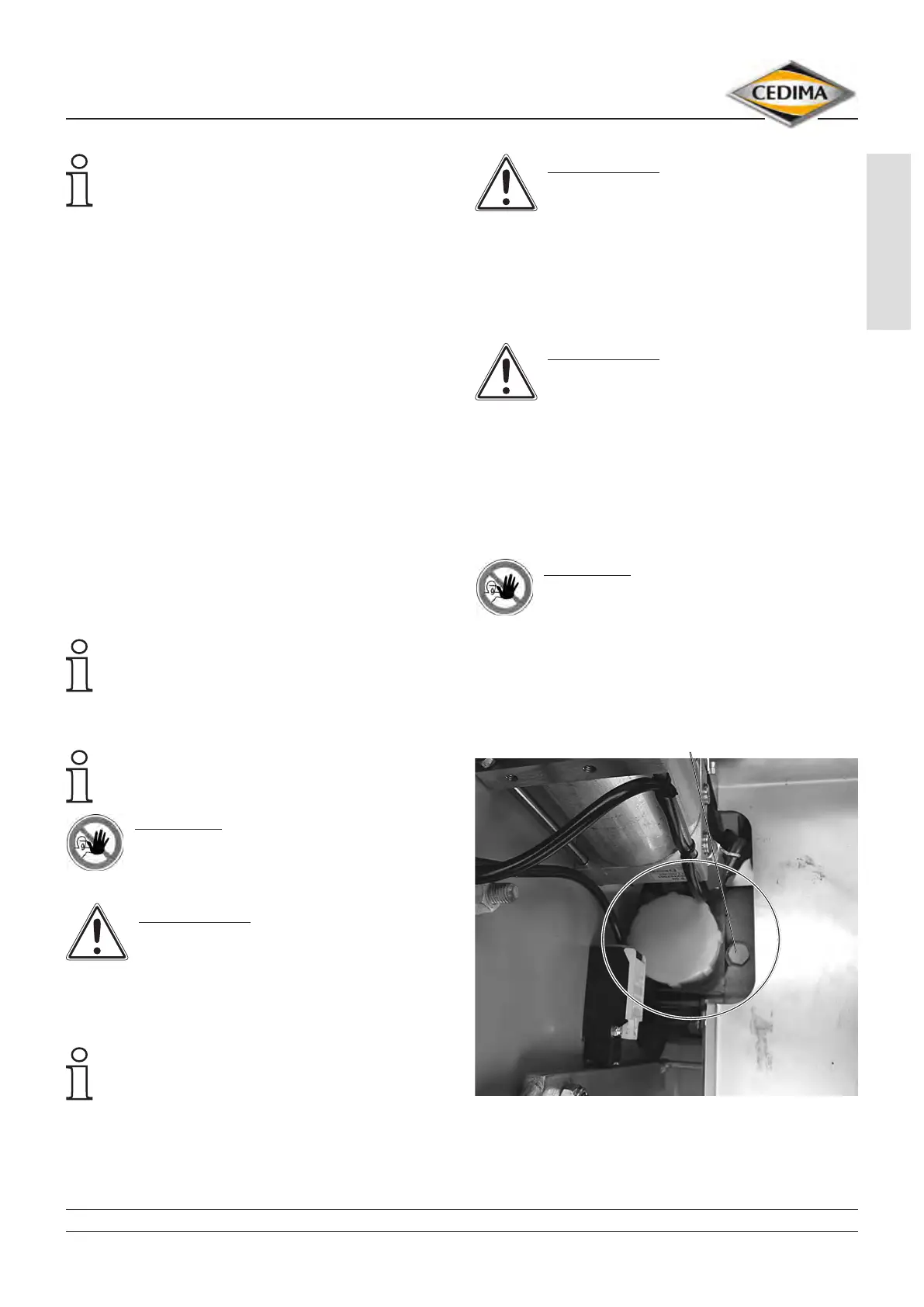

CF-2116 D, hydrostatic feed gear (water tank removed) Fig. 6.9
lling/bleeder screw
