General information on the product
• CEDIMA
®
• Technical Documentation • All rights reserved as per ISO 16016 • Subject to modications due to progressive development •
The CF-2116 D can be operated with water supplied
under pressure or by means of a self-suctioning water
pump (out of a 35 l tank carried with the machine).
For cutting we recommend CEDIMA
®
diamond saw
blades that guarantee a protection of the joint cutter
due to their cutting performance and smooth running
and that are thus considered to be the most important
component of the entire cutting unit.
1.2 Features of the CF-2116 D
• Compact construction
• Motor speed adjustment via bowden cable.
• Double-sided blade receptacle (in turn)
• V-belt drive to cutting shaft (motor protection by slip-
ping clutch effect)
• Hydrostatic (hitchless) feed
• Removable 35 l water tank
• Alternative connection of water supplied under pres-
sure
• Adjustable cutting depth indicator
• Blade guard, cutting shaft cover and ange cover to
be used on both sides
• Hinged front blade guard to cut directly to the wall
• Multiply (innitely) adjustable push rods
• Adjustable front and rear pointers
• Hydraulic cutting depth adjustment and lifting of cut-
ting shaft with adjustable lowering speed
• Electro-hydraulic quick-lifting
• Electric starting device
• Electric starting prevention
• Electric water pump
• Operating hour meter
1.3 Items supplied
with the machine
1 x operating manual CF-2116 D
1 x operating manual drive motor
1 x spare parts list drive motor
1 x set of tools:
1 x Open-ended spanner size 17
1 x Allen key size 10

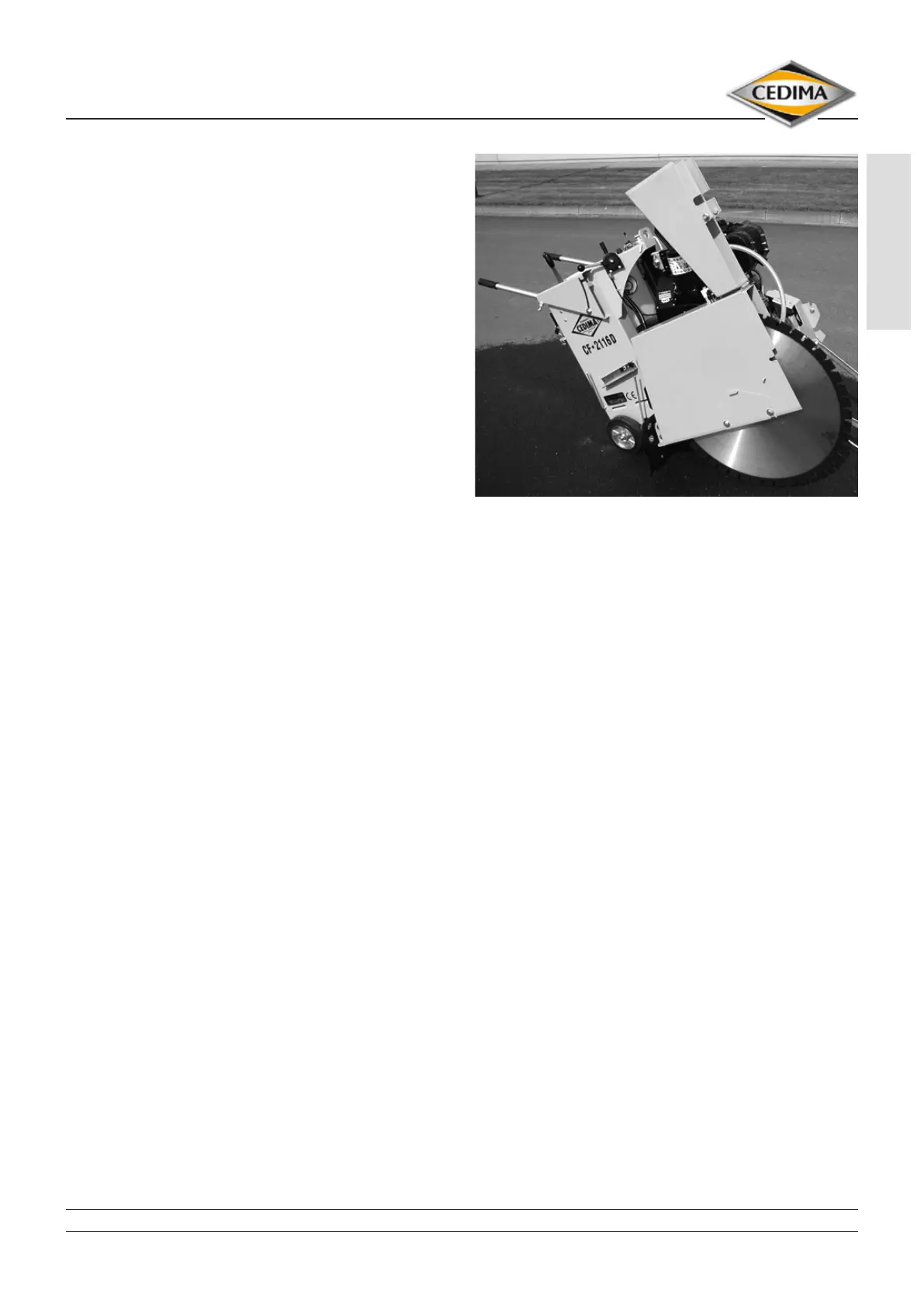

CF-2116 D with blade guard opened upwards Fig. 1.2
