5.3.4. EXAMINATION SUMMARY PAGE
This page can be viewed only if the device is ready. This page shows:
- the various X-ray technique factors correctly set and an icon for the relevant setting mode (AUTOMATIC),
(PRESET) or (CUSTOM);
- the examination type selected;
- icons at the bottom of the page with which you can redefine the projections and the anatomic region involved in
the examination.
5.3.5. DEVICES FOR EDENTULOUS PATIENTS (OPTIONAL)
In case of edentulous patients in PAN, DENT, SIN, DTS or CBCT examinations which require the bite block, use the
supplied disposable soft insert as follows:
1 - remove the soft bite from the matrix (Fig. 1)
2 - apply the disposable infection control sheath on the bite block (Fig. 2)
3 - insert the soft bite into the bite as indicated in the figure (Fig. 3)
4 - push the bite until the block of material is ejected (Fig. 4)
Always apply the disposable infection control sheath on the bite block before inserting the soft bite.
Carry out the normal positioning procedure for the examination making the patient press the soft insert centre with
mucous membranes.

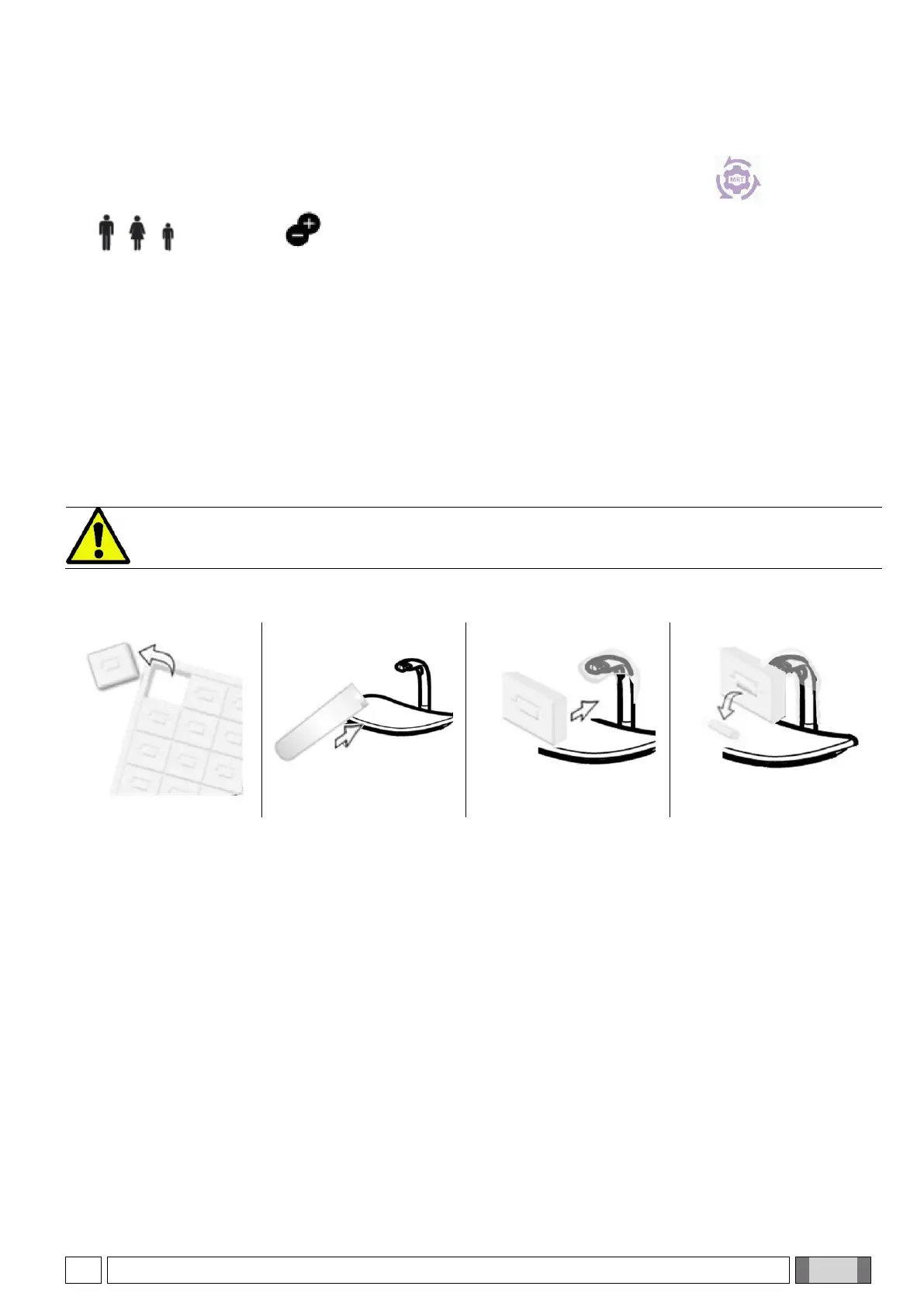

Fig. 1
Fig. 2
Fig. 3
Fig. 4
