USB Connector
There is one USB connector used on the A2210 server platform, the Molex 87531, shown in Figure 29. The
pin assignments for the USB connector are listed in Table 7.

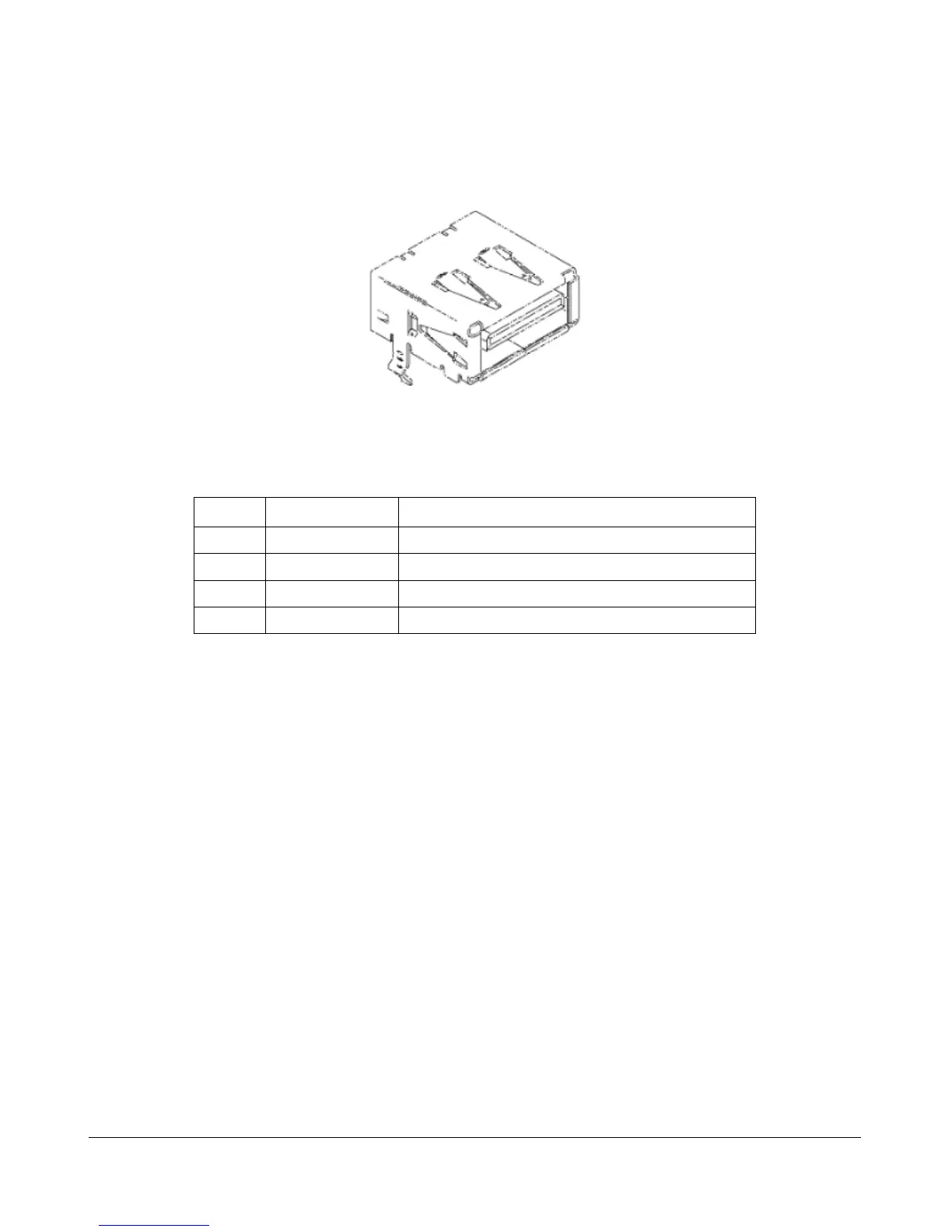

Figure 29. USB Connector
Table 7. USB Connector Pin Assignments
Pin Name Description
1 VCC Power
2 DATA- USB data -
3 DATA+ USB data +
4 GND Ground
