Page 10
TWIN MG 092223
REAR BLOWER ORIENTATION INSTRUCTIONS
1. The Magnum evaporator unit is shipped with the blower and supply panel oriented to the right. If this is your
desired orientation, proceed to the installation instructions on page 23.

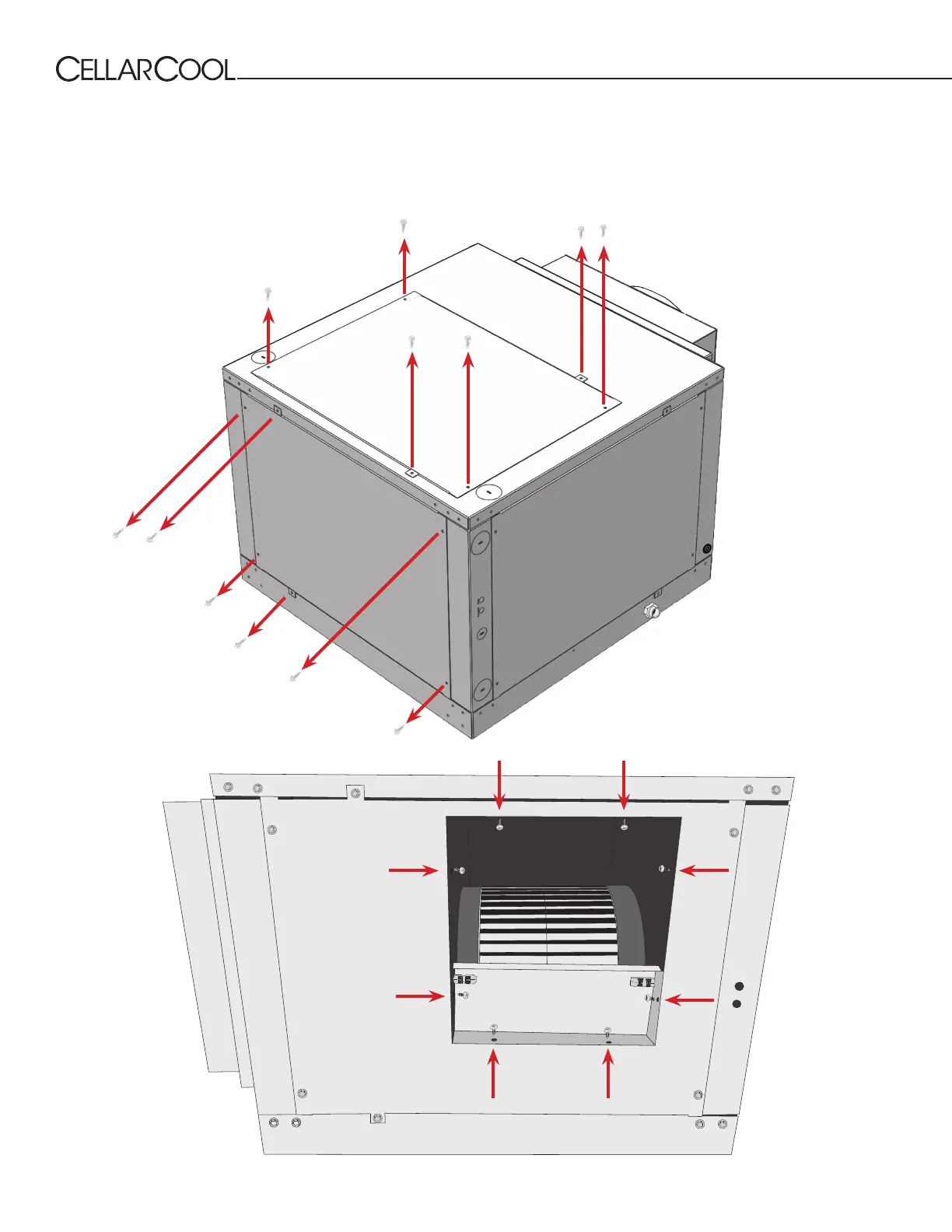

2. To reorient the blower, rst remove the access panels on the rear and top of the unit.
3. Next, remove the eight (8) screws securing the blower to the supply panel.
