Magnum Series

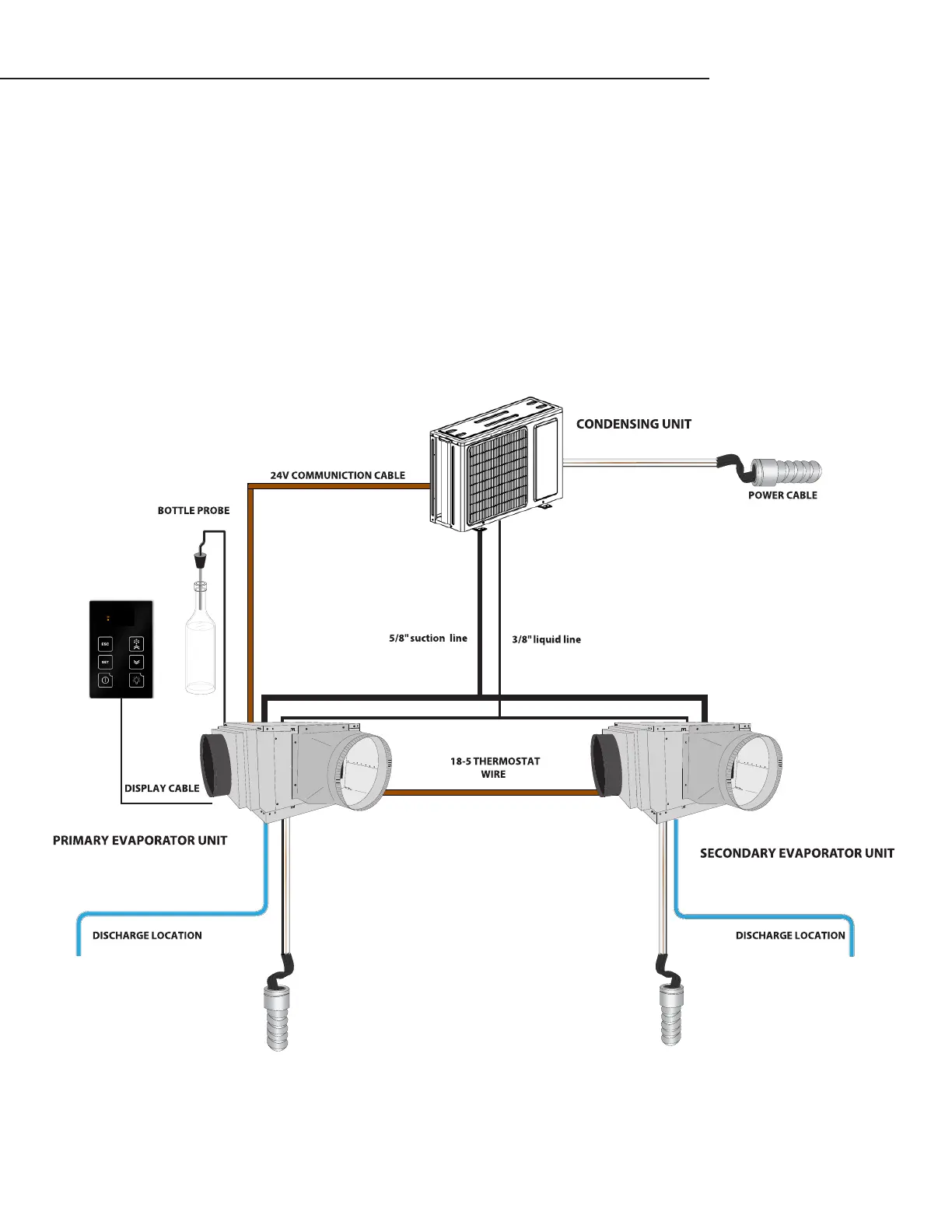

ITEMS TO ROUTE BEFORE INSTALLING THE EVAPORATOR UNIT
1. Route the line set from the condensing unit to the desired evaporator unit installation location.
2. Route the display cable from the desired location to the evaporator installation location.
3. Route the bottle probe cable from the desired thermostat bottle location to the evaporator unit installation location.
4. Route the drain line from a proper discharge location to the evaporator unit installation location.
5. Route the power cable wiring to the evaporator unit installation location.
ITEMS TO ROUTE
5/8” suction line
3/8” liquid line 3/8” liquid line
5/8” suction line
55°
F
NOTE: Ensure equal distance
after the t-tting for each
evaporator unit.
