TWIN MG 092223
Upon receiving your CellarCool unit:
• Use caution when lifting and check the package for damage.
• Lift only at the designated hand-hold locations on the shipping container, or fully support the unit from underneath. A
shipment may include one or more boxes containing accessories.
• Inspect the packaging for any obvious signs of damage or mishandling before opening the container.
• Note any discrepancies or visual damage on the bill of lading before signing.
• Sit unit upright for 24 hours.
• Review the packing slip to verify contents.
• Check the model number to ensure it is correct.
• Check that all factory options ordered are listed.
If any items listed on the packing slip do not match your order information,
contact CellarCool Customer Service immediately.
RECEIVING & INSPECTING THE SYSTEM
NOTE: CellarCool units are manufactured in the
USA and tested prior to shipment.
Please leave the unit in its original box until you are ready for installation.
This will allow you to move the product safely without damaging it.
When you are ready to remove the product from the box, refer to the
installation instructions.
Verify that the pallet you’ve received contains the following:
(2) Evaporator box (2) Square-to-round plenum box
(1) Condensing unit box

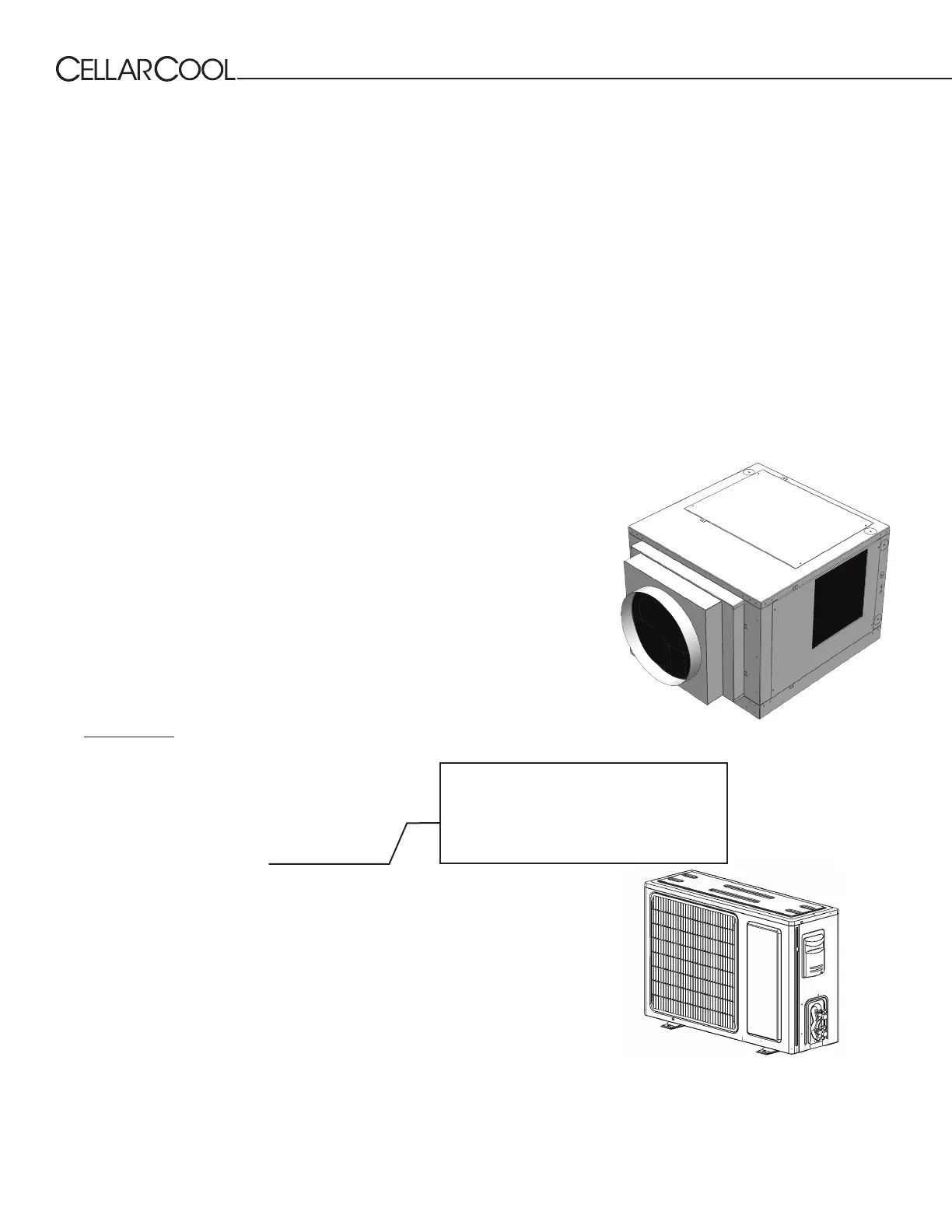

Pictured: SS24000 condensing unit
Pictured: Magnum evaporator unit
1. Verify that each evaporator unit (fan coil unit) box contains the following:
• (1) Magnum evaporator unit
• (1) Foam fan bracket
• (2) Rubber grommets (⁄” ID)
• (1) Strip of cork tape (1”)
• (2) ½” nylon plugs
• (1) Flush mount template
• (18) Antimicrobial pan tabs
• (1) Drain line brush
• 6-1 3/4”PVC male adapter
2. Verify that the condensing unit box contains the following:
• (1) Magnum SS18000 condensing unit OR
(1) Magnum SS24000 condensing unit (depending on unit ordered)
3. Verify that each square-to-round plenum box contains the following:
• (1) Square-to-round plenum
• (8) #10-16 x ½” steel drilling screws
Accessory Kit Bag:
KDT Unit Only
• Flush mount template
• KDT Plus display cable (50 feet)
• KDT Plus wall mount bracket
• assembly
• KDT Plus ush mount bracket assembly
• KDT Plus display assembly
• KDT Plus Hardware bag
Documentation Bag:
• Magnum H.E. owner’s manual
• R-134a H.E split system
• warranty checklist
KDT Plus Hardware Bag:
• (1) 11/16” OD Grommet
• (2) 1⁄2” nylon hole plugs
• (4) #6 x 1” PHP zinc Type A screws
• (4) 8-10 x 7/8” Plastic Screw Anchors
TIP: Save your box and all packaging materials. They provide the only safe means of transporting/shipping the unit.
To Next Page
