Magnum Series

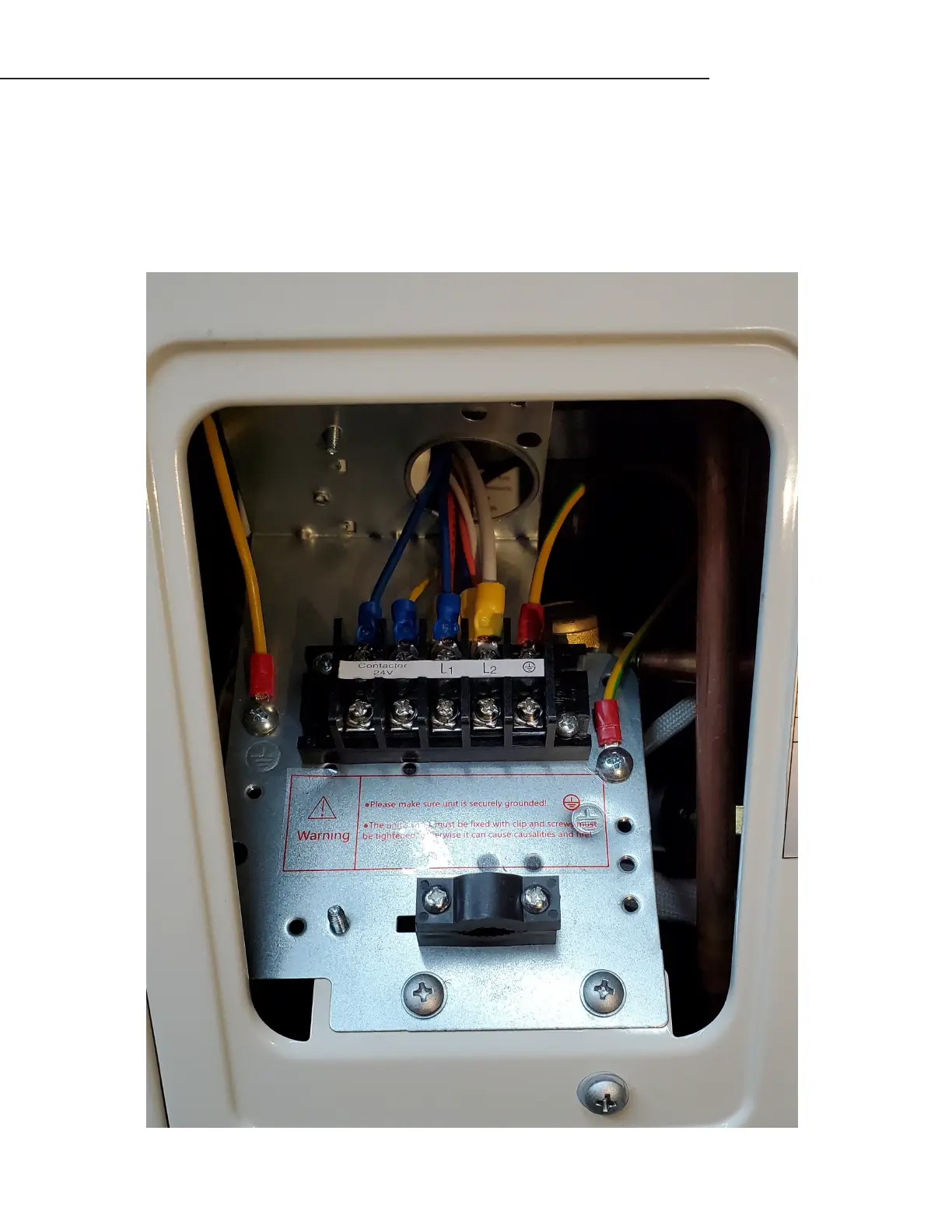

CONDENSING UNIT WIRING
1. Locate or install an electrical disconnect box near the outdoor condensing unit per electrical code.
2. Remove electrical cover plate from unit.
3. Connect wiring for: 24V contactor (communication cable), L1, L2, and Ground as identied by terminal block label.
4. Leave the circuit breaker o or remove disconnect until unit is ready to charge.
