www.cellarcool.com | Page 13
Magnum Series
TOP BLOWER ORIENTATION INSTRUCTIONS

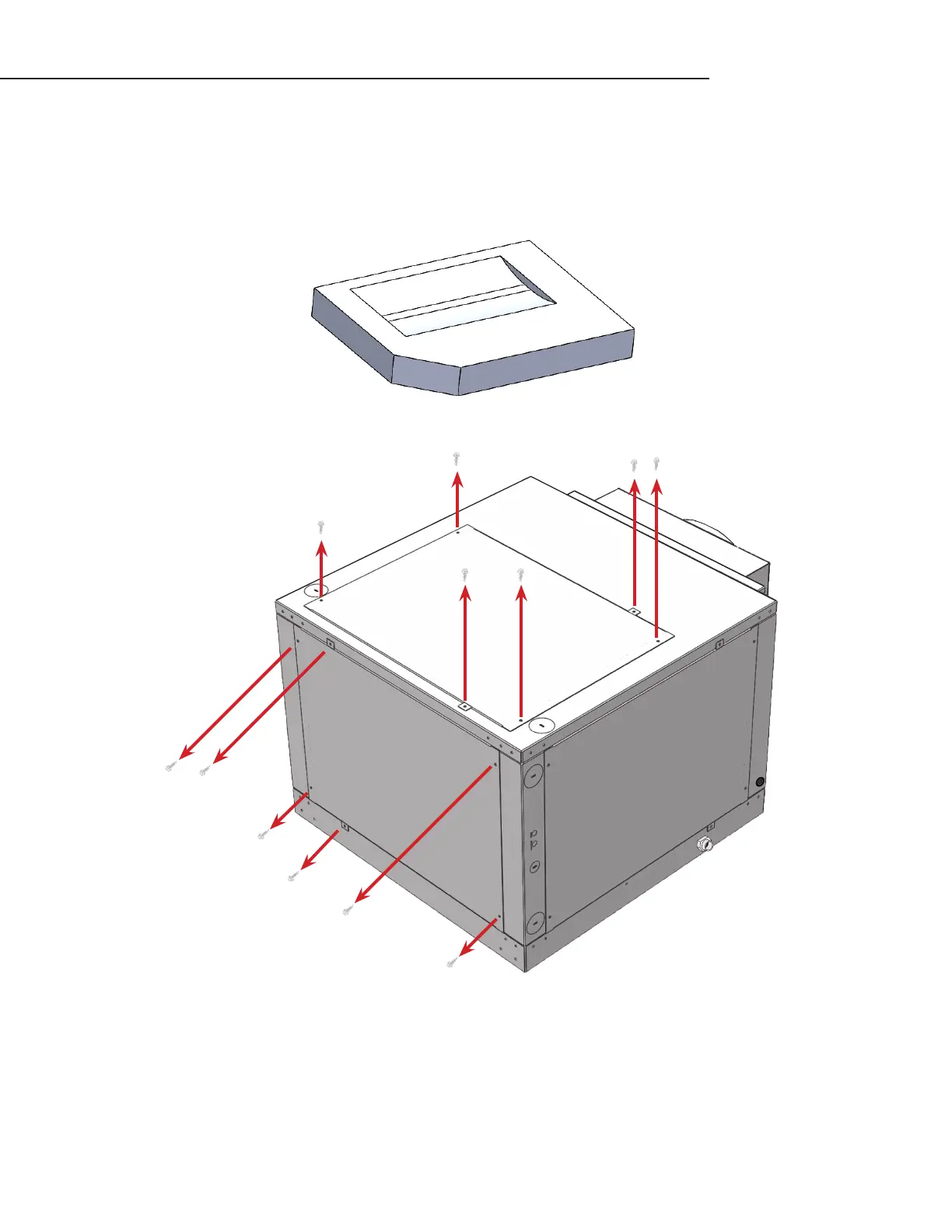

If you wish to have the supply air duct and blower oriented toward the top of the unit, use the secondary foam fan
bracket (packaged with the unit) pictured below. The purpose of this piece of foam is to enable you to orient the
blower so that the supply air duct faces upward.
1. To reorient the blower, rst remove the access panels on the rear and top of the unit.
