Magnum Series
TXV ADJUSTMENT, CONTINUED
Sporlan TXV Adjustment
Some units are equipped with a Sporlan adjustable TXV.
Adjustment Steps:
1. Remove the seal cap using two wrenches. (Figure 2)
i. Use a 7/8” wrench on the BOTTOM cap.
ii. Use a 3/4” wrench on the TOP (seal) cap.
2. With the cap seal removed. (Figure 3)
i. Use a 3/16” service wrench to tighten or loosen the service stem located under the seal cap.
ii. When the adjustment is completed, replace the seal cap.

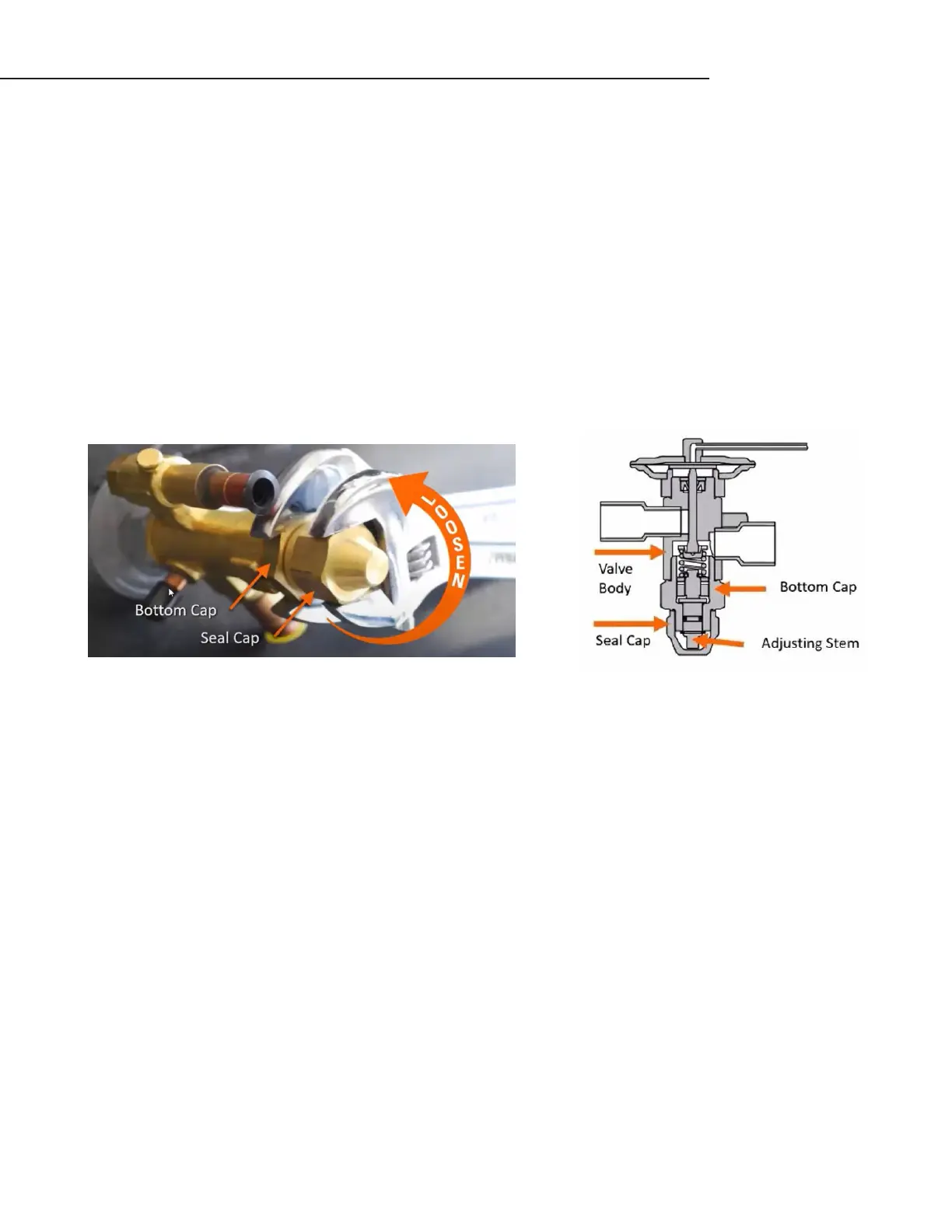

FIGURE 2 FIGURE 3
