18 Vessel Distribution
Vessel Distribution
Vessel Distribution

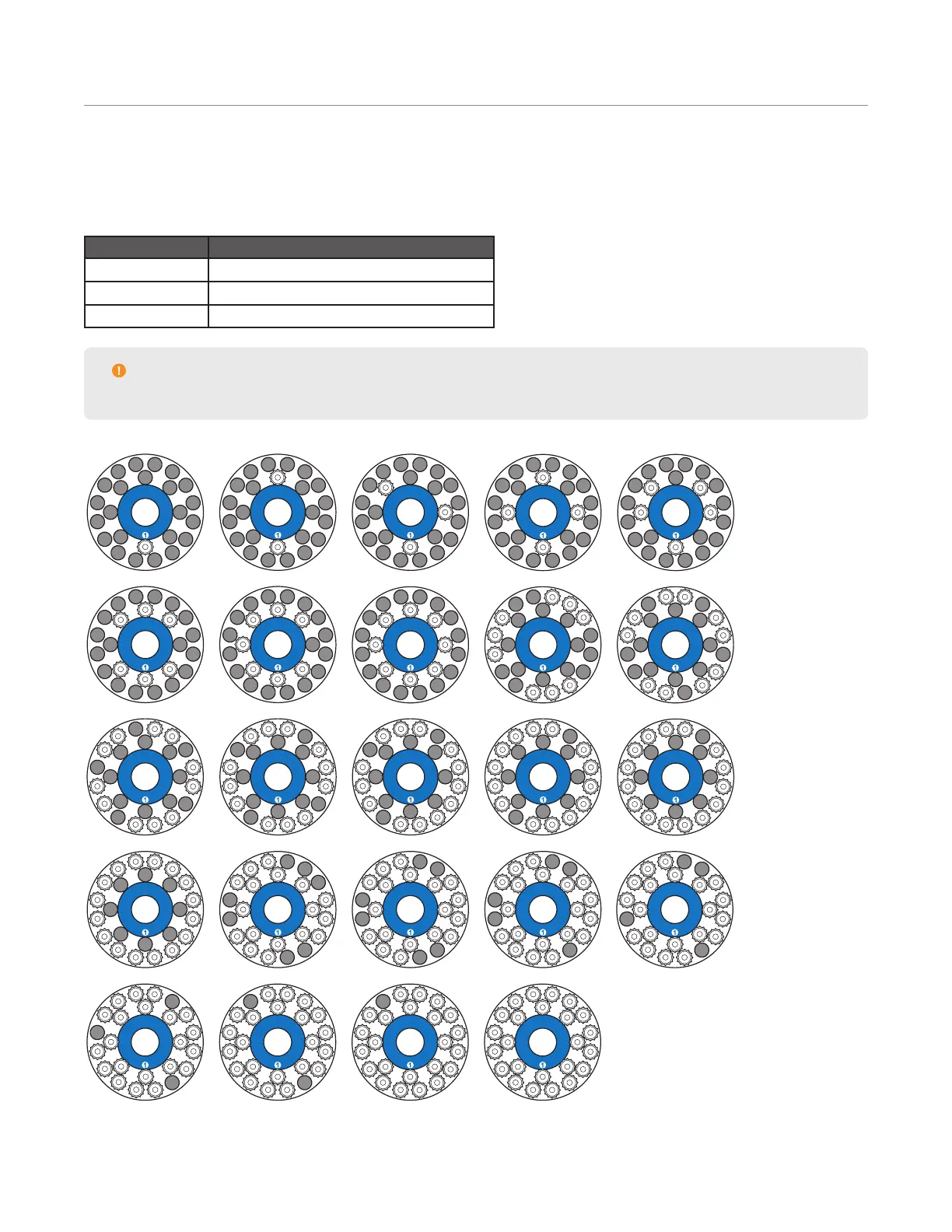

Even vessel distribution is required for optimal performance. Proper spacing will eliminate hot spots, issues
regarding turntable balance, and provide optimal temperature sensing.
Number of Vessels Vessel Distribution
1 - 8 Inner row only - even distribution
9 - 16 Outer row only - even distribution
17 - 24 Inner and outer rows - even distribution
CAUTION
Vessel distribution is not shown for the 16 place turntable. Ensure vessels are evenly distributed.
6 7
16 17 18
19
20
21 22 23
24
12 13 14
15
1 2 3
4 5
11
8 9 10
