Cembre MG4 - Unpacking and Initial Installation

5
Introduction1
1.6
Unpacking and installing the device
X Remove the contents from the box.
X Check that the printer has not been damaged in transit.
X Check that all package contents are present.
X Placetheprinteronaatsurface.

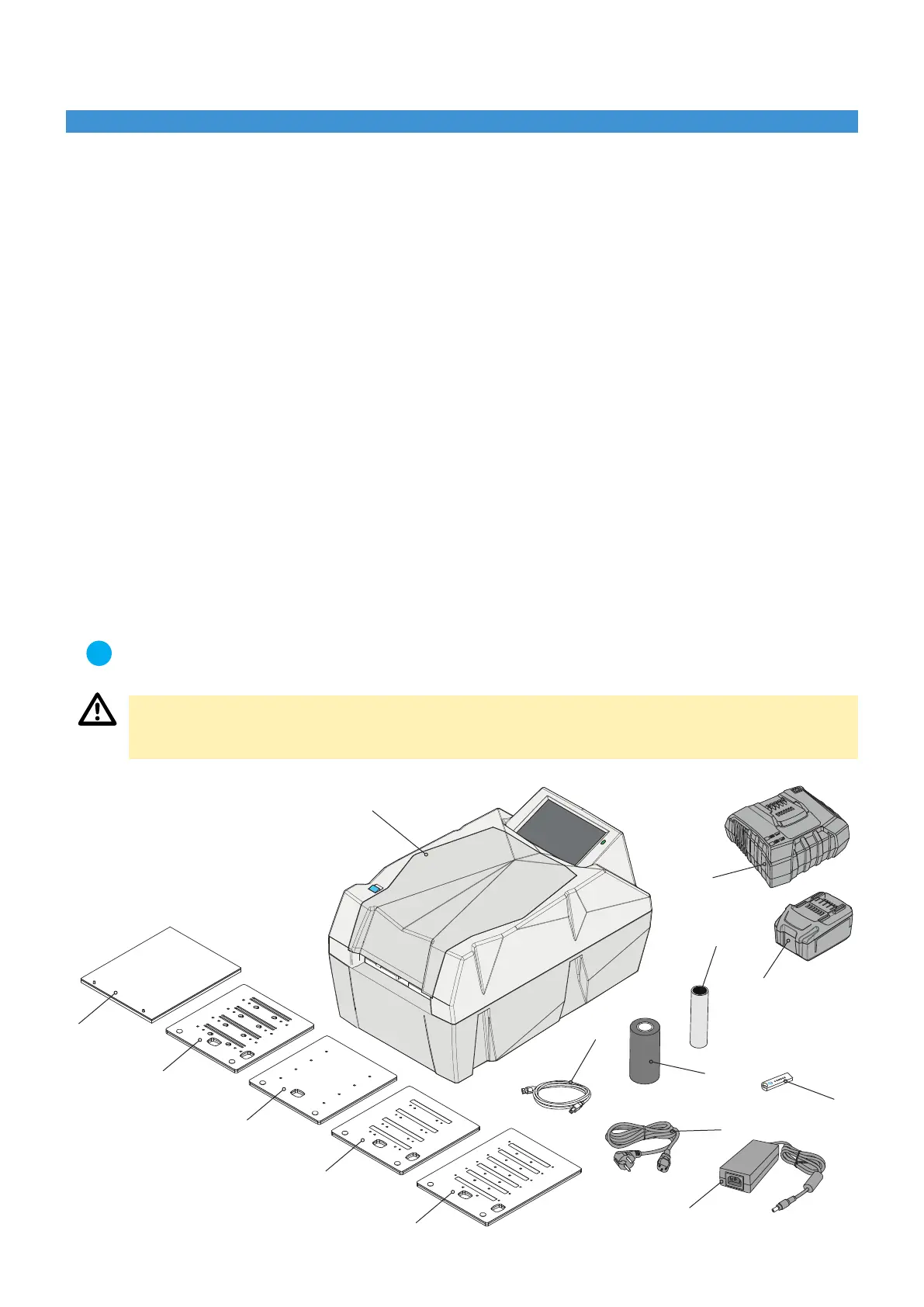

Package contents (Fig. 1)
A – MG4 Plug & Play basic printer
B – USB cable
C – Power cable
D – Power supply unit GST90A24-P1M code 6971120
E – "FD-GENIUSPRO" USB key containing the "GENIUSPRO" software (including the licences that can be activated
in the reserved area at www.cembre.com) and user manual
F – MG2-PLT 991002 interface template for marking tags, labels, nameplates and FLAT series products.
G – MG2-QTB 991011 interface template for MG-CPM-01, -02, -03, -04, -07, -11 type terminal block markers
H – MG2-PWC 991000 interface template for printing type MG-TPM type tags for holders
I – MG2-PTM 991010 interface template for printing type MG-TDM, MG-TDMO type cable tags
L – MG2-PTD 991007 interface template for printing type MG-TDM type 6 stems cable tags
M – MG2-ETR 991600 black print ribbont
N – MG2-CRB 991654 ribbon take-up spool cardboard core
Accessories on request:
O – ASC55-EU ......................... Battery charger 220-240 V / 50-60 Hz with EU plug
ASC55-UK ......................... Battery charger 220-240 V / 50-60 Hz with UK plug
ASC30-36-USA/CA ........... Battery charger 115 V / 60 Hz with USA plug
ASC30-36-AUS/NZ ........... Battery charger 220-240 V / 50-60 Hz 85 with AUS plug
P – CB1820L ............................ Rechargeable battery 18V - 2,0 Ah Li-Ion
CB1852L ........................... Rechargeable battery 18V - 5.2 Ah Li-Ion
i
Note!
Keep the original packaging for subsequent transport.
Caution!
Water and moisture damage the device and print materials.
The label printer should only be installed in dry locations and protected from water splashes.
Fig. 1
A
C
D
E
G
(MG4)
(MG4A)
(MG4E)
M
N
O
P
B
I (MG4A)
L (MG4E)
H (MG4)
F
(MG4)
(MG4A)
(MG4E
)
