BASE (#1G)
(RIGHT EDGE)
EXTENSION TABLE (#5H)
456789
SCALE (#6H)
7-1/8” MARK, RIGHT SCALE
3. Loosely attach a Washer (part #12H) and Hex Nut (part #13H) to each Square
Head Bolt (part #10H). (See Figures I, J, and Assy. Diagram H.)

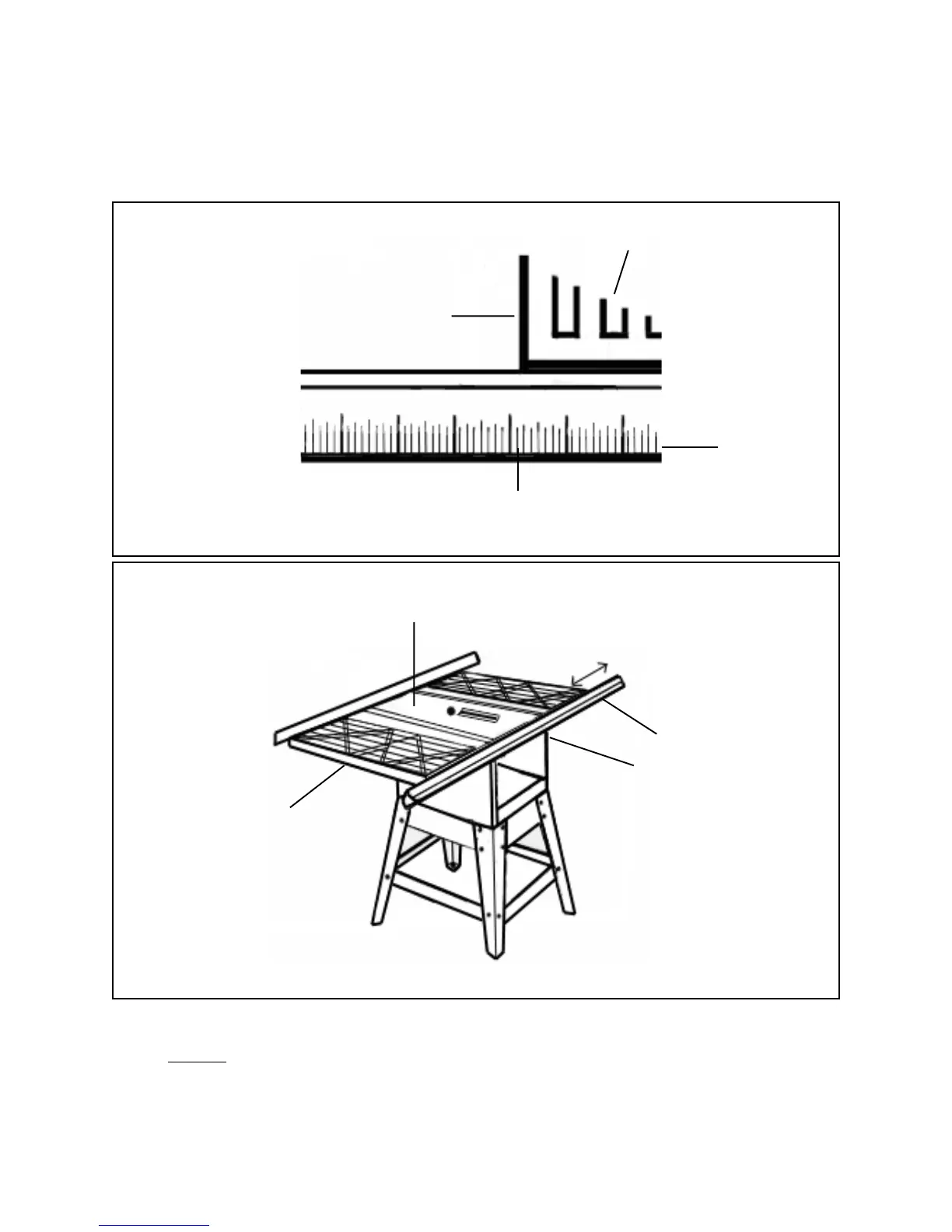

FIGURE H
10” TABLE SAW
REAR RAIL (#3H)
BASE (#1G)
EXTENSION
TABLE (#5H)
2
-1
/2
”
FIGURE I
4. NOTE: The back side of the Rear Rail (part #3H) has one slot. Slide the slot of
the Rear Rail over the Square Head Bolts (part #10H).
(See Figures I, J, and Assy. Diagram H.)
