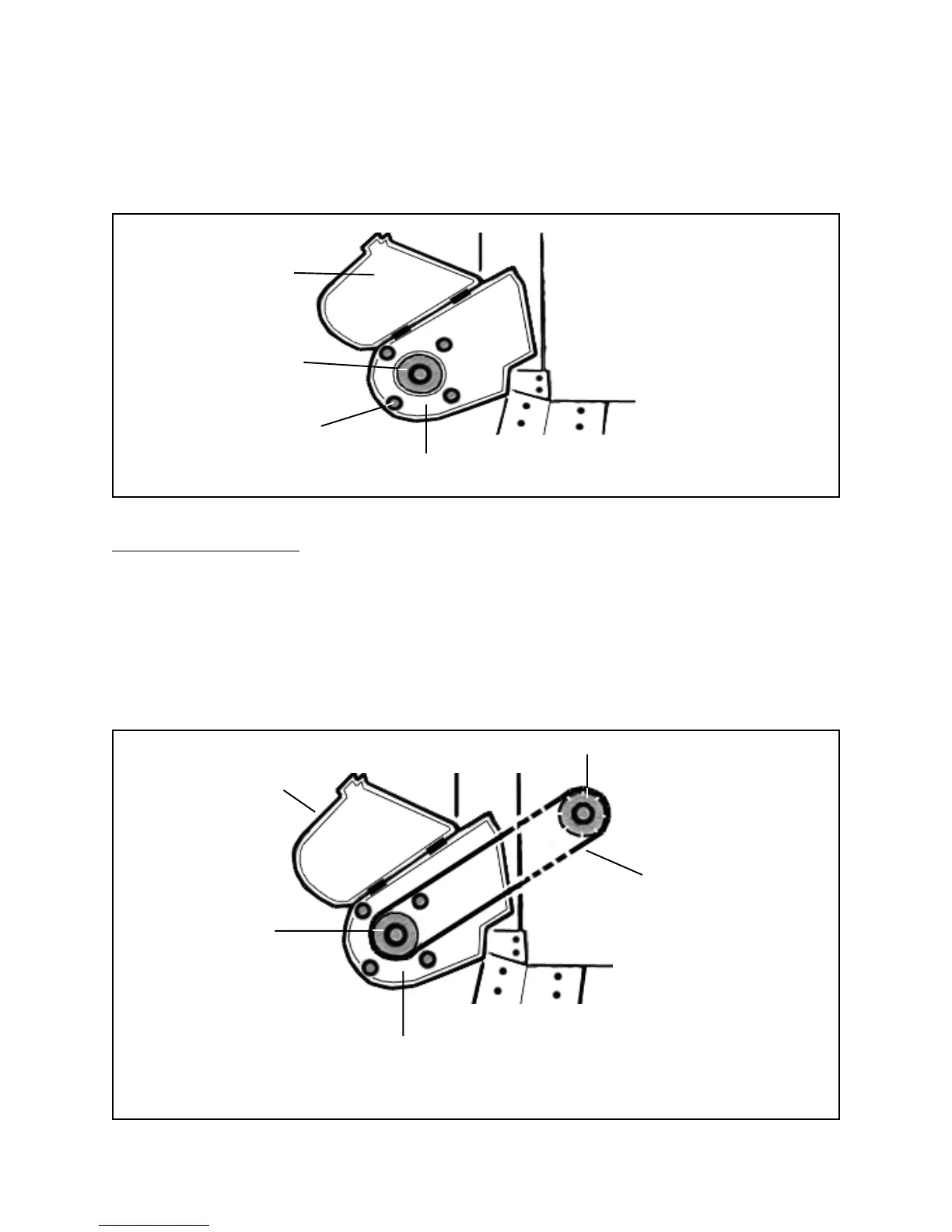

Central Machinery 46813 - To Attach the V-Belt

2. Secure the Belt Guard (parts #1F, #4F) to the Motor (part #7F), using four Flat
Washers (part #3F) and four Hex Nuts (part #2F).
(See Figures N, O, and Assy. Diagram F.)
OUTER BELT
GUARD (#1F)
MOTOR PULLEY
(#5F)
FLAT WASHER (#3F)
HEX NUT (#2F)
INNER BELT
GUARD (#4F)
FIGURE O
To Attach The V-Belt:
1. Turn the Height Handle counterclockwise until it stops.
(See Figure B, and Assy. Diagram G.)
2. Slip the V-Belt (part #40-I) onto the Pulley (41-I) inside the Base (part #1G).
(See Figure P, and Assy. Diagram I.)
OUTER BELT
GUARD (#1F)
PULLEY (#41-I)
V-BELT
(#40-I)
BASE
(#1G)
MOTOR
PULLEY
(#5F)
INNER BELT
GUARD (#4F)
FIGURE P
SKU 46813 PAGE 19
