PARTS LISTS AND ASSEMBLY DIAGRAMS

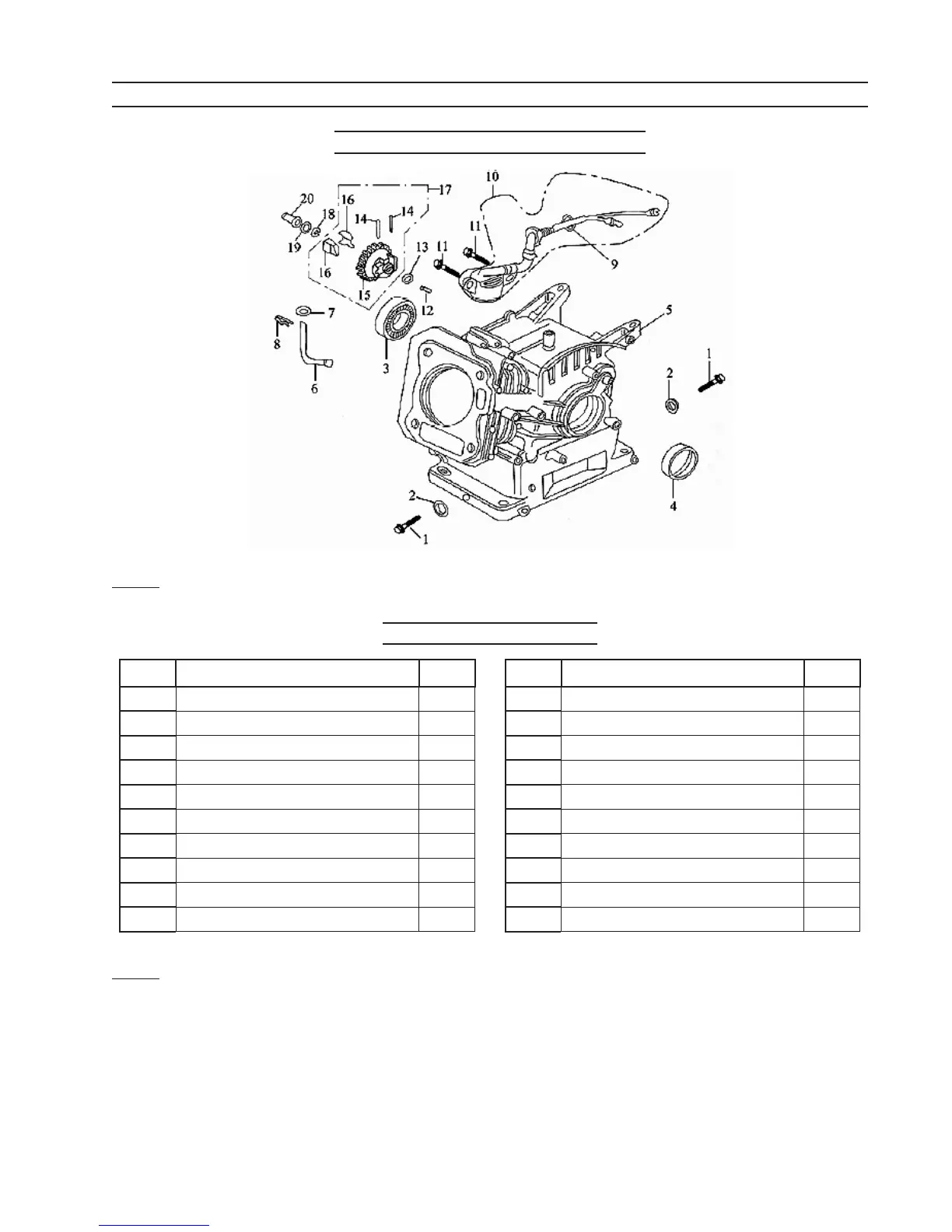

Crankcase Assembly Diagram
Note: When ordering parts from this list, specify: Parts List A, CRANKCASE ASSEMBLY
and the ITEM No.
Crankcase Parts List
Part Description Qty
1A Drain Plug 2
2A Washer 2
3A Bearing, 6205 1
4A Seal, Oil, Crankshaft 1
5A Crankcase 1
6A Sway Bar, Regulator 1
7A Washer 2
8A Pin, Split 1
9A Nut, M10 1
10A Sensor, Oil 1
Part Description Qty
11A Bolt, M6x14 2
12A Regulating Shaft 1
13A Washer, Drive Gear 1
14A Pin 2
15A Drive Gear, Regulator 1
16A Fly Block 2
17A Drive Gear Assembly Regulator 1
18A Snap Ring 1
19A Washer 2
20A Sliding Sleeve 1
Note: Some parts on this Parts List and the Parts Lists that follow are listed and shown for
illustration purposes only and are not available individually as replacement parts.
