Central Machinery 96549 - Fuel Tank Assembly Diagram; Fuel Tank Parts List

Page 22SKU 96549
For technical questions, please call 1-800-444-3353.

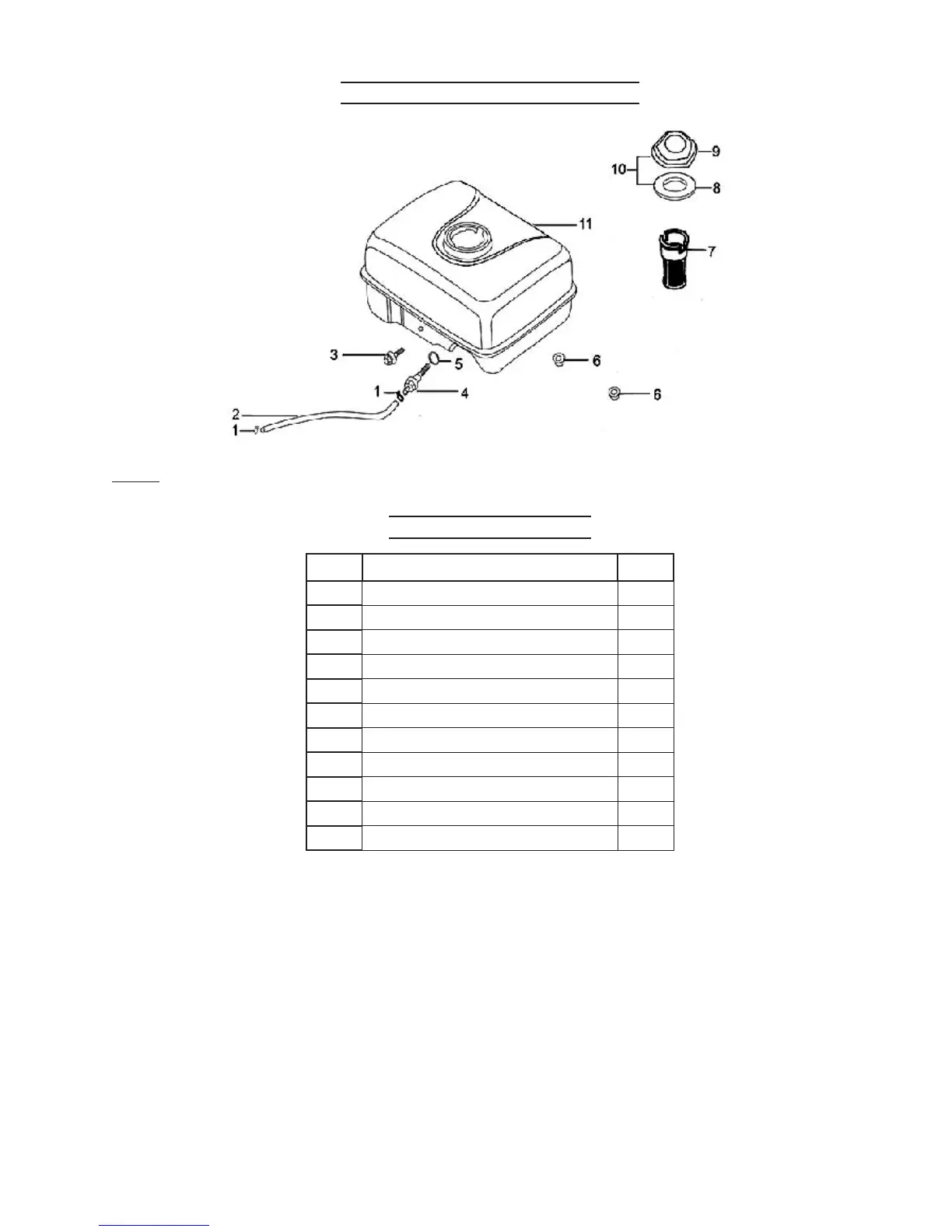

Fuel Tank Assembly Diagram
Note: When ordering parts from this list, specify: Parts List G, FUEL TANK ASSEMBLY and
the ITEM No.
Fuel Tank Parts List
Part Description Qty
1G Pipe Clamp 2
2G Pipe, Outlet 1
3G Bolt, M6x22 1
4G Connector 1
5G Packing Ring 1
6G Nut, M6 2
7G Filter Cup 1
8G Packing Ring 1
9G Fuel Filler Cap 1
10G Fuel Filler Cap with Packing Ring 1
11G Fuel Tank 1
