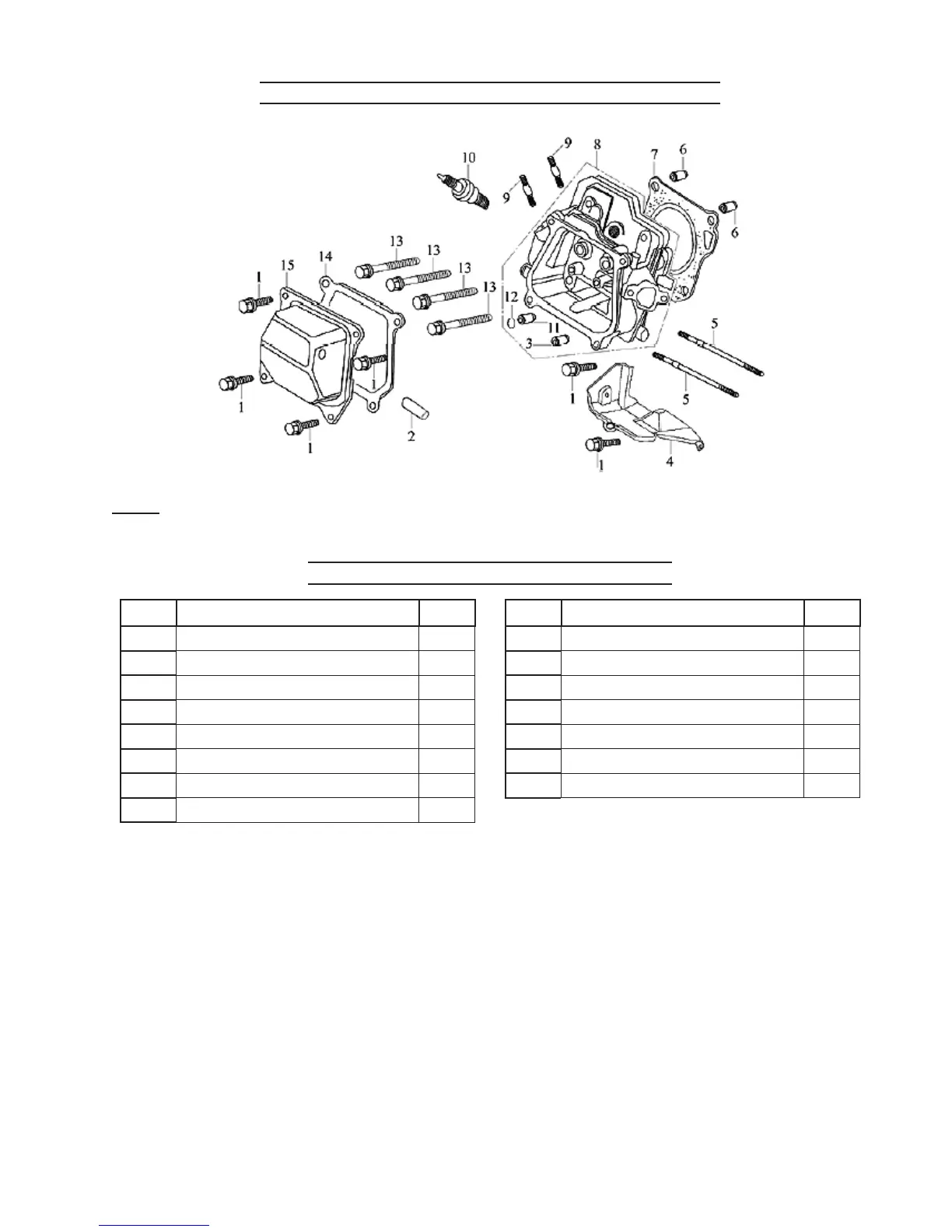

Cylinder Head and Cover Assembly Diagram
Note: When ordering parts from this list, specify: Parts List C, CYLINDER HEAD AND COVER
ASSEMBLY and the ITEM No.
Cylinder Head and Cover Parts List
Part Description Qty
1C Bolt, M6x12 6
2C Air duct 1
3C Intake Valve Guide 1
4C Lead Wind Cover 1
5C Stud, M6x109 2
6C Pin, Set 10x16 2
7C Gasket, Cylinder Head 1
8C Cylinder Head Assembly 1
Part Description Qty
9C Stud, M8x34 2
10C Spark Plug, F6TC 1
11C Exhaust Valve Guide 1
12C Circle Clip 1
13C Bolt 4
14C Gasket, Cylinder Head Cover 1
15C Cylinder Head Cover Assembly 1
