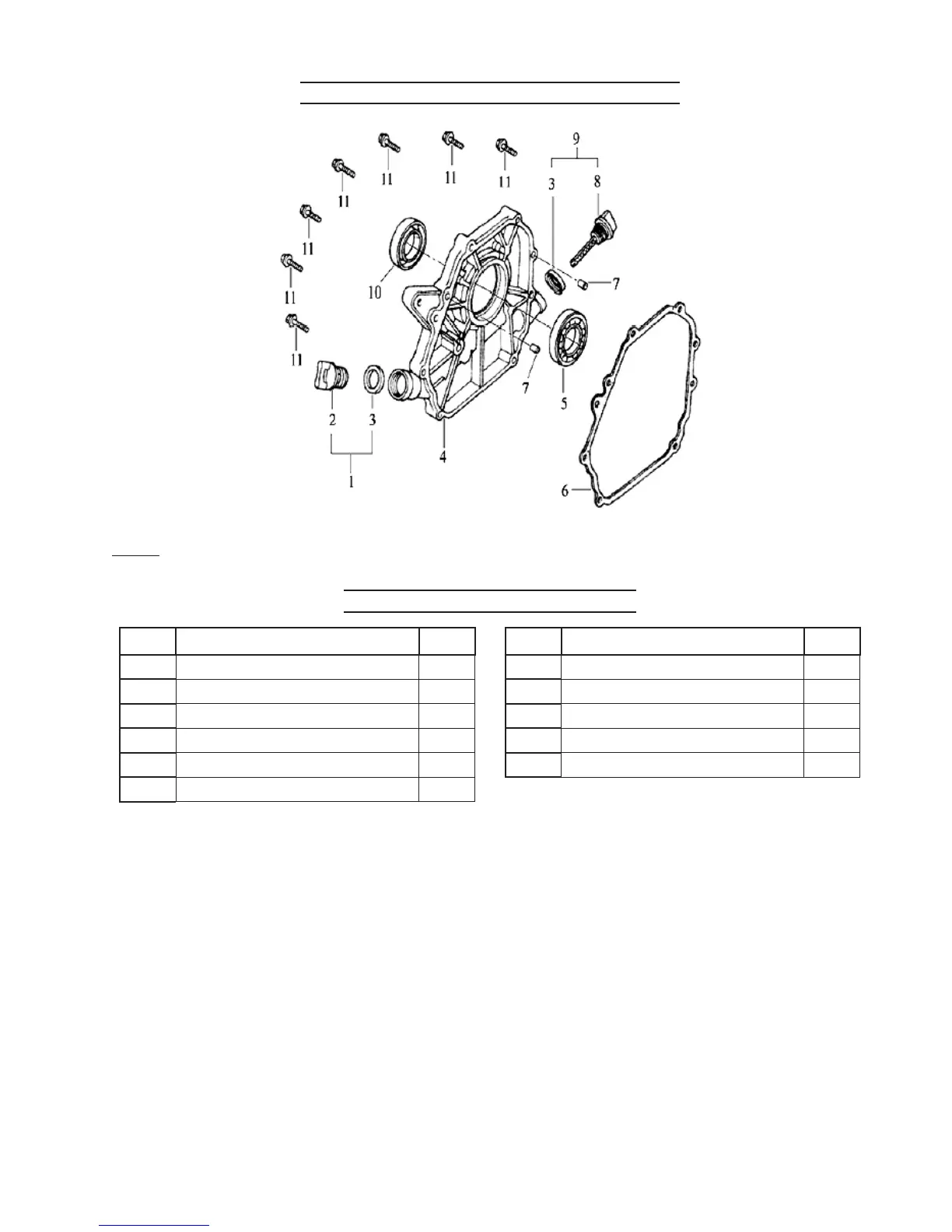

Crankcase Cover Assembly Diagram
Note: When ordering parts from this list, specify: Parts List B, CRANKCASE COVER AS-
SEMBLY and the ITEM No.
Crank Case Cover Parts List
Part Description Qty
1B Oil Plug with Seal 1
2B Oil Plug 1
3B Seal 2
4B Crankcase Cover 1
5B Bearing, 6250 1
6B Gasket, Crankcase 1
Part Description Qty
7B Pin, Set 2
8B Dipstick 1
9B Dipstick with seal 1
10B Oil Seal, Crankshaft 1
11B Bolt, M8x32 7
To Next Page
