Central Machinery 96549 - Air Cleaner Assembly Diagram; Air Cleaner Parts List

31 pages

To Next Page

To Previous Page

Page 23SKU 96549

For technical questions, please call 1-800-444-3353.

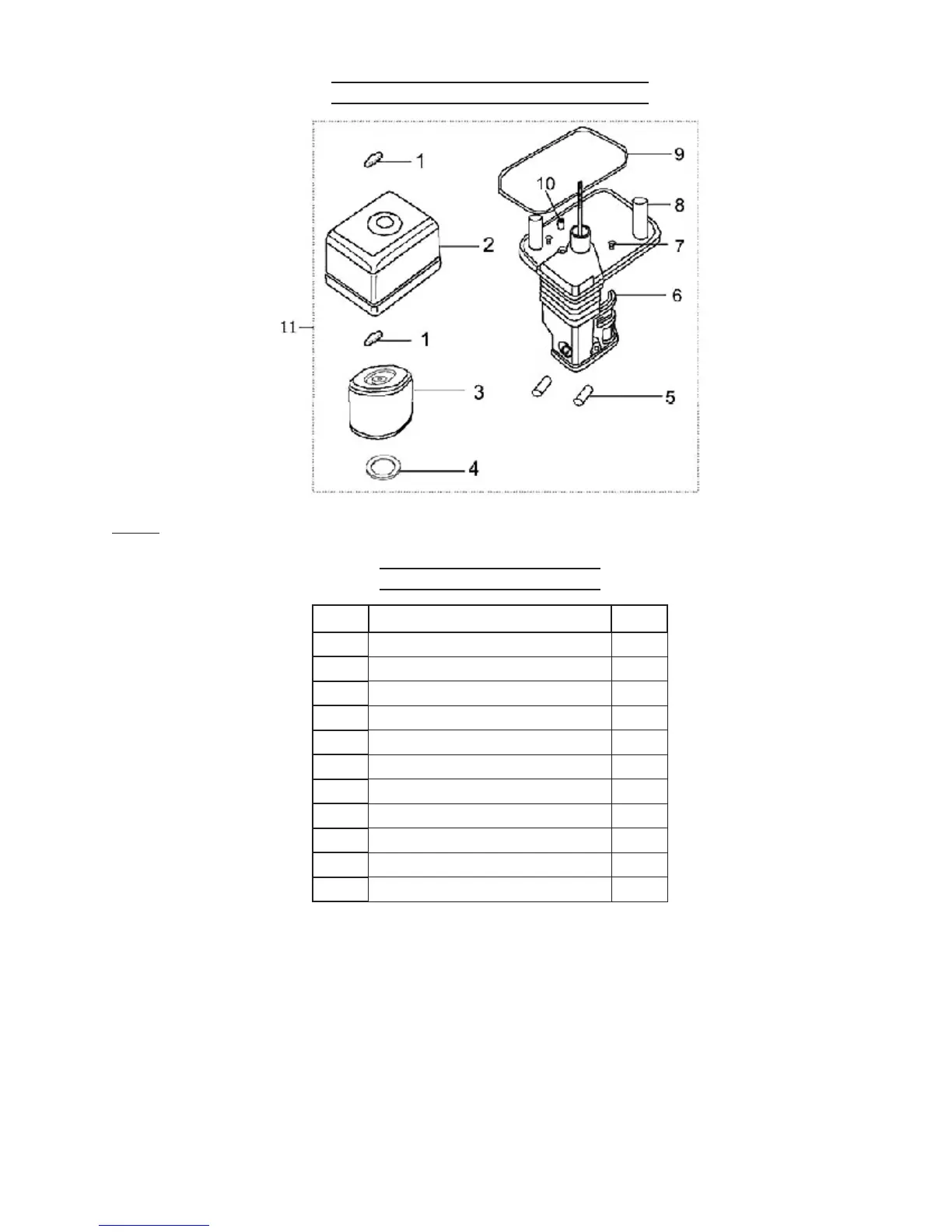

Air Cleaner Assembly Diagram

Note: When ordering parts from this list, specify: Parts List H, AIR CLEANER ASSEMBLY

and the ITEM No.

Air Cleaner Parts List

Part Description Qty

1H Wing Nut 2

2H Air Cleaner Cover 1

3H Filter Element 1

4H Washer 1

5H Sleeve A 2

6H Air Cleaner Housing 1

7H Screw, M5x12 2

8H Air Cleaner Base 1

9H Gasket 1

10H Sleeve B 1

11H Air Cleaner Assembly 1
