Page 25SKU 96549
For technical questions, please call 1-800-444-3353.

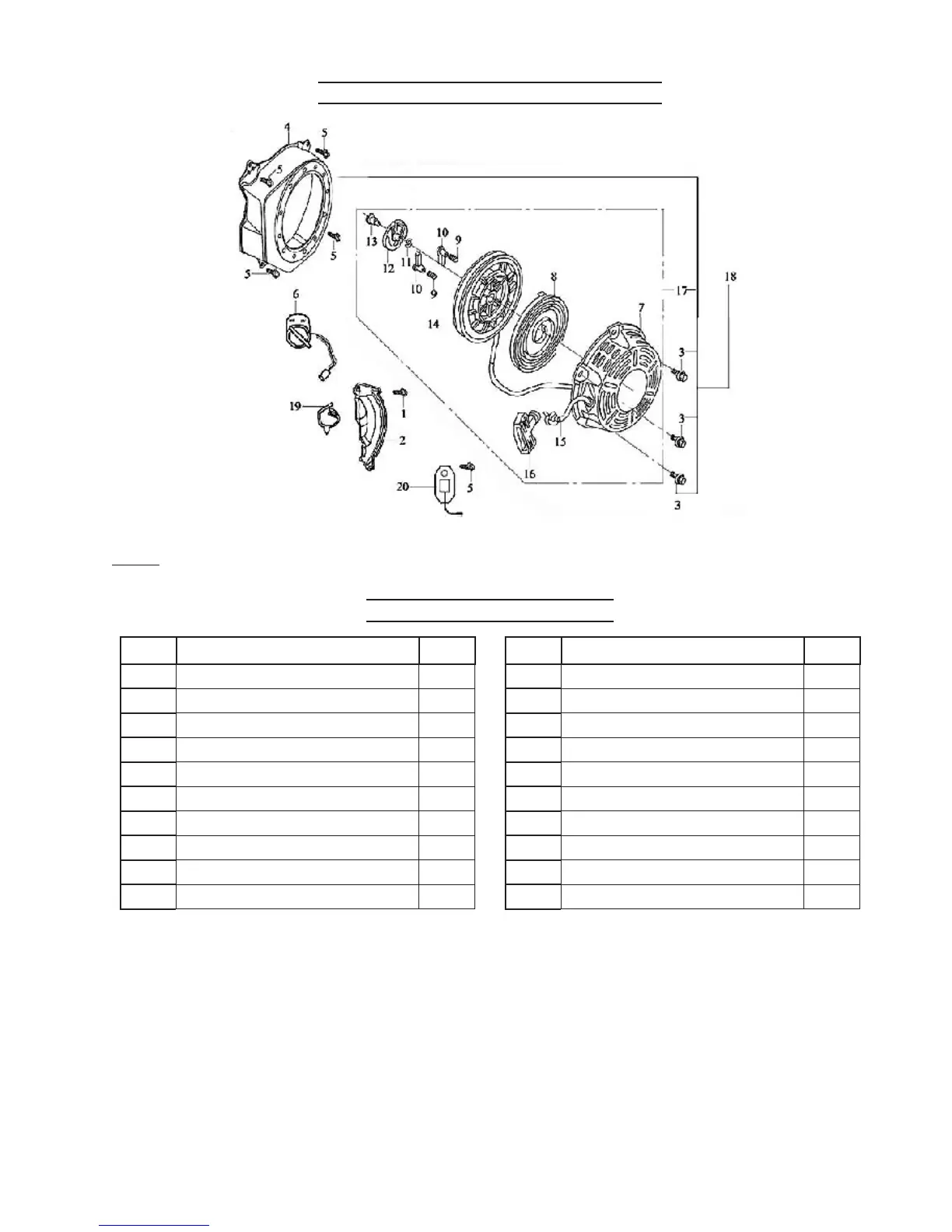

Recoil Starter Assembly Diagram
Note: When ordering parts from this list, specify: Parts List K, RECOIL STARTER ASSEMBLY
and the ITEM No.
Recoil Starter Parts List
Part Description Qty
1K Bolt, M6x22 1
2K Crankcase Side Plate Assy 1
3K Bolt, M6x18 3
4K Fan Hood Assy. 1
5K Bolt, M6x12 5
6K Engine Switch 1
7K Casing 1
8K Spring, Spiral 1
9K Spring, Ratchet 2
10K Ratchet 2
Part Description Qty
11K Spring, Friction 1
12K Spring Lid 1
13K Screw, Set 1
14K Starter Wheel 1
15K Rope, Starter 1
16K Pull Cord Handle 1
17K Recoil Starter 1
18K Recoil Starter Assembly 1
19K Clip, Plastic 1
20K Diode 1
To Next Page
