Page 19SKU 96549
For technical questions, please call 1-800-444-3353.

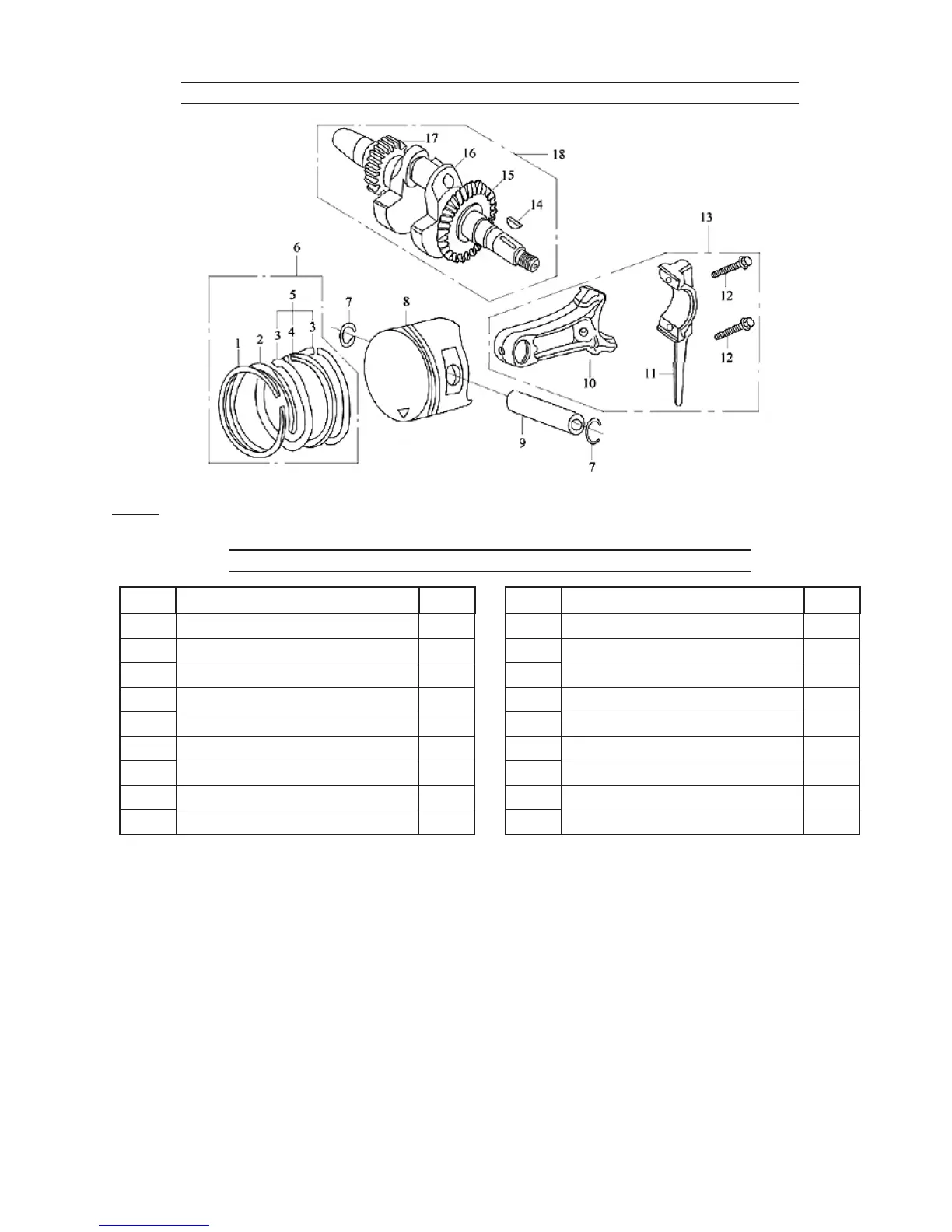

Crankshaft, Piston, and Connecting Rod Assembly Diagram
Note: When ordering parts from this list, specify: Parts List D, CRANKSHAFT, PISTON, AND
CONNECTING ROD ASSEMBLY and the ITEM No.
Crankshaft, Piston, and Connecting Rod Parts List
Part Description Qty
1D Piston Ring (I) 1
2D Piston Ring (II) 1
3D Side Rail 2
4D Expander 1
5D Scraper Ring Set 1
6D Piston Ring Assembly 1
7D Piston Pin Circle Clip 2
8D Piston 1
9D Piston Pin 1
Part Description Qty
10D Connecting Rod 1
11D Connecting Rod Cover 1
12D Bolt 2
13D Connecting Rod Assembly 1
14D Woodruff Key 1
15D Drive Gear 1
16D Crankshaft 1
17D Timing Drive Gear 1
18D Crankshaft Assembly 1
