Step5:Attach the HOSE ADAPTER to the other end of the STEEL SHUT OFF VALVE.
Sand Control Valve/ Nozzle Shut Off Valve
Refer to Figure 5.
Sand Control
Valve Assembly
Sand Hose
Nozzle Shut Off
Valve Assembly
Hose Clamp
(#23)

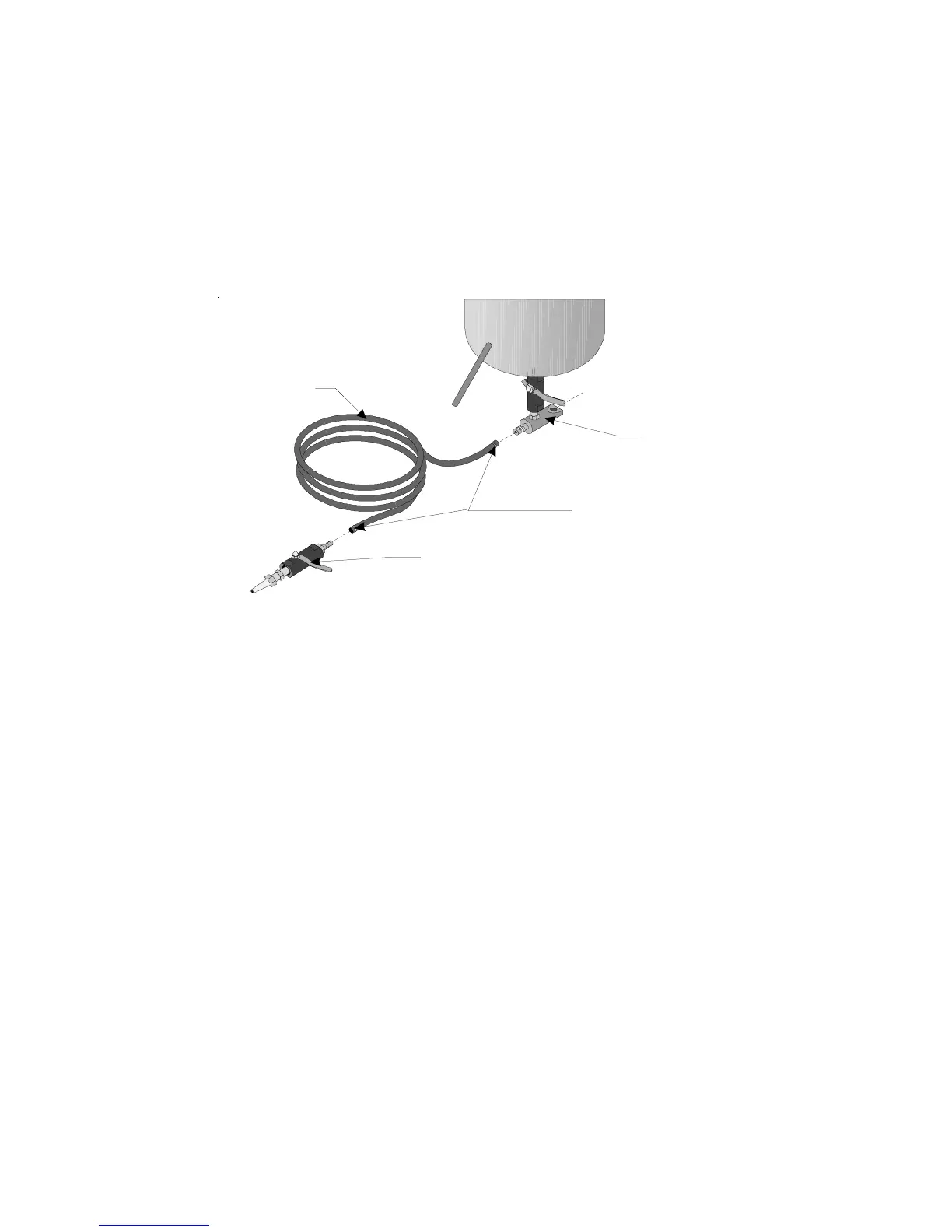

Figure 5 — Sand Control Valve / Shut Off Valve Assembly
Step1: Get out the Sand Control Valve & Nozzle Shut Off Valve Assemblies, the SAND HOSE
(#24), and the two HOSE CLAMPS (#23).
Step2: Slide the HOSE CLAMPS over either side of the SAND HOSE. Do not tighten yet.
Step3: Slide one end of the SAND HOSE onto the Nozzle Shut Off Valve Assembly’s HOSE
ADAPTER (#25). Tighten the HOSE CLAMP very securely.
Step4: Slide the other end of the SAND HOSE onto the Sand Control Valve Assembly’s SAND
OUTLET MANIFOLD (#22). Tighten the HOSE CLAMP very securely.
Page #8 -- SKU 34202
