Mount the origin marker:
11. Close the gate completely.
12. Mount the origin marker to the rack (Figure 18) at least 500mm from the origin sensor (Figure 19).
If a CE chip is fitted to the control card (Figure 17), mount the origin marker at least 1000mm from
the origin sensor to allow for the longer crawl distance.
If the crawl distance feature of the control card (page 44) has been changed from the default
value of 1, the origin marker position must be by at least
The position of the origin marker affects how far the gate will open for the PEDESTRIAN opening
feature. Locating the marker at a distance greater than the recommended distance will increase
the pedestrian opening.
increased 250mm x crawl setting
value.
Page 22
MOTOR - BATTERY + LIGHT COM
SET
COM
L1 L2
CHARGE
DC CHARGER
INPUT
SERIAL #
SET
CENTURION SYSTEMS CP80 V1.2
STATUS
3A
FAST
BLOW
LIGHT FUSE
AUXILIARY FUSE 3A F/B
CLOSE RELAY
OPEN RELAY
LIGHT RELAY
TRIGGER
INFRA RED BEAM
FREE EXIT
PEDESTRIAN
LOCK
SET
PROGRAMMING SET LINK
TEST
(LED’s)
(LED)
(LED)
(LED)
DOSS
12V
TRG
IRB FRX
LED
PED
LCK
A CE chip fitted to the CP80
controller is indicated by
the version number ending
with the letters EU.
Standard chip
ORIGIN MARKER
BRACKET
WELD MOUNTING
BRACKET PROVIDED TO
STEEL RACK
BOLT USING
FASTENERS
PROVIDED
VIEWED FROM MOTOR SIDE
DRILL HOLES IN RACK
TO MOUNT ORIGIN MARKER

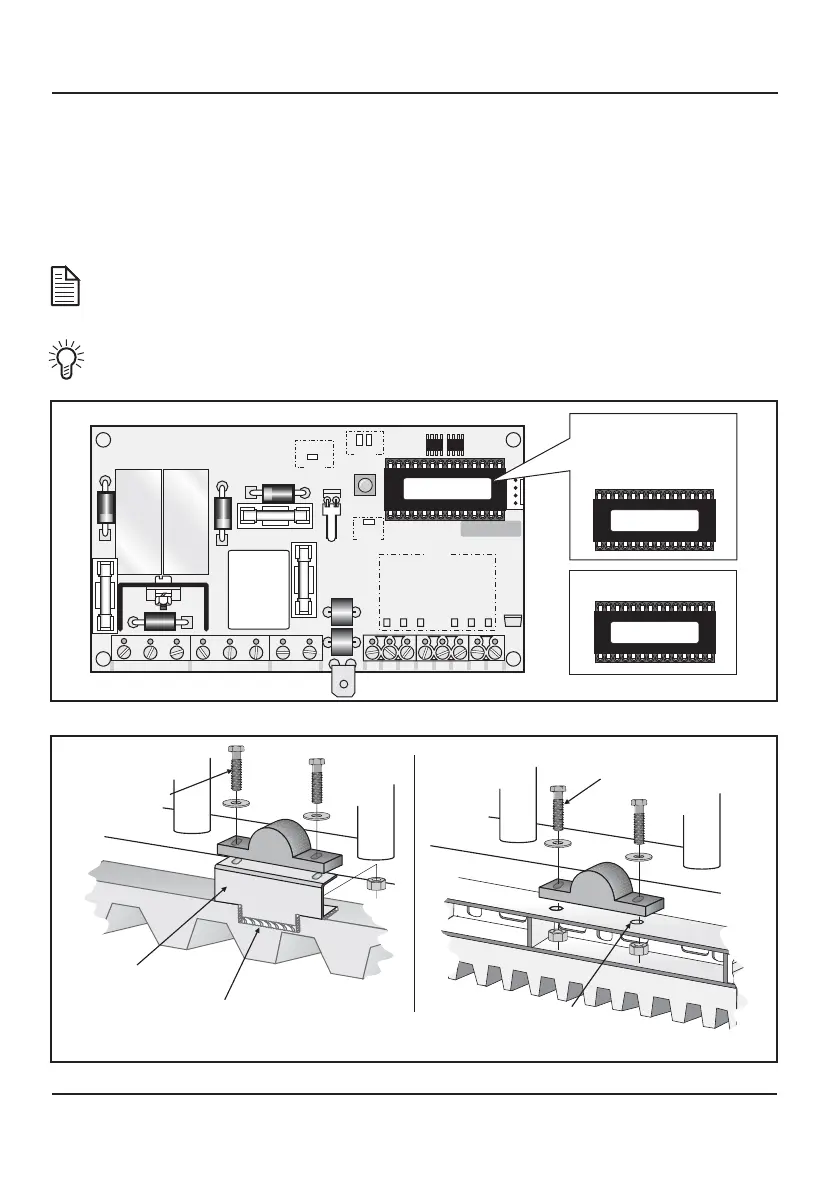

Figure 17 Chip Identification
Figure 18 Mounting the Origin Marker
Steel Rack
RAZ Rack
MICRO CONTROLLER
CHIP VERSION: D5 VxxCE
MICRO CONTROLLER
CHIP VERSION: D5 Vxx
MICRO CONTROLLER
CHIP VERSION: D5 Vxx
BOLT USING
FASTENERS
PROVIDED
To Next Page
