CP84ER5V01
L
N
E
220V AC
MAINS IN
M
3-WAY
CONNECTOR
3-WAY
CONNECTOR
RED/BLACK / PURPLE
RED/BLACK / ORANGE
TO DOSS
SENSOR
(See item 21,
Page 11)
NEUTRAL
LIVE
AUXILIARY
SUPPLY
21
MOTOR - BATTERY + LIGHT COM
SET
COM
L1 L2
CHARGE
DC CHARGER
INPUT
DC CHARGER
INPUT
SERIAL #
DOSS
SET
CENTURION SYSTEMS CP80 V1.2
STATUS
3A
FAST
BLOW
LIGHT FUSE
MASTER FUSE 16A S/B
AUXILIARY FUSE 3A F/B
CLOSE RELAYCLOSE
RELAY
OPEN RELAYOPEN
RELAY
LIGHT RELAYLIGHT
RELAY
TRIGGER
INFRA RED BEAM
FREE EXIT
PEDESTRIAN
LOCK
SET
PROGRAMMING SET LINK
TEST
(LED’s)
(LED)
(LED)
(LED)
MICRO CONTROLLER
CHIP VERSION: D5 V...
MICRO CONTROLLER
CHIP VERSION: D5 V...
12V
TRG
IRB FRX
LED
PED
LCK
4-WAY
CONNECTOR
4-WAY
CONNECTOR
Page 40

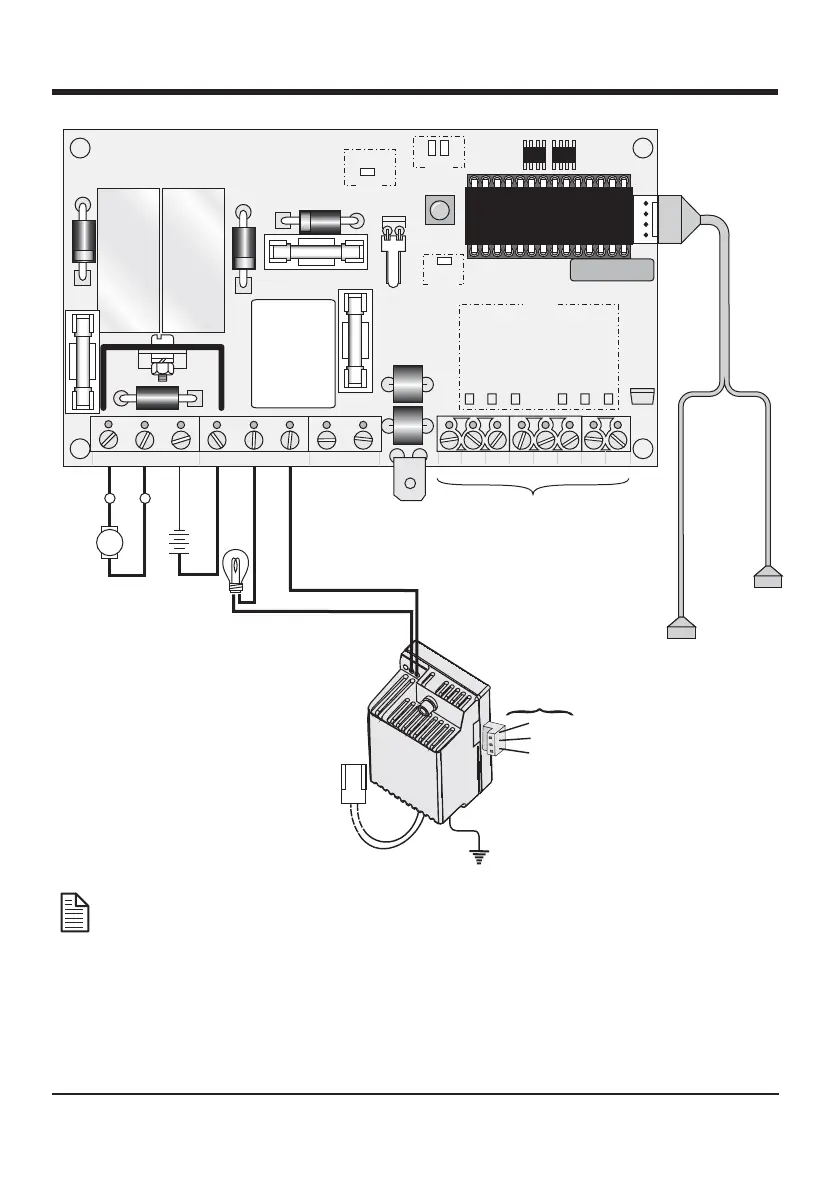

CP80 Power ConnectionsCP80 Power Connections
TO MAGNETIC
ORIGIN SWITCH
(See item 2,
Page 11)
When setting the gate limits during the
commissioning procedure as described on
Page 24, it may be necessary to change the
motor direction.
To change the master motor direction swop
wires (1) and (2).
For detailed connections, refer
to CP80 controller signal
connections on Page 41.
Plugs onto
CP80 Controller
To Next Page
