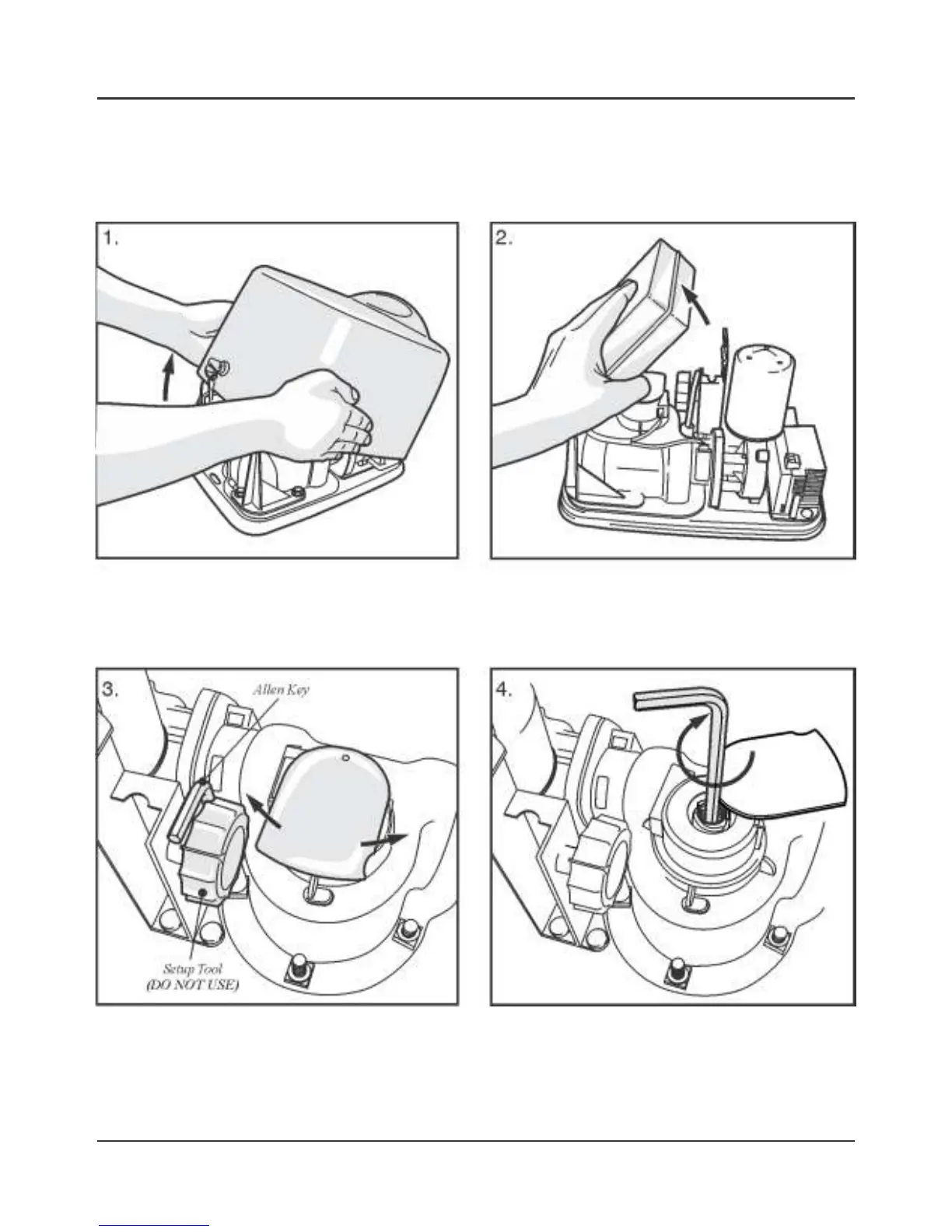

To release the manual override, proceed as follows:
Page 14
Swing open the manual release dust cover. Insert the allen key provided into the manual release
mechanism and rotate it clockwise to release the
gearbox (approximately 12 turns)
Unlock and remove the operator cover. Lift the controller housing fitted to a MASTER motor.
This is not necessary when releasing a SLAVE motor.
