Page 15

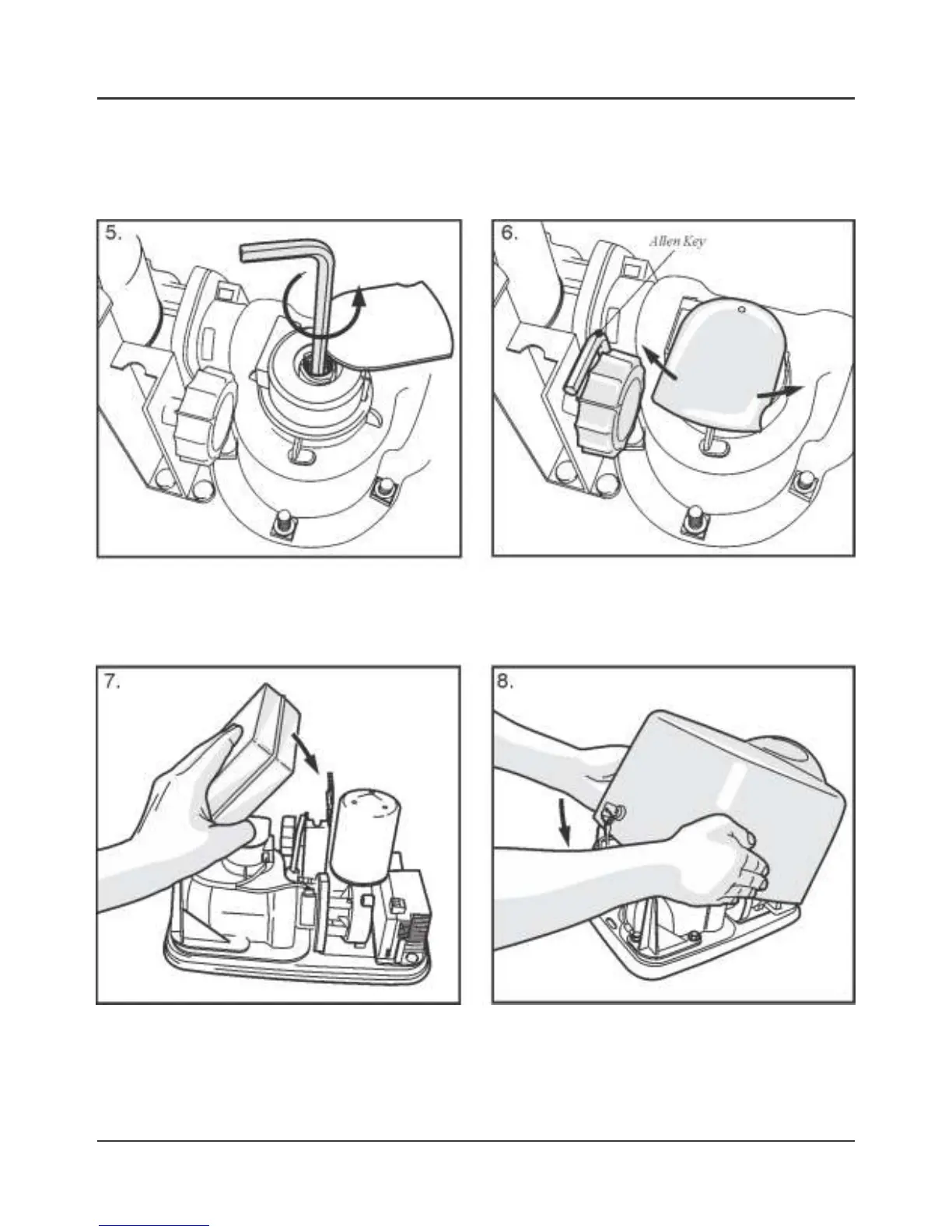

Rotate the dust cover back into position.
Unscrew the allen key (counter-clockwise) until the
top of the screw is flush with the top of the shaft.
Lower the controller housing into position (not
necessary for a SLAVE motor)
Replace the operator cover and lock it in position.
To re-engage the drive (disengage manual override):
