Centurion SDO4 SMART - Page 24

page 24 www.centsys.com

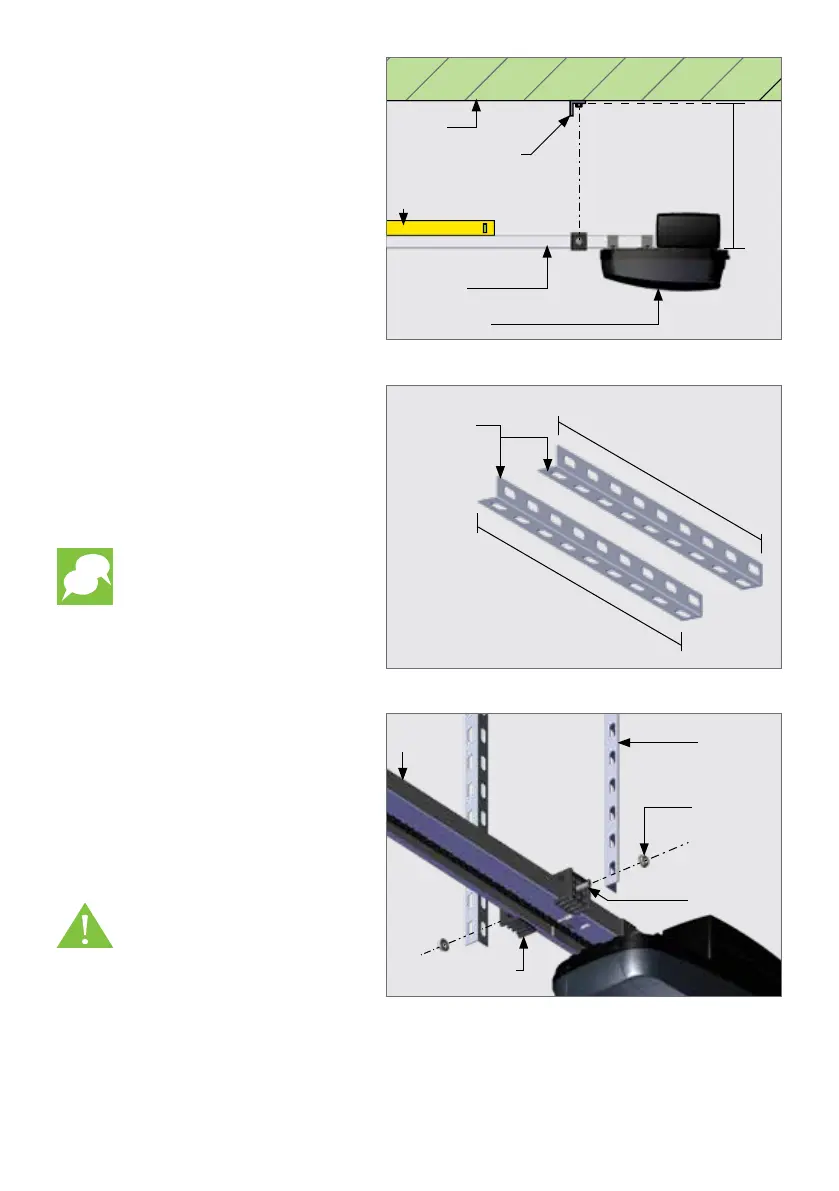

FIGURE 29
FIGURE 30
FIGURE 31
Level the SDO4 SMART again, and
measure the length needed from
the ceiling to the underside of the
drive rail, marked as ‘Value Xmm’ in
Figure 29.
Drive rail
hanger nut
Drive rail
hanger bolt
SDO4
SMART
Drive rail hanger
bracket
Punched
angle iron
Remove the two drive rail hanger
nuts from the bolts, and locate the
two lengths of punched angle iron
into position as shown in Figure 31.
Secure them in position with the two
drive rail hanger nuts.
Ensure that the punched
angle iron does not
protrude further than
the SDO4 SMART drive
rail base, as this will
interfere with the
operation of the motor!
Spirit level
Mounted punched
angle iron
Ceiling
Value Xmm
SDO4 SMART
Drive Rail
Two equal
lengths
of punched
angle iron
Value Xmm
Value Xmm
Using an angle grinder or hack saw,
cut two lengths of punched angle
iron to the measurement taken for
‘Value Xmm’.
Snip o the four corners of
the punched angle iron to
add a degree of safety and
neatness to the installation.
OPERATOR INSTALLATION - SECTIONAL DOORSSECTION 6
