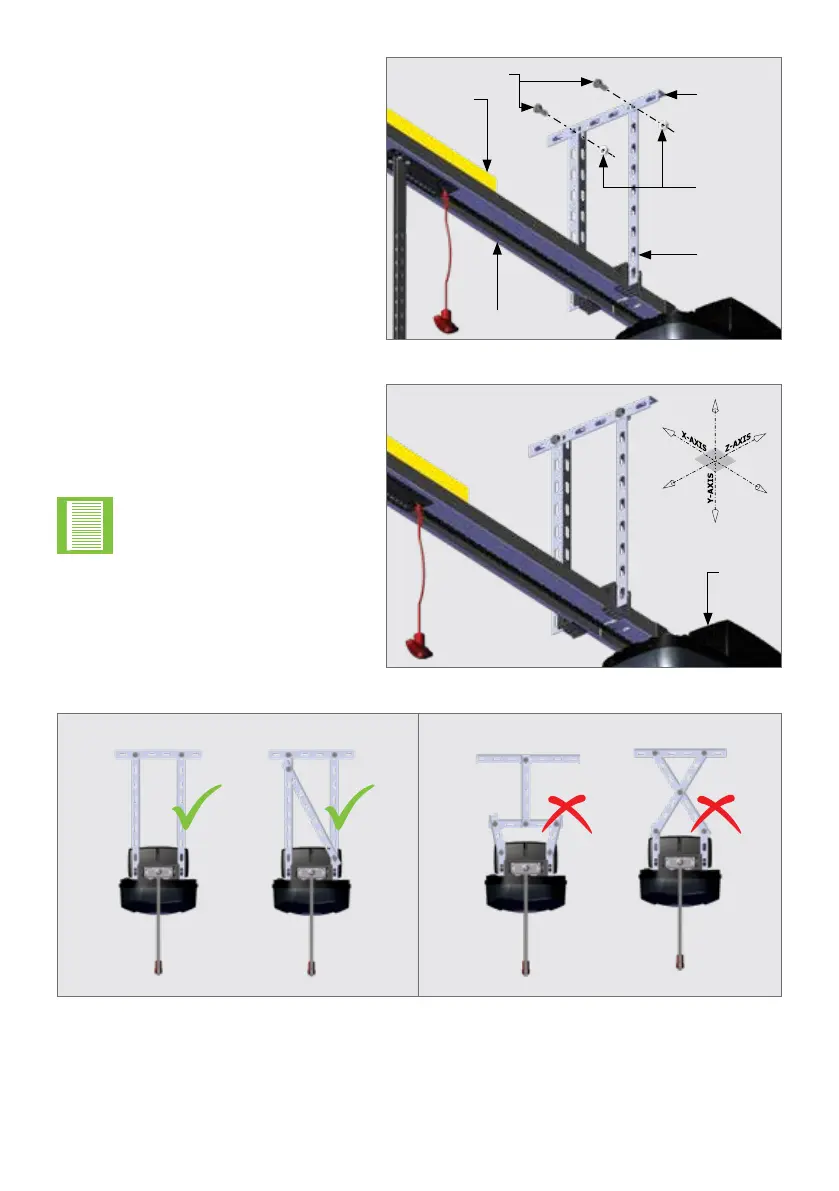

FIGURE 32
FIGURE 33
FIGURE 34. CORRECT AND INCORRECT MOUNTING CONFIGURATIONS
Use a spirit level to ensure that
the SDO4 SMART is still level and
parallel to the ceiling. Align the holes
of the punched angle iron mounted
to the ceiling, with the holes on
the punched angle iron mounted
to the drive rail hanger. Secure it
into position using two supplied M8
ange bolts and nuts using a 13mm
socket.
Spirit level
SDO4 SMART
SDO4
SMART
M8 Flange bolts
M8 Flange
nuts
Punched
angle iron
Punched
angle iron
mounted
to ceiling
RECOMMENDED NOT RECOMMENDED
Using a spirit level, ensure
that the SDO4 SMART is
level on both the X-Axis
and Z-Axis of the horizontal
plain. If it is not, it may
cause the motor to stress,
or the drive rail to twist.
OPERATOR INSTALLATION - SECTIONAL DOORSSECTION 6
