Centurion SDO4 SMART - Page 37

page 37 www.centsys.com

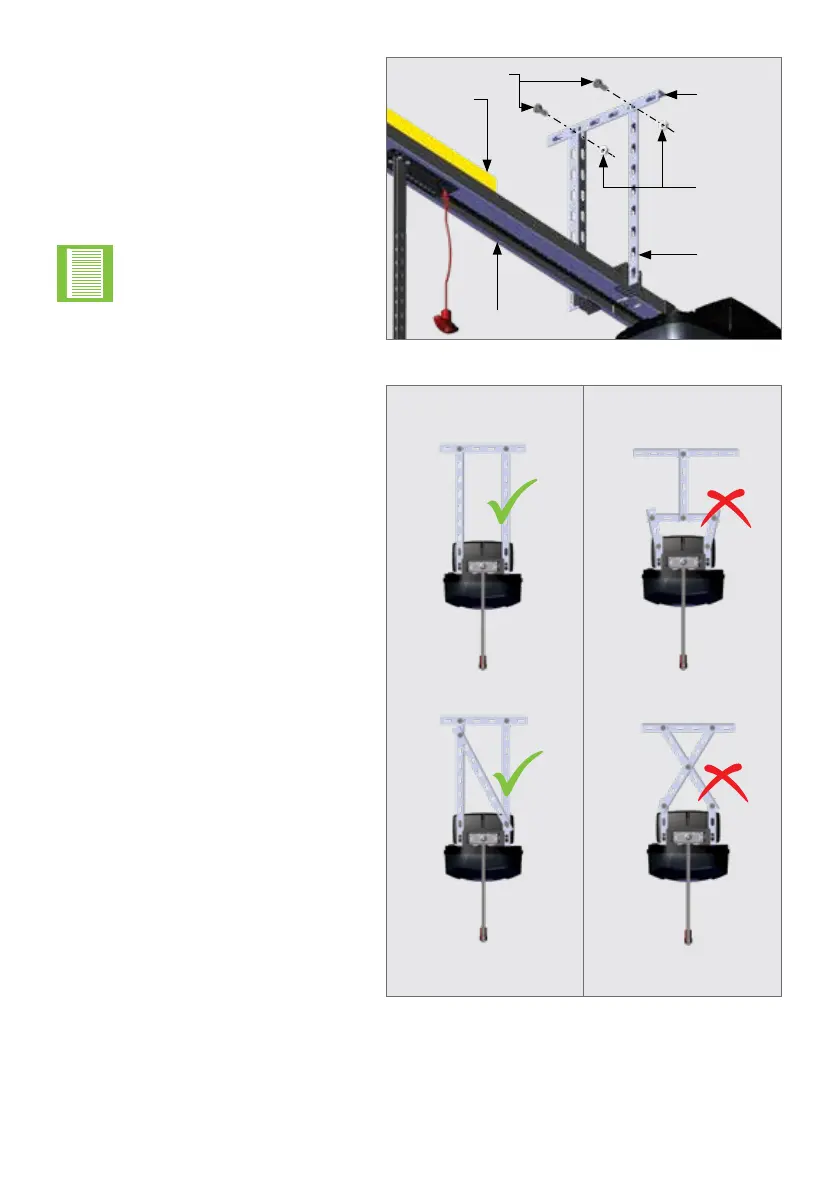

FIGURE 65
FIGURE 66
Correct and incorrect congurations
for mounting the SDO4 SMART to
the ceiling.
RECOMMENDED NOT RECOMMENDED
Align the holes of the punched angle
iron mounted to the ceiling, with
the holes on the punched angle iron
mounted to the drive rail hanger.
Secure it into position using two
supplied M8 ange bolts and nuts
with a 13mm socket.
Ensure that the SDO4
SMART control unit is in
line with the top edge of the
open garage door before
tightening the bolts in their
nal position.
OPERATOR INSTALLATION - TIP-UP DOORSSECTION 6
Spirit level
SDO4 SMART
M8 Flange bolts
M8 Flange
nuts
Punched
angle iron
Punched
angle iron
mounted
to ceiling
