page 39 www.centsys.com
FIGURE 70
FIGURE 71
FIGURE 72

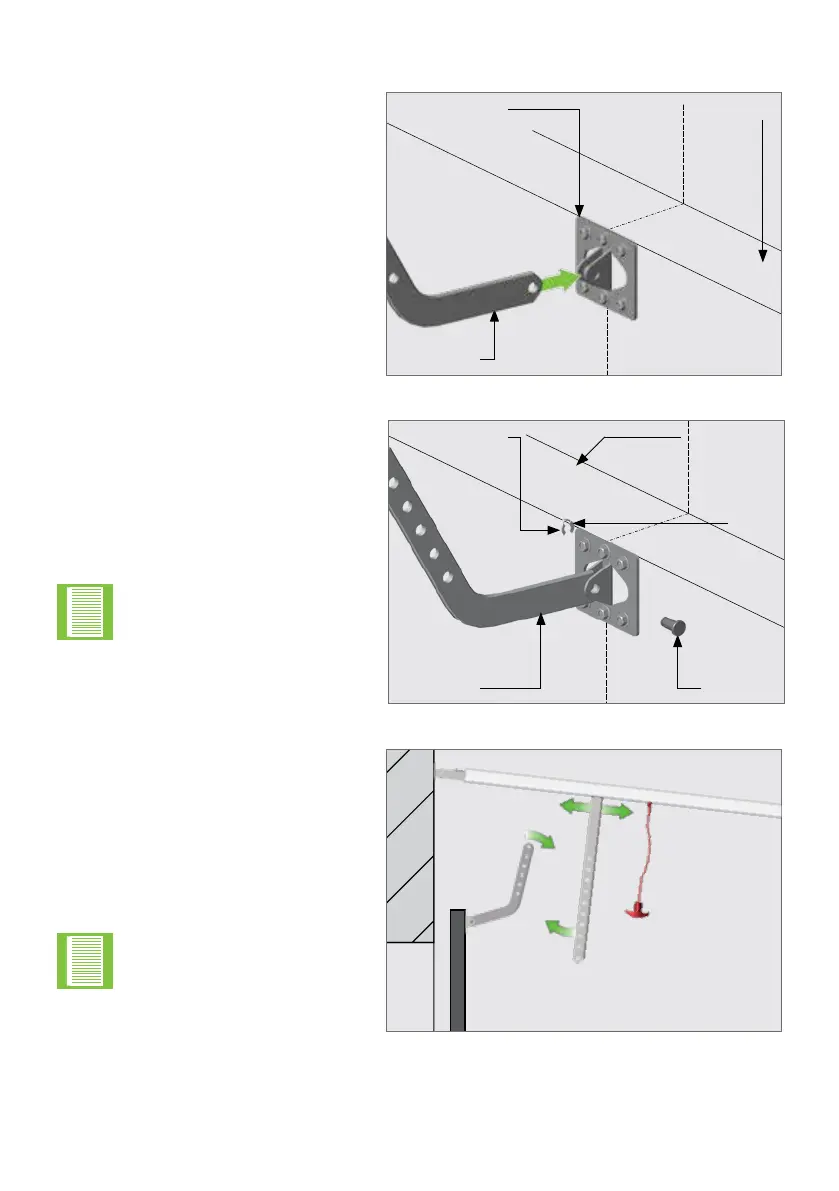

Slot the bent towing arm between
the two protruding tabs of the
towing bracket, and align the holes.
Note the orientation of the bent
towing arm.
6.2.2.5. Fitting the bent towing arm to the towing bracket and straight towing
arm.
Towing bracket
Towing bracket
Garage door
Garage door
Short
clevis pin
Circle
Clip
Bent
towing arm
Bent
towing arm
Slot the bent towing arm into the
straight towing arm, and align the
holes. If they do not align, move the
carriage up or down the drive rail in
order to align the holes of the bent
and straight towing arms.
Ensure that the two towing
arms overlap by at least
two holes. This will ensure a
strong join, and prevent the
arm from swiveling whilst
the motor is in operation.
Locate the short clevis pin through
the holes and secure it into position
with a supplied E-Clip on the other
end of the clevis pin.
Split Pins have also been
supplied should they be
preferred over the use of
the circle pin clips.
OPERATOR INSTALLATION - TIP-UP DOORSSECTION 6
