Condensing Pool Heater 9 14/11/06
Flue Examples
Flue Kit Part Codes
Type of Flue System
Kit Code Description Outdoor Kit Horizontal Terminal Vertical Terminal
MBHT Horizontal Wall Terminal n/a Yes n/a
MBHVE 1 metre Horizontal/Vertical Extension Pipe n/a Optional Optional
MBVT Vertical Roof Terminal n/a n/a Yes
MBOT Outdoor Terminal Yes n/a n/a
MB45DB 45 degree bend n/a Optional Optional
MB90DB 90 degree bend n/a Optional n/a

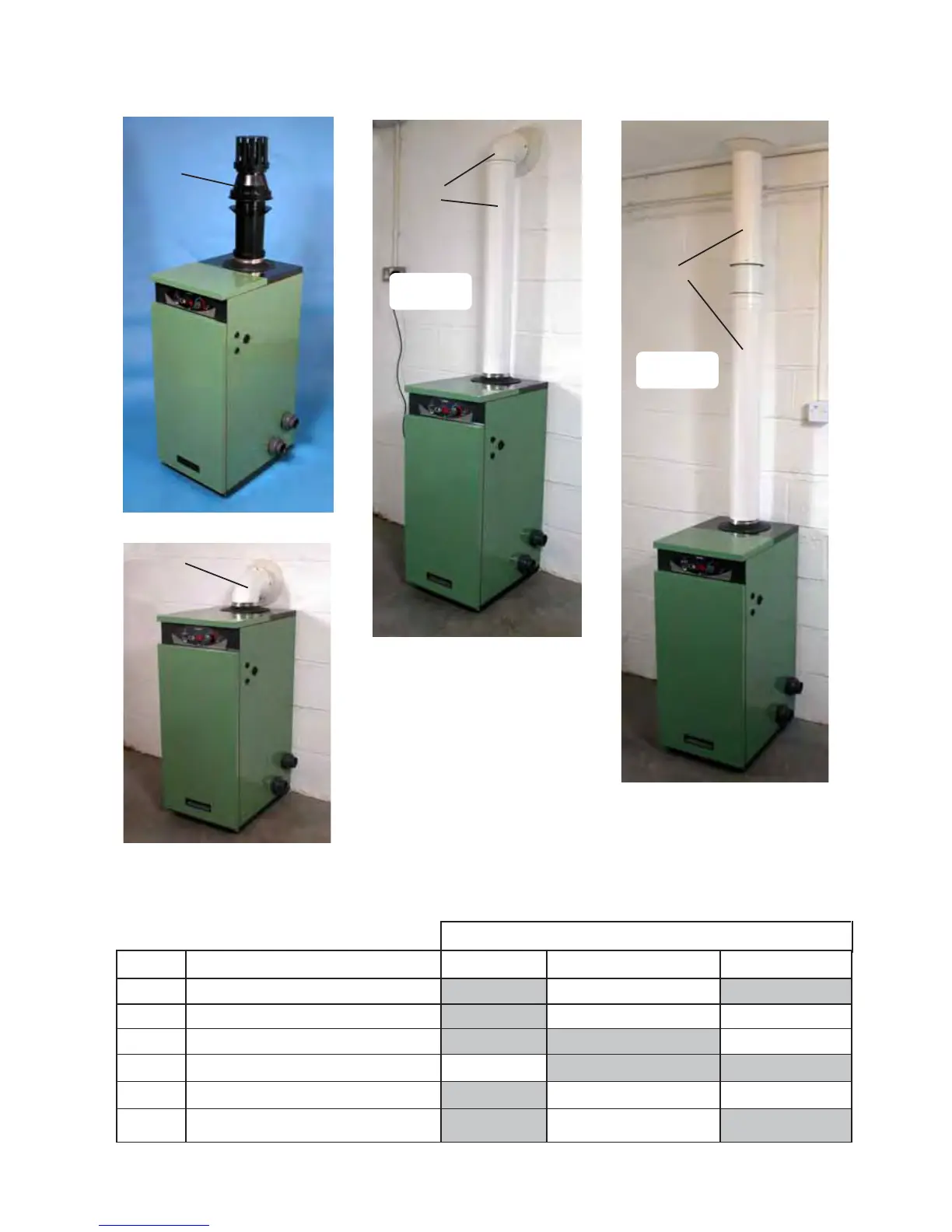

Outdoor Terminal
Extended Horizontal
Wall Terminal
Extended Vertical
Roof Terminal
Horizontal Wall Terminal
MBOT
MB90DB
MBHVE
MBHT
(not shown)
TO OFFSET
USE MB45DB
MB90DB
MBHT
(not shown)
MBVT
MBHVE
TO OFFSET
USE MB45DB
Fig.4.3
Fig.4.0
Fig.4.1
Fig.4.2
Determine the type of Flue system you require and
choose from the list of kits available below:
