REMOVAL • INSTALLATION
Removal procedure
1. Lift the battery cover
2. Disconnect the battery plug
3. Remove the footboard
4. Remove the 2 pedals [Point 1]
5. Drain out the hydraulic oil
6. Disconnect the hoses from the priority valve
7. Disconnect the inlet connection from the oil pump (tank pump) from the tank output hose (see
chapter 13)
8. Remove the hydraulic oil tank [Point 2]
9. Remove cables of the traction motor [Point 3]
10. Remove the 4 nuts of the pump motor [Point 4]

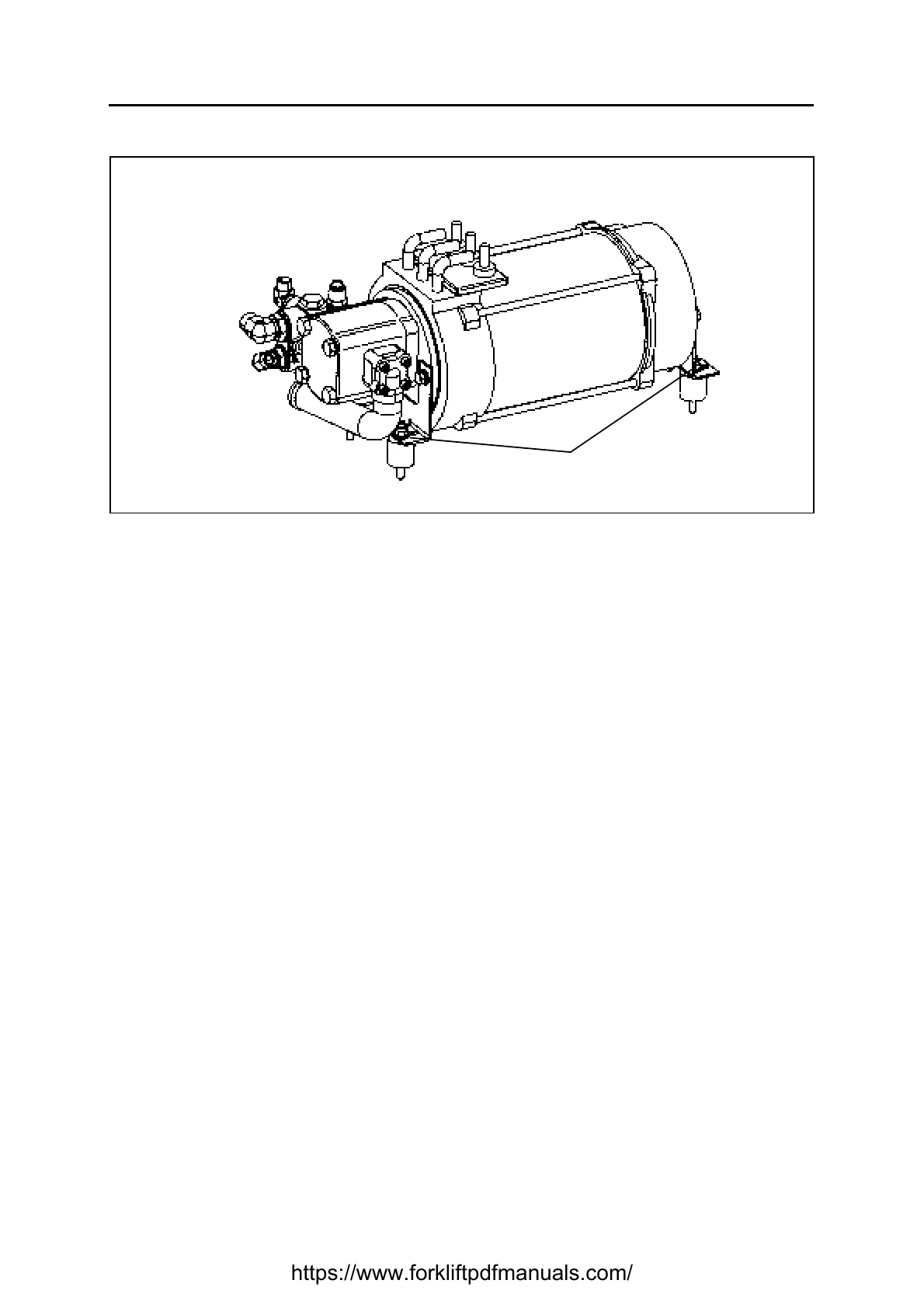

11. Connect a chain or belt to the motor [Point 5]
12. Remove the lifting motor
Installation procedure
The reassembly procedure is the reverse of the disassembly procedure.
