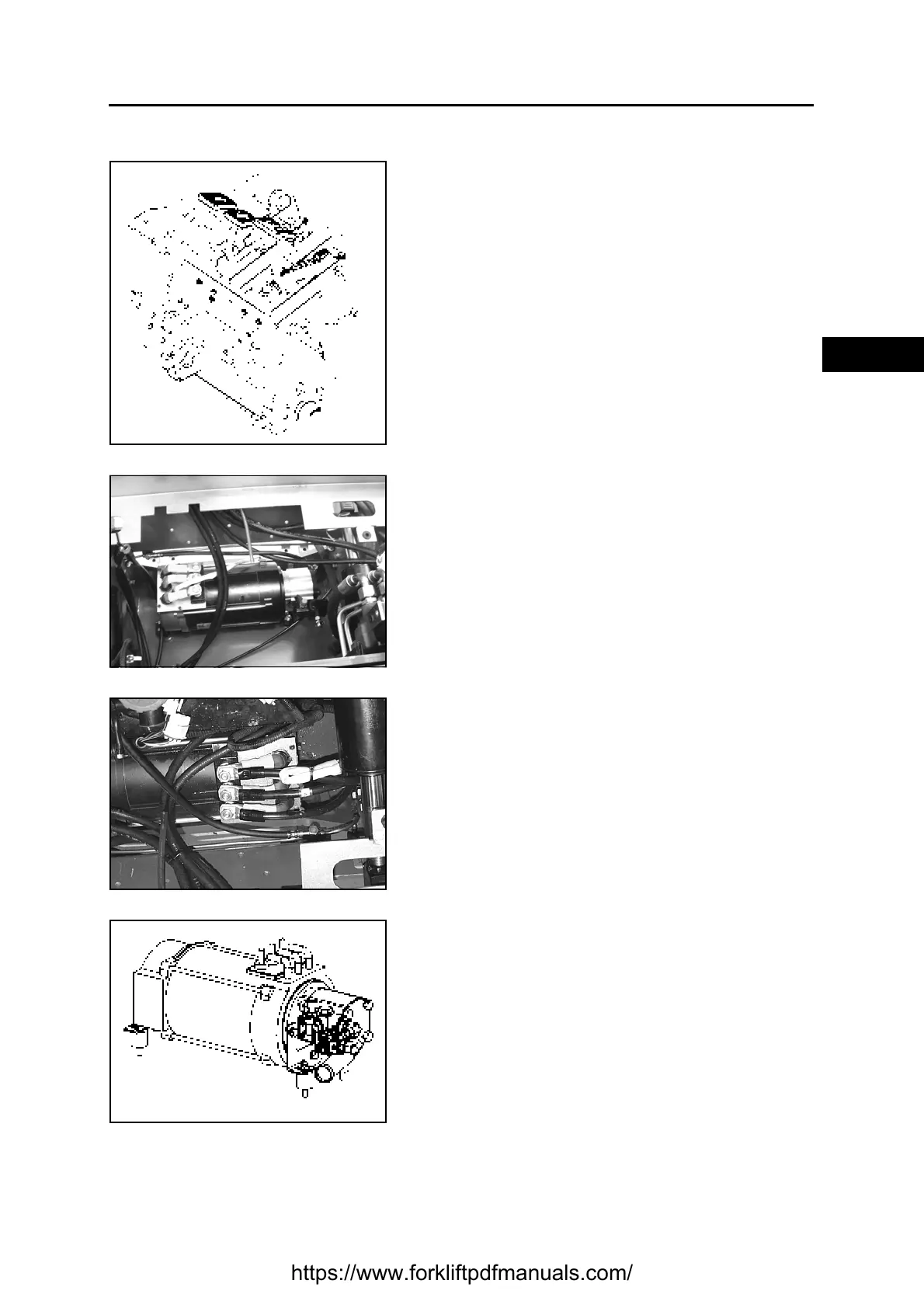

Point Operation
[Point 1]
Disassembly:
Disconnect the wirings of the two pedals.
Disconnect the brake hose of the brake pedal by
closing it to avoid the loosing of the brake oil. Remove
the 3 screws per pedal from the front of the frame.
Assembly:
After installation, tightening torque of the pedal bolts =
24 Nm
[Point 2]
Disassembly:
Remove the hydraulic oil tank by removing the 2 bolts
on the frame
[Point 3]
Disassembly:
Disconnect the 3 cables from the pump motor and the
wiring of the encoder sensor
Assembly:
After installation, tightening torque of the cables bolts =
15 Nm
[Point 4]
Disassembly:
Remove the 4 nuts from the fixing brackets of the
pump motor with the frame
Assembly:
After installation, tightening torque of the 4 fixing bolts
= 15 Nm
