CESAB B 200 - Page 236

5-20

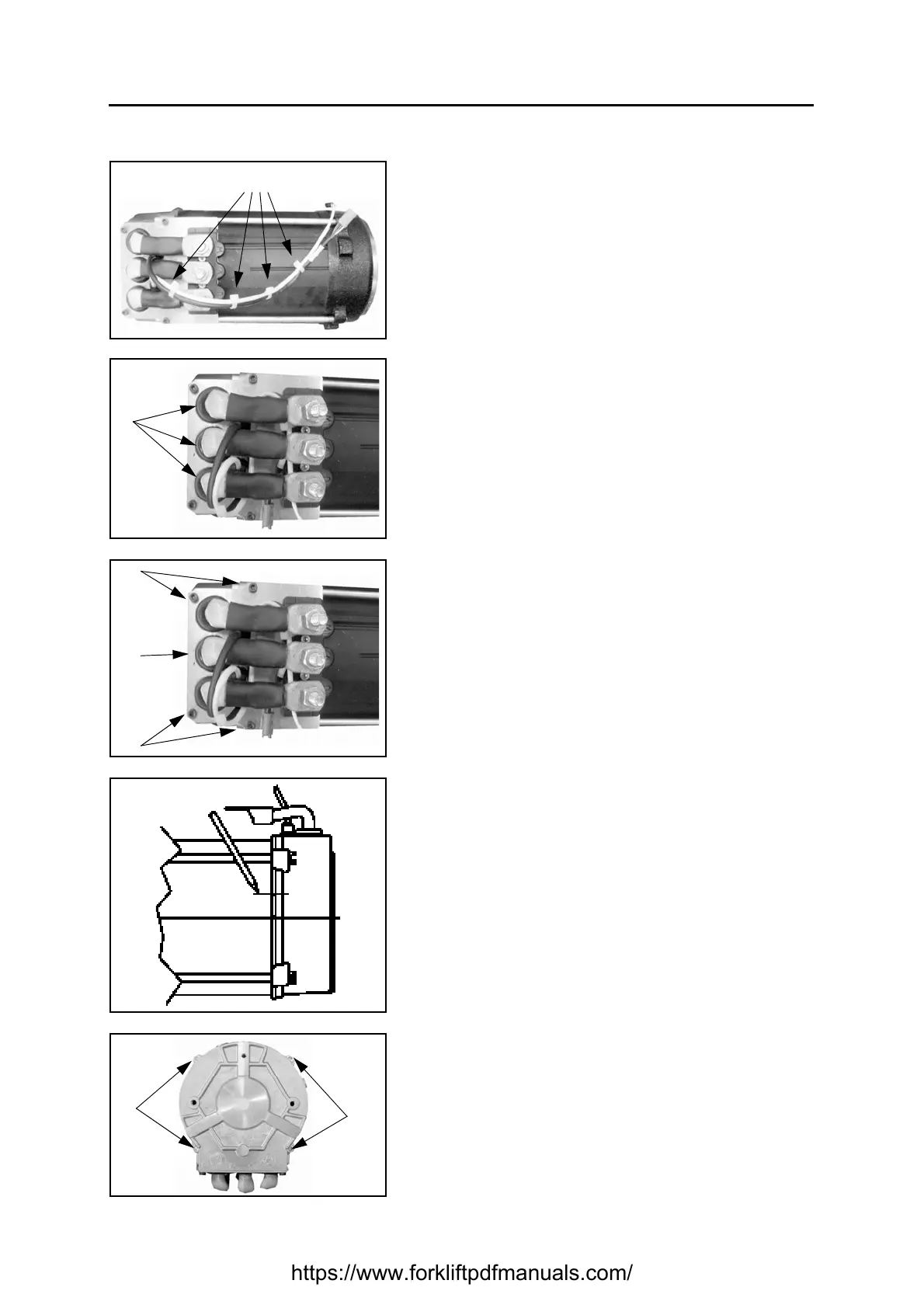

Point Operation
[Point 1]
Disassembly:
Cut the clamps A that fix togheter the temperature
sensor cables and the encoder
[Point 2]
Disassembly:
Press untill extract from their site the rubber seals that
protect the power cables B
[Point 3]
Disassembly:
Unscrew and remove the 4 screws C then remove the
metallic plate D
[Point 4]
Disassembly:
Note the position of the cover on the stator
[Point 5]
Disassembly:
Unscrew and remove the 4 screws E
A
B
C
C
D
E
E
