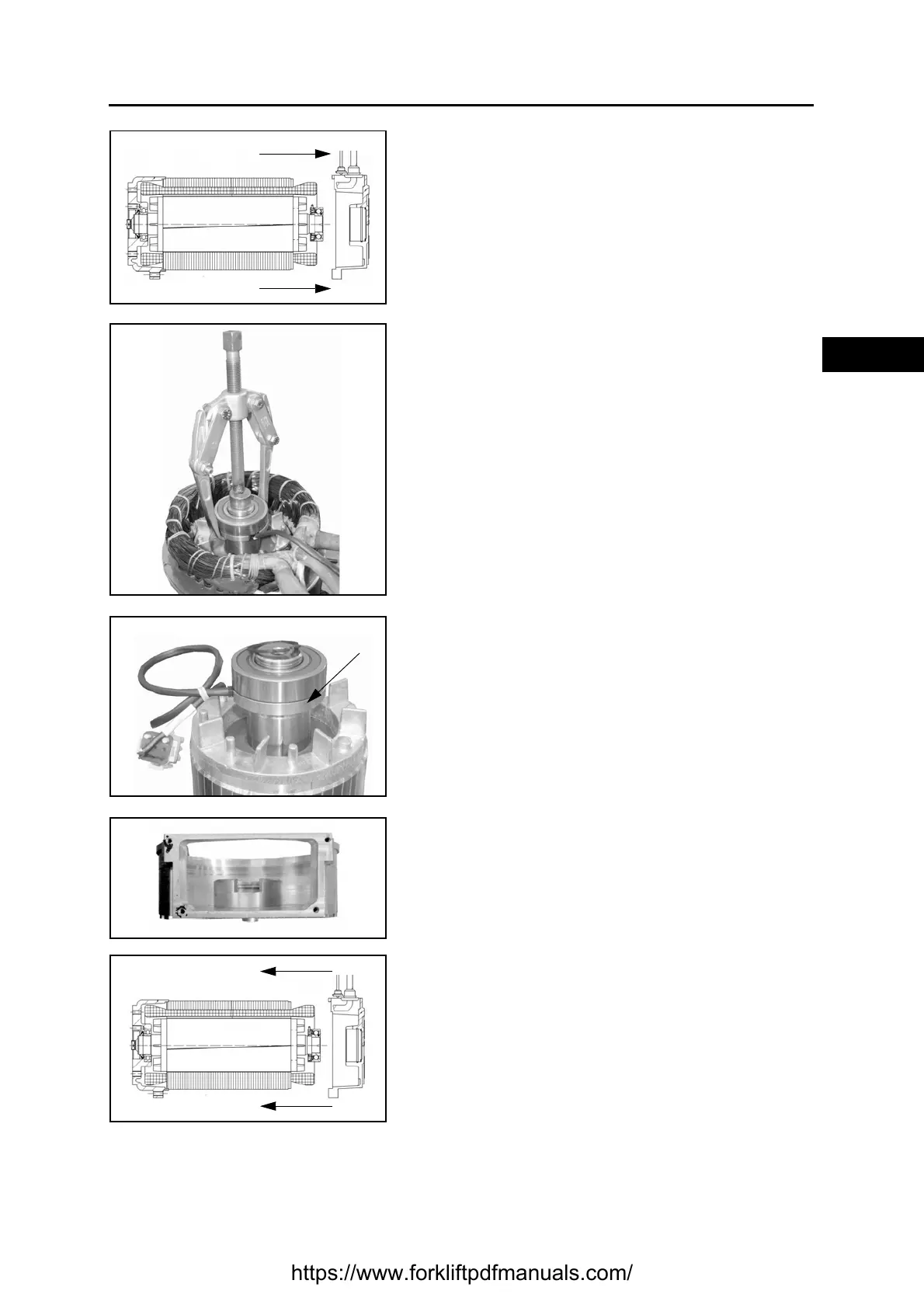

[Point 6]
Disassembly:
Remove the cover
[Point 7]
Disassembly:
Extract the encoder using the special extractor
[Point 8]
Assembly:
Insert the encoder on the motor axle with the part
relevant to the sensor F towards the rotor. Pay
attention not to damage the encoder then press
exclusively on the internal ring of the sphere ball
bearing that support the encoder
[Point 9]
Assembly:
Insert the cover on the motor paying attention that the
signs (removal procedure section 6) match; pay
attention to do not press the temperature sensor
cables and the encoder
