6-6

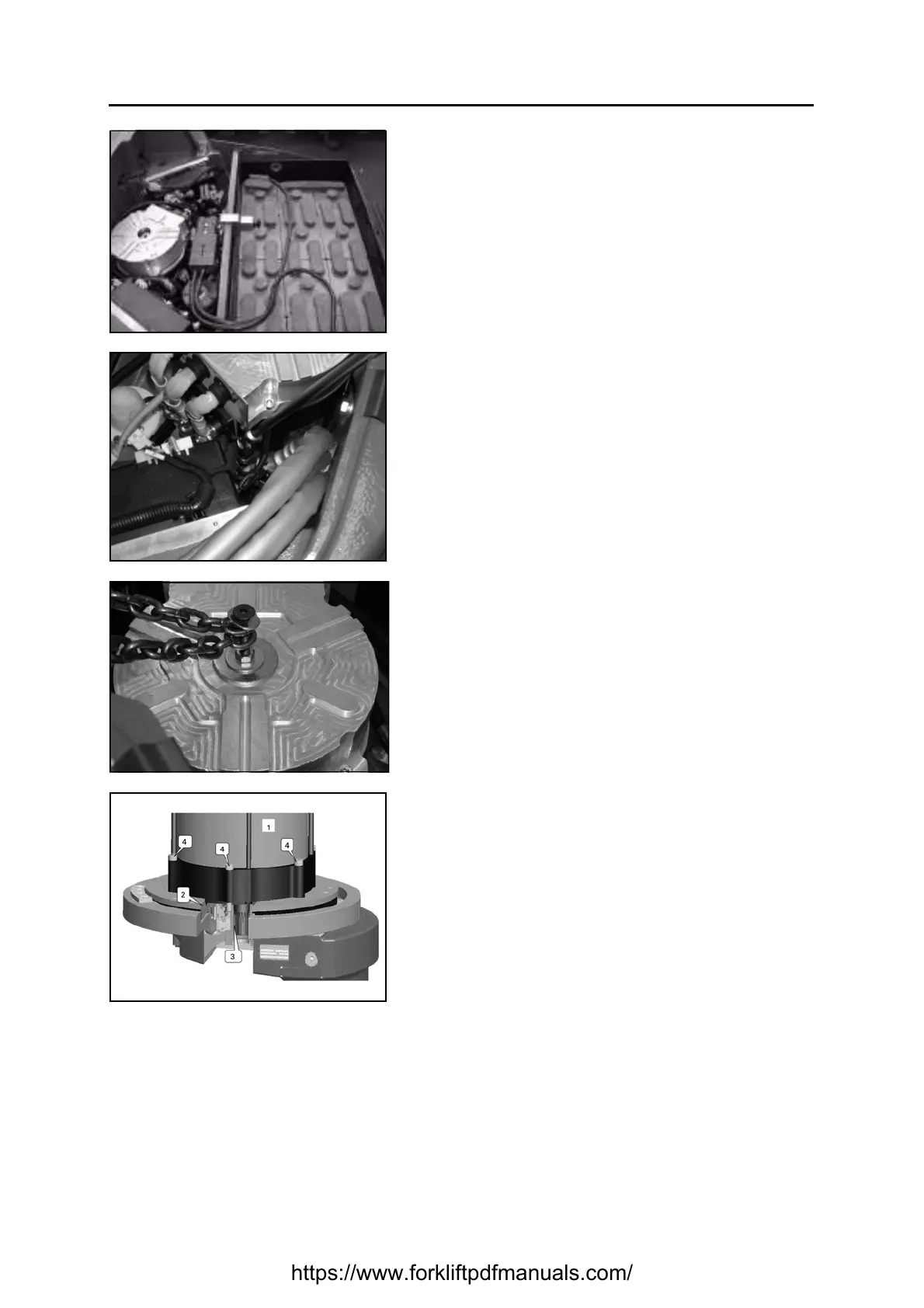

[Point 4]
Disassembly:
Remove the battery cover by removing the gas spring
and the 2 bolts on the OHG
[Point 5]
Disassembly:
Remove the power cables and the wiring of the
encoder sensor.
Screw out the 6 screws of the motor
Reassembly:
After installation, tightening torque of the 6 screws of
the motor = 40 Nm
[Point 6]
Disassembly:
Connect a chain or belt to the motor, as showed on the
picture, by a screw of M8 to the treaded hose on the
rotor of the motor.
Lift up the motor and put it in horizontal position or in
vertical position with a special support, as showed in
the picture, in order to avoid dangerous movement of
the rotor
Reassembly:
Insert carefully the drive shaft of electric motor (3) into
the base (2) rotating the motor (1) to make easier the
assembly on the groove of hub
