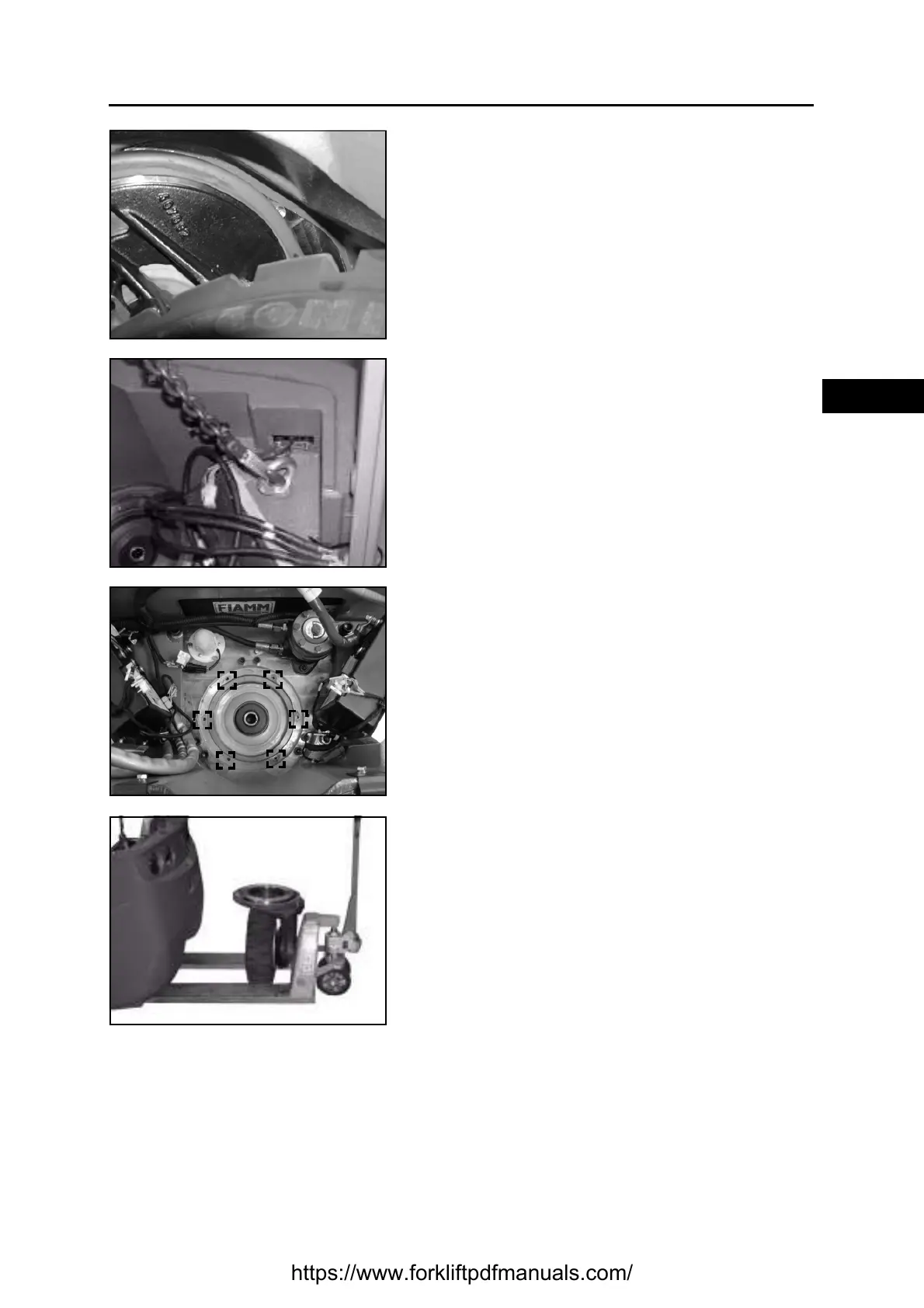

[Point 7]
Disassembly:
Remove the 4 screws of the plastic bottom cover of the
drive unit
[Point 8]
Disassembly:
Jack up the back of the vehicle from the counterweight
by using a chain (required lifting measure about 400
mm)
[Point 9]
Disassembly:
Remove the 6 screws of the drive unit
Reassembly:
After installation, tightening torque of the 6 screws of
the drive unit = 79 Nm
[Point 10]
Disassembly:
Extract the complete drive unit by using the hand-
pallet
