11-36
Point Operation

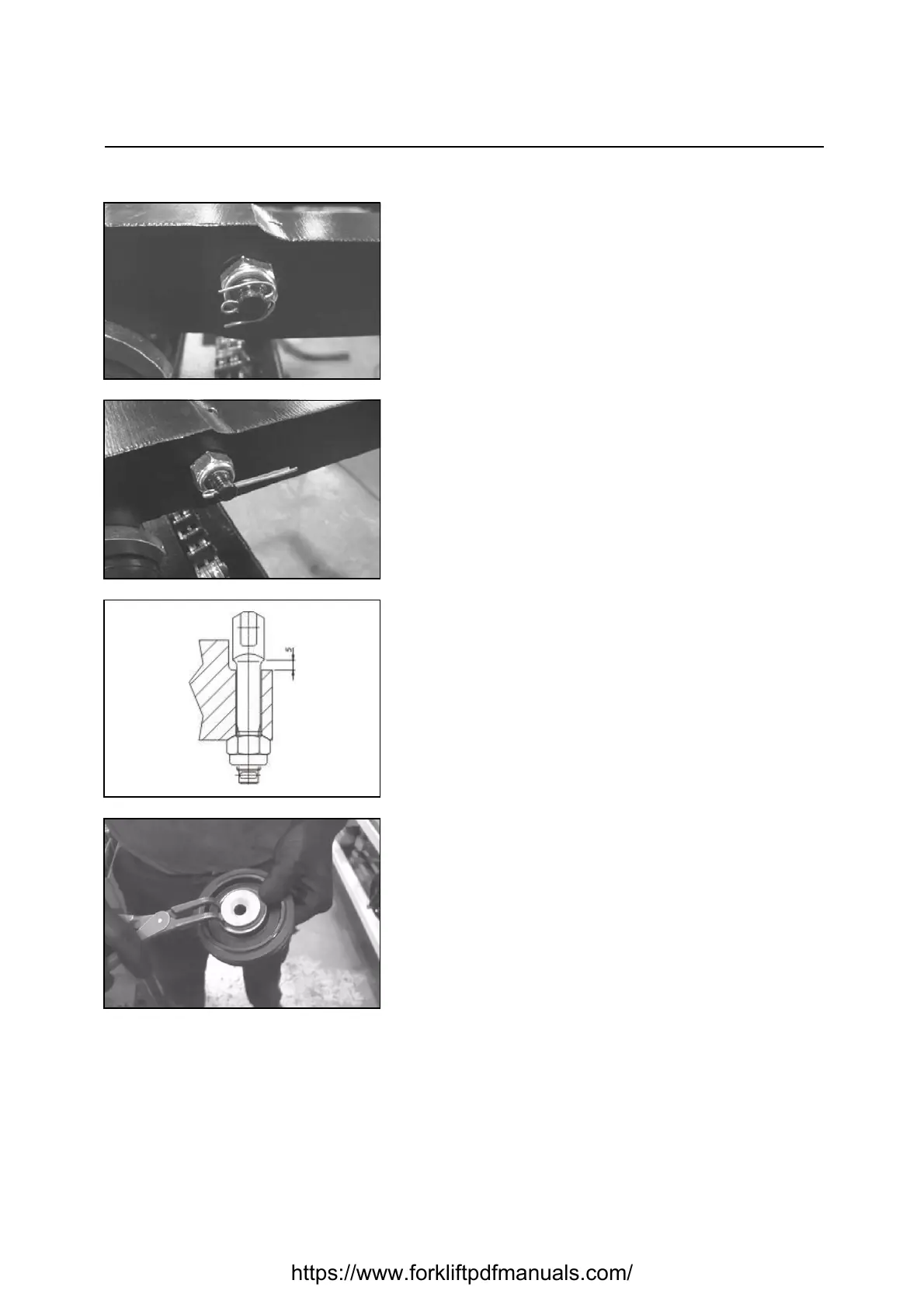

[Point 1]
Disassembly:
Straighten the fins
Disassembly:
Slide out the split pin
[Point 2]
Installation:
Comply with the sizing indicated in the figure to the side
(image refers to fixed mast)
Chain must be tensioned with the mobile mast open
from the fixed mast by 5 mm (check that there is no
interference on the limit switch when the mast is at
maximum height)
[Point 3]
Disassembly:
Remove the elastic ring
