[Point 6]
Installation:

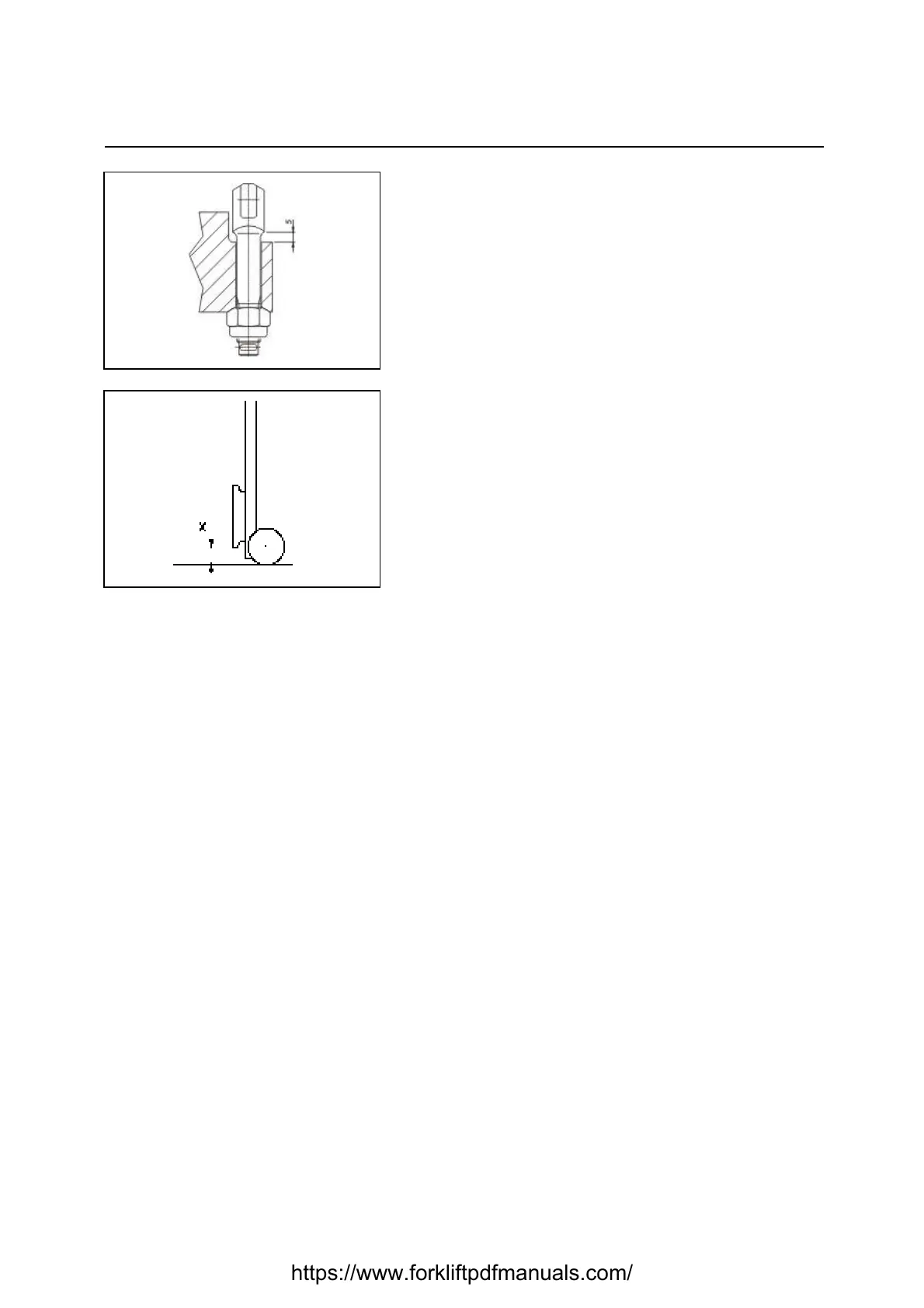

Comply with the minimum sizing indicated in the figure
to the side (image refers to primary cylinder)
Chain must be tensioned with the mobile mast open
from the fixed mast by 5 mm (check that there is no
interference on the limit switch when the mast is at
maximum height)
Inspection:
Remove the forks and check that the X height complies
with the ISO tables shown in the MAST CHAINS
section; if not, turn the tension rods on the carriage, and
if required those on the primary cylinders.
Check that there is no interference with the limit switch
when the mast is at maximum height
