CESAB B 200 - ROLLER PAD INSPECTIONS • ADJUSTMENTS

11-39
0
1
2
3
4
5
6
7
8
9
11
11
11
14
14
15
16
16
18
ROLLER PAD
INSPECTIONS • ADJUSTMENTS
Long life roller bearing:
Check:

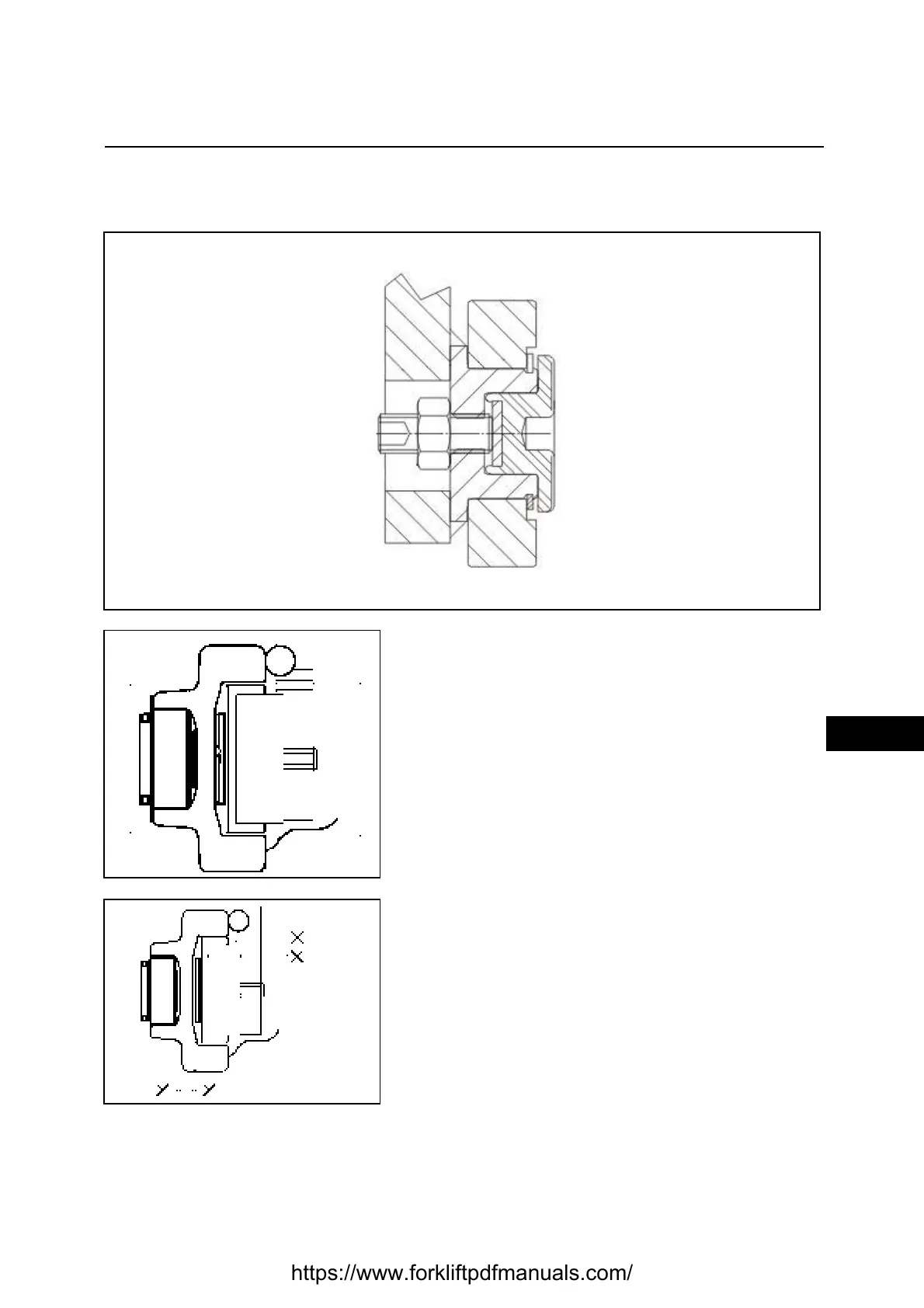

The clearance between roller pad and inner mast profile
Y.
Standard clearance: 0.2 - 0.4 mm
81,8 mm - 0,1
82 mm - 0.1
