Adjustment:

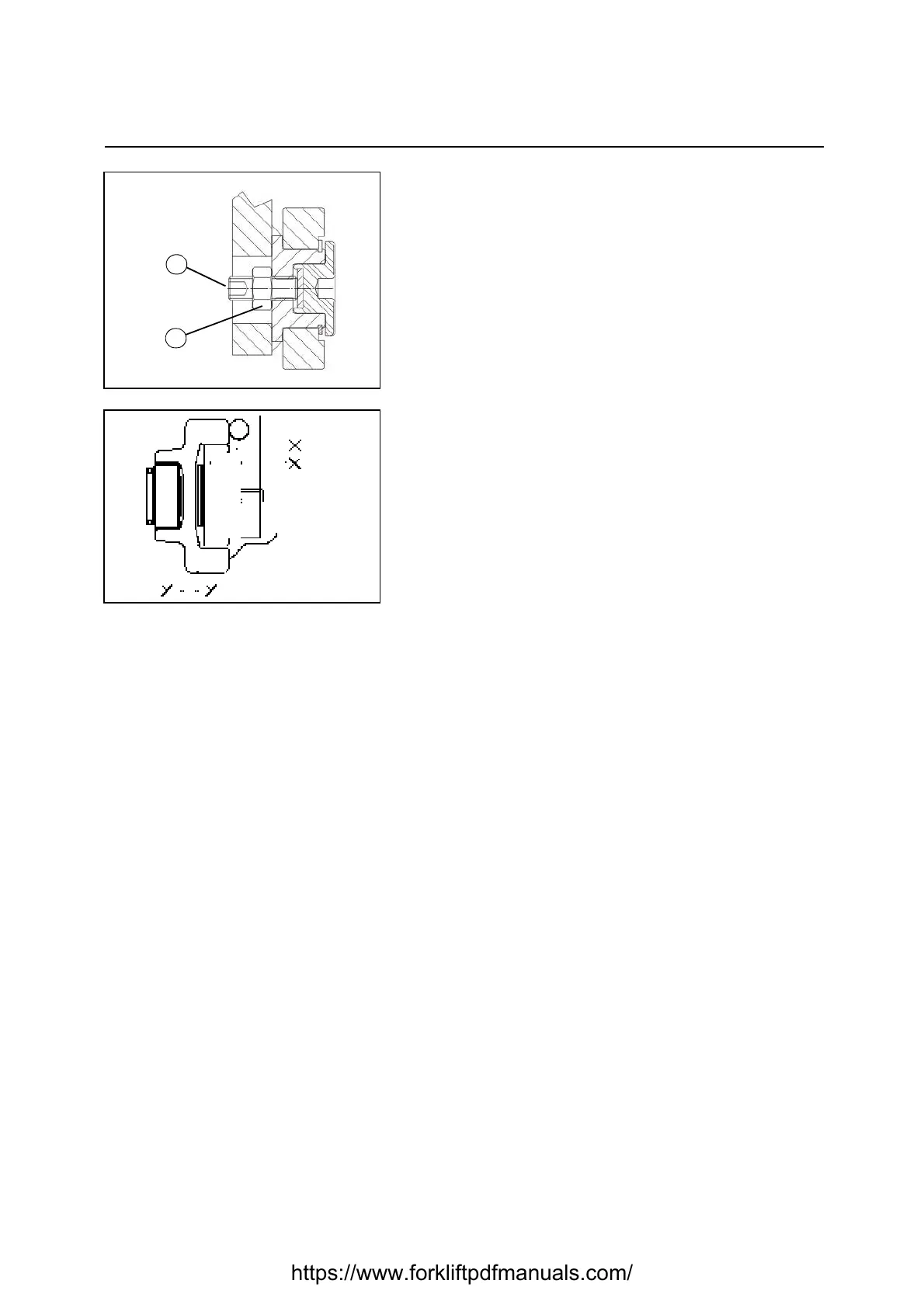

Adjust by turning the regulating screw (A) shown in the
image and lock in place with the nut (B)
Check:
The clearance (X) between roller pad and inner mast
profile.
Standard clearance: X = 0.2 - 0.4 mm
Adjustment:
It is not possible to adjust this clearance (X = 0.2 -
0.4mm). In order to have the correct clearance it is
necessary to replace the roller
